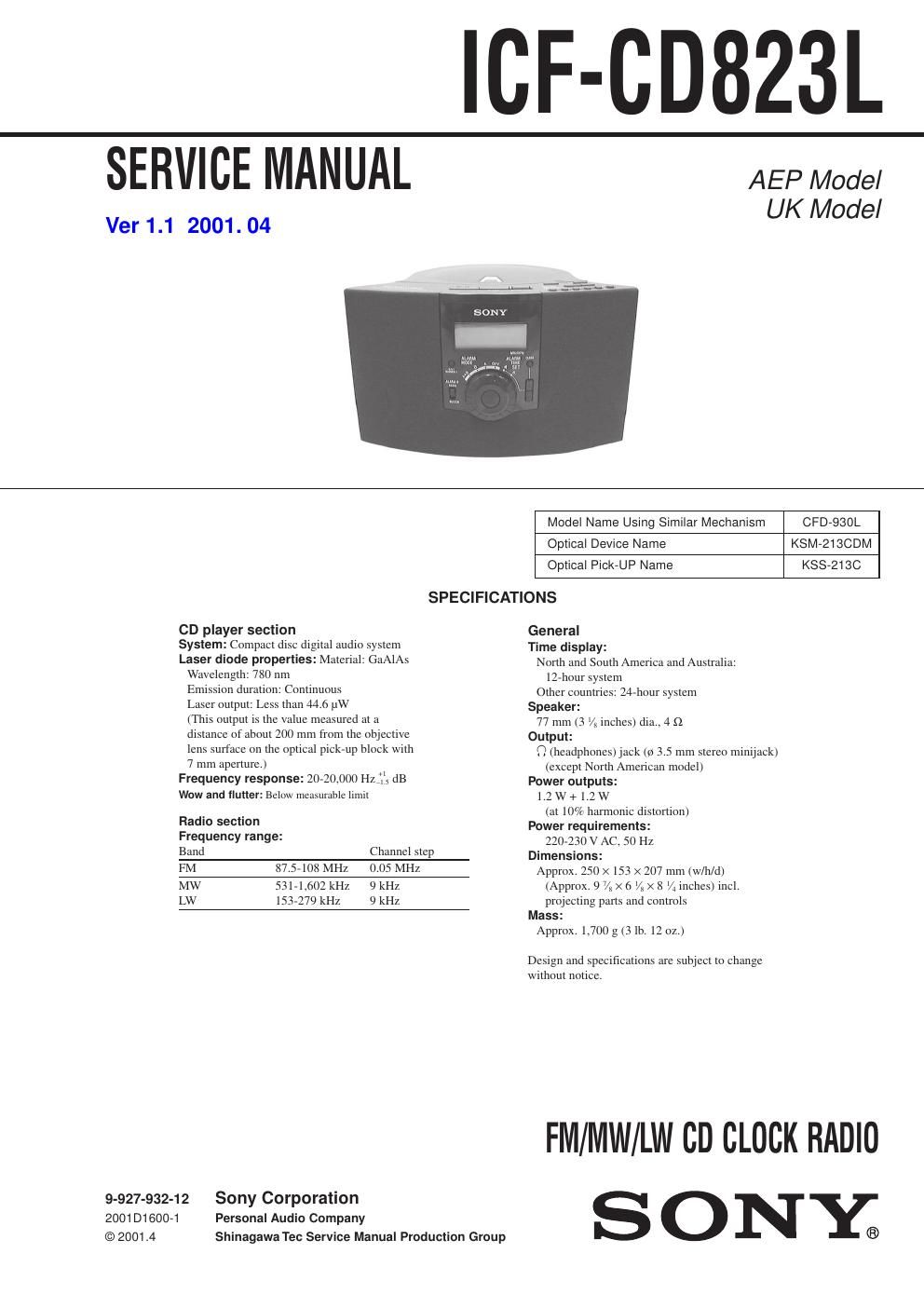

Sony icf cd 823 l service manual

Page 2

- 3 - The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens.NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. This Compact Disc player is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT label is located on the bottom exterior. CHUCK PLATE JIG ON REPAIRING On repairing CD section, playing a disc without the CD lid, use Chuck Plate Jig. -Code number of Chuck Plate Jig: X-4918-255-1 LASER DIODE AND FOCUS SEARCH OPERATION CHECK 1. Open the CD lid. 2. Turn on S501 as following figure. 3. Confirm that the laser diode emission while observing the objecting lens. When there is no emission, Auto Power Control circuit or Optical Pick-up is broken. Objective lens moves up and down once for the focus search. Insert a precision screwdriver and push S501. laser diode emission
