Sony icf cd 820 l service manual

This is the 33 pages manual for sony icf cd 820 l service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 33
sony icf cd 820 l service manual

Extracted text from sony icf cd 820 l service manual (Ocr-read)

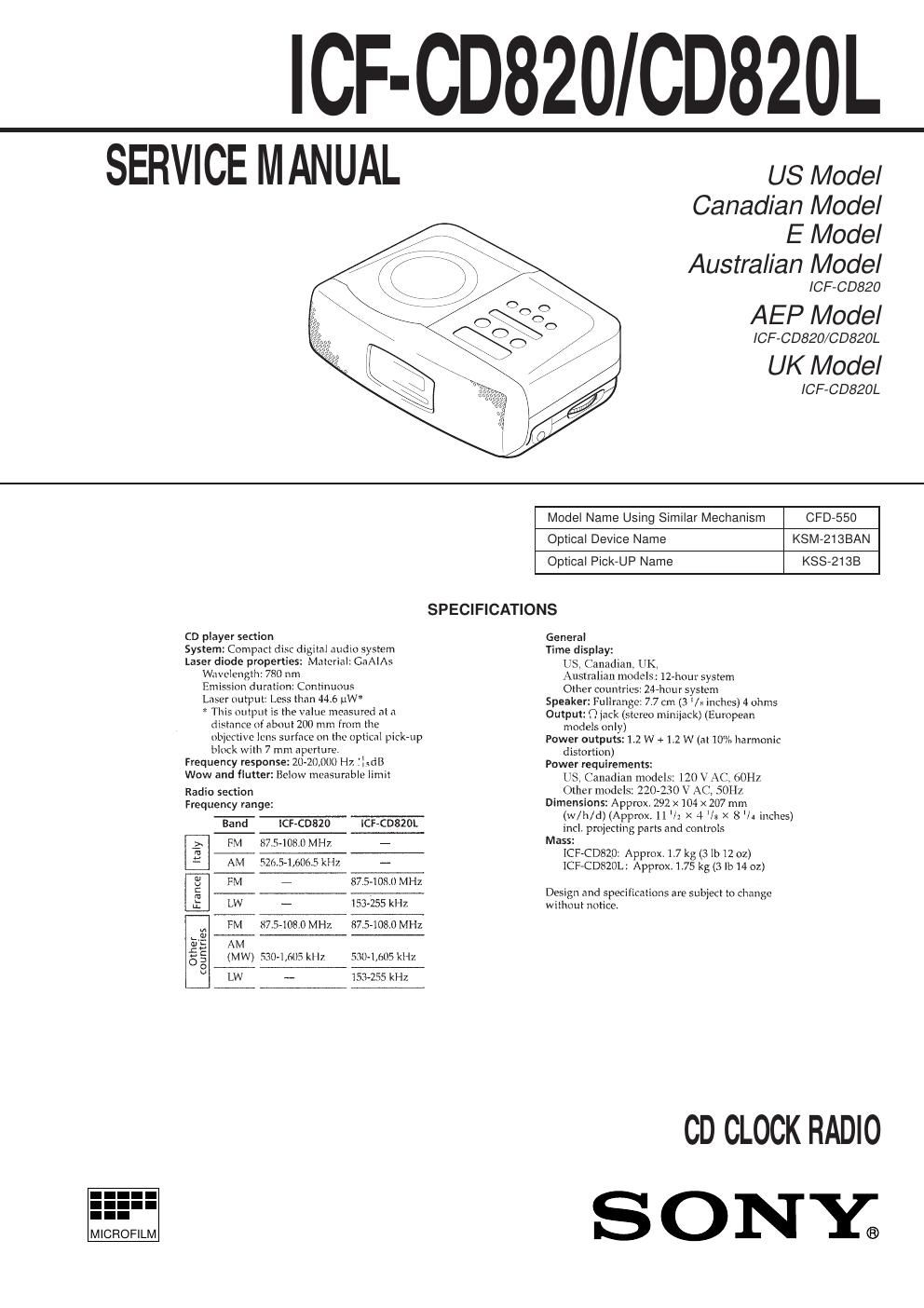

Page 1

Ð 2 Ð TABLE OF CONTENTS 1. SERVICING NOTES ............................................... 2 2. GENERAL ................................................................. 4 3. DISASSEMBLY ......................................................... 6 4. ELECTRICAL ADJUSTMENTS Tuner Section .................................................................. 9 CD Section ...................................................................... 11 5. DIAGRAMS 5-1. Printed Wiring Boards .................................................... 15 5-2. Schematic Diagram ......................................................... 19 5-3. IC Pin Function Description ........................................... 29 6. EXPLODED VIEWS ................................................ 31 7. ELECTRICAL PARTS LIST ............................... 34 ATTENTION AU COMPOSANT AYANT RAPPORT Ë LA SƒCURITƒ! LES COMPOSANTS IDENTIFIƒS PAR UNE MARQUE ! SUR LES DIAGRAMMES SCHƒMATIQUES ET LA LISTE DES PIéCES SONT CRITIQUES POUR LA SƒCURITƒ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIéCES SONY DONT LES NUMƒROS SONT DONNƒS DANS CE MANUEL OU DANS LES SUPPLƒMENTS PUBLIƒS PAR SONY.SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. SECTION 1 SERVICING NOTES MODEL IDENTIFICATION ¥ HOW TO CHANGED THE CERAMIC FILTERS This model is used two ceramic filters of CF2, CF3. You must use same type of color marked ceramic filters in order to meet same specifications. Therefore, the ceramic filter must change two pieces together since it's supply two pieces in one package as a spare parts. markcenter frequency red 10.70 MHz blue 10.67 MHz orange 10.73 MHz black 10.64 MHz white 10.76 MHz mark CF2 CF 3 mark S â MODEL NO. MADE IN MALAYSIA ICF-CD820/CD820L US, Canadian models: AC: 120 V 60 Hz 15 W Other models: AC: 220 – 230 V 50 Hz 15 W

Page 2
