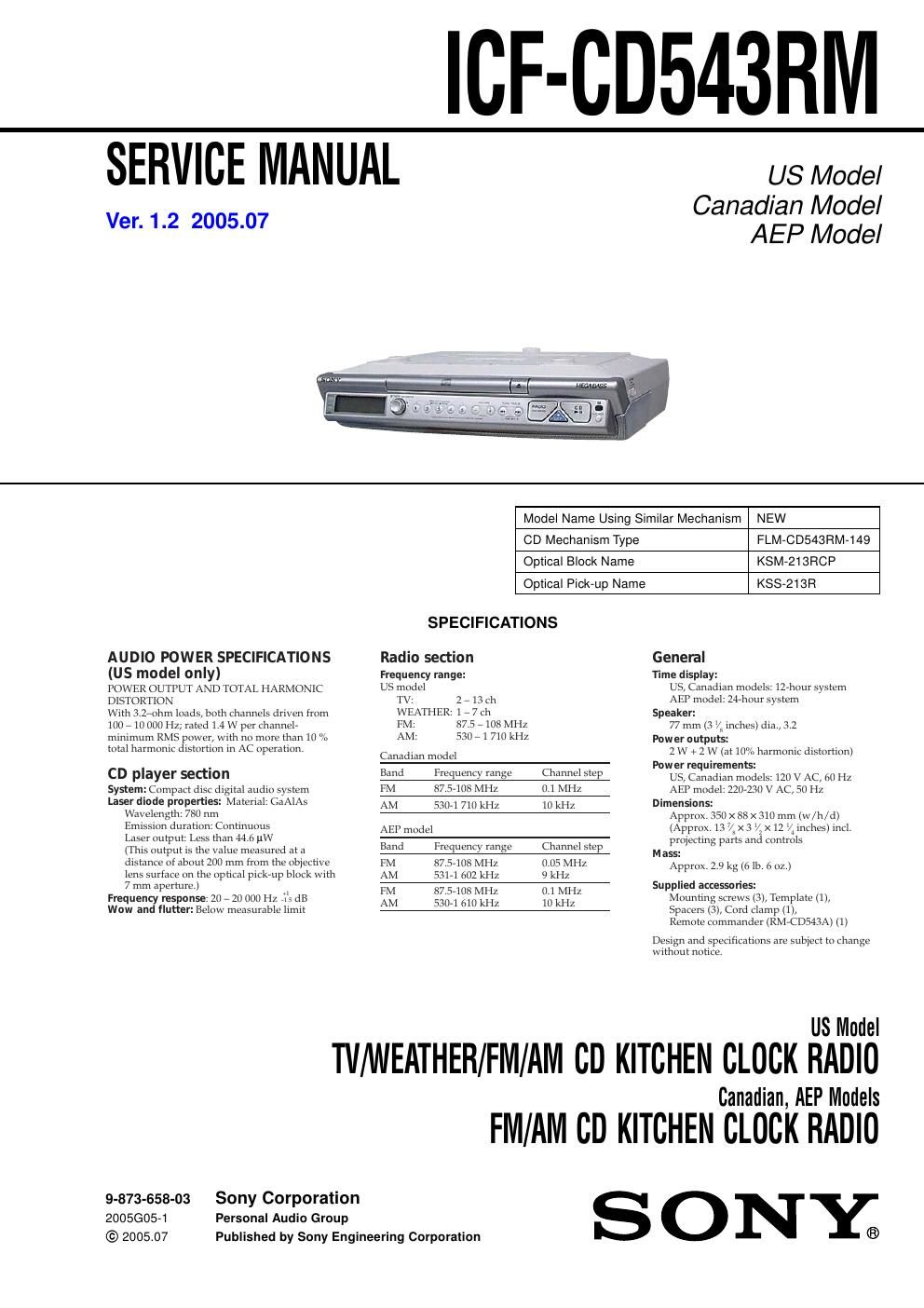

Page 1

ICF-CD543RIVI

SERVICE MANUAL us Model

Canadian Model

Ver. 1.2 2005.07 AEP Model

Model Name Using Similar Mechanism NEW
CD Mechanism Type FLM-CD543RM-149
Optical Block Name KSM-213RCP
Optical Pick-up Name KSS-213R
SPECIFICATIONS
AUDIO POWER SPECIFICATIONS Radio section Geneml
(US model only) Frequency range: Time display:
130ng OUTPUT AND TOTAL 1 [ARMONIC US model US, anadian models. 127hour system
DISTORTION TV 2 7 13 ch AEP model. 247hour system
With 3 ZmlIm loads, both channels driven from WEATHER: 1 s 7 Ch Speaker:
100 710 000 11:, rated 1. W per channel7 FM. 87.5 7108 MHZ 77 mm (3 7; inches) dia, 3.2
minimum RMS power, with no more than 10 AM. 530 7 1 710 kHz power outputs:
total harmonic distortion in AC operation. Canadian model Po 2 w + 2 w (M10: harmonic diemmm)
_ -_ we! requIremen :
CD player sectIon 3 Wm-CY "86 mm P US, Canadian models. 120 v AC, on 112
System: Compact disc digital audio system FM 87.57108 MHZ 0 1 MHZ AEP model. 2207230 v AC, 50 Hz
Laser diode properties: Material. GaAlAs AM 530,1 710 kHz 10 kHz Dimensions;
Wavelength. 789 nm , - Approx. 1 '0 >< 88 x 310 mm (w/h/d)
Emission duration Continuous AEP made] (Approx. 13 74 x 3 '4 x 12 4 inches) incl.
Laser output. Less than 44 6 1th - projecting parts and controls
(This output is the value measured at a W Mass:
distance of about 200 mm trom the objective FM 87.57108 Mllz 0 05 MI 12 APPmX- z 9 kg ((7 1b_ 5 OZ )
lens surface on the optical picleup block wrth AM 53171 602 kllz 9 kl 12
7 mm aperture.) .7 . . Supplied accessories:
Frequency response: 20 7 20000112 .12 dB FM 87' 108 will 0 1 MI 12 Mounting screws (3), Template (1),
, AM 53071 610 k] [2 101412
Wow and flutter: Below measurable limit - Spacers (3), Cord clamp (1),

Remote commander (RM7CD543A) (1)

Design and specifications are subject to change
without notice

US Model

TII/WEATHER/FM/AM CD KITCHEN CLOCK RADIO

Canadian, AEP Models

FM/AM CD KITCHEN CLOCK RADIO
9-873-658-03 Sony Corporation S O N Y
2005G05-1 Personal Audio Group
© 2005.07 Published by Sony Engineering Corporation ®

Page 2

ICF-CD543RM

CLASS 1 LASER PRODUCT
LUOKAN 1 LASERLAITE

KLASS 1 LASERAPPARAT

This Compact Disc player is classified
as a CLASS 1 LASER product.

The CLASS 1 LASER PRODUCT label
is located on the top exterior.

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL T0 SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.

Notes on chip component replacement

' Never reuse a disconnected chip component.

Notice that the minus side ofa tantalum capacitor may be dame
aged by heat.

SAFETY CHECK-OUT

After correcting the original service problem, perform the follow-
ing safety check before releasing the set to the customer:

Check the antenna terminals, metal trim, metallized knobs,
screws, and all other exposed metal parts for AC leakage.

Check leakage as described below.

LEAKAGE TEST

The AC leakage from any exposed metal part to earth ground and

from all exposed metal parts to any exposed metal part having a

return to ch s, must not exceed 0.5 mA (500 microamperes).

Leakage current can be measured by any one of three methods.

1. A commercial leakage tester, such as the Simpson 229 or RCA
WT7540A. Follow the ntanufacturers instructions to use these
instruments.

2. A battery»operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.

3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The limit indica-
tion is 0.75 V, so analog meters must have an accurate low-
voltage scale. The Simpson 250 and Sanwa SH-63Tid are ex-
amples of a passive VOM that is suitable. Nearly all battery
operated digital multimeters that have a 2 V AC range are suit-
able. (See Fig. A)

To Exposed Metal
Parts on Set

A C
/ voltmeter
(0.75 V)

0.15ttF g 1.5M!

_7_ Earth Ground
Fig. A. Using an AC voltmeter to check AC leakage.

CAUTION

Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous ra-
diation exposure.

About CD-RS/CD-RWS

This unit is compatible with CD-Rs/CD-RWs hut
playback capability may vary depending on the
quality of the disc/ the recording device and
application software.

ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!

LES COMPOSANTS IDENTIFIES PAR UNE MARQUE A
sun LES DIAGRAMMES SCHEMATIQUES ET LA LISTE
DES PIECES SONT CRITIQUES Poun LA SECURITE
DE FONCTIONNEMENT. NE REMPLACER CES COM-
POSANTS QUE PAR DES PIECES S0Nv DONT LES
NUMEROS SONT DONNES DANS CE MANUEL ou
DANS LES SUPPLEMENTS PUBLIES PAR SONY.
