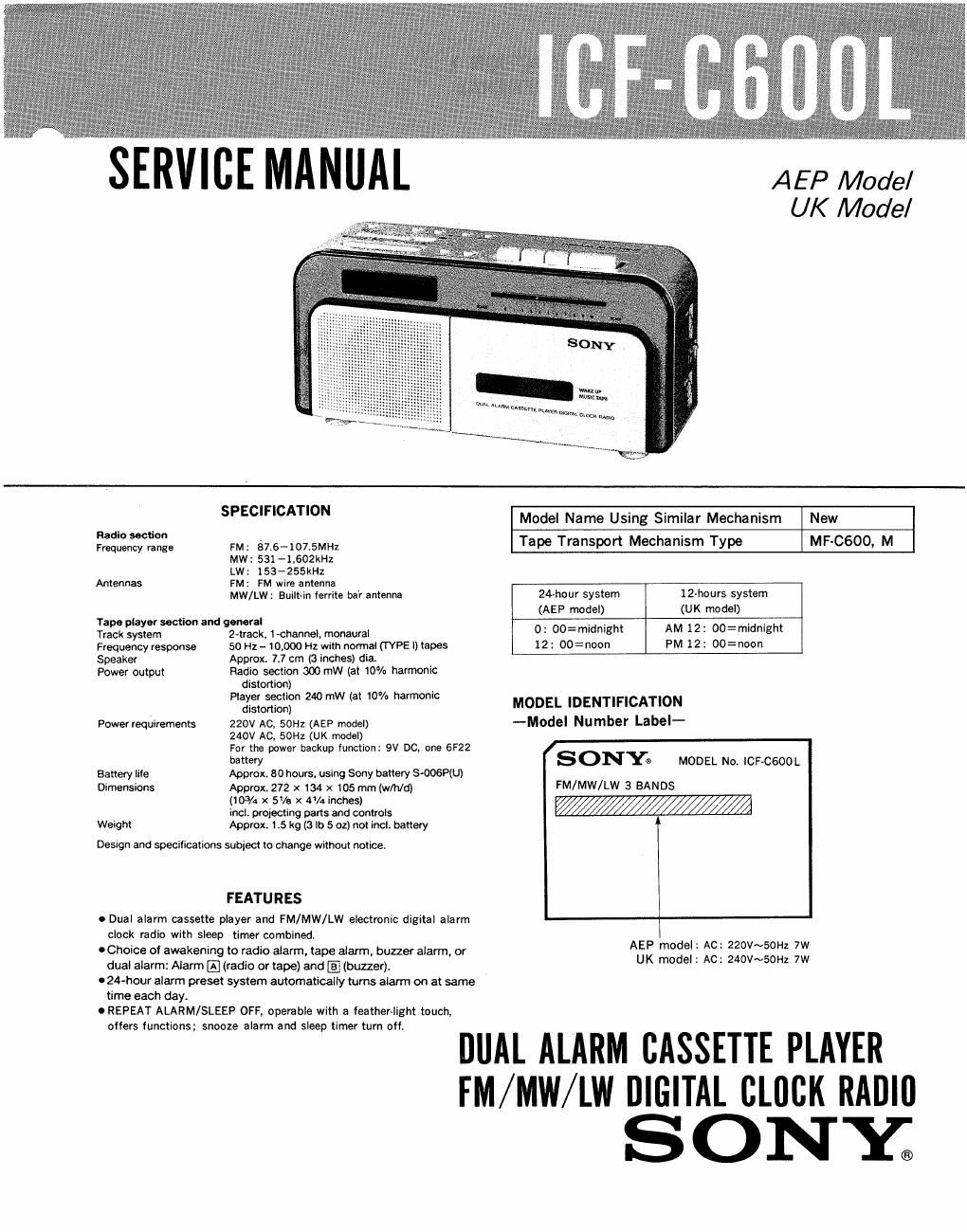

SERVICE MANUAL

AEP Model
UK Model

SONY

Mix in
Mum...

SPECIFICATION

Radio section _
Frequency range FM: 87.6-107.5MHz
MW: 531-1,602kHz
LW: 153-255kHz
Antennas FM: FM wire antenna
MW/LW: Built-in territe bar antenna

Tape player section and general

Track system 2-track, 1-channel. monaural
Frequency response 50 Hz - 10,000 Hz with normal (TV PE I) tapes
Speaker Approx. 7.7 cm (3 inches) dia,
Power output Radio section 300 mw (at 10% harmonic
distortion)
Player section 240 mW (at 10% harmonic
distortion)
Power requirements 220V AC. 50Hz (AEF model)

240V AC, SOHZ (UK model)
For the power backup function: 9V DC, one 6F22

battery
Battery lite Approx. 80 hours, using Sony battery S-OOGP(U)
Dimensions Approx. 272 x 134 x 105 mm (w/h/o)

(103/4 X 5'/s X 4V4 inches)
inclt projecting parts and controls
Weight Approx. 1.5 kg (3 lb 5 oz) not incl. battery

Design and specifications subject to change without notice.

FEATURES

0 Dual alarm cassette player and FM/MW/LW electronic digital alarm
clock mdio with sleep timer combined.

ochoice of awakening to radio alarm, tape alarm, buzzer alarm, or
dual alarm: Alarm (radio or tape) and IE (buzzer).

0 24-hour alarm preset system automatically turns alarm on at same

time each day.
0 REPEAT ALARM/SLEEP OFF, operable with a feathervlight touch,
otters functions; snooze alarm and sleep timer turn oft

Model Name Using Similar Mechanism New
Tape Transport Mechanism Type MF-CGOO, M
24-hour system 12-hours system
(AEP model) (UK model)
0: 00=midnight AM 12: 00=midnight
12: 00=noon PM 12: 00=noon

MODEL IDENTIFICATION
-Model Number Label-

SONYo MODEL Nor ICF-CGOOL
FM/MW/LW 3 BANDS

W/l/l/l/ll/l/l/fl/A

AEP model: Ac: 220v~50Hz 7w
UK model: AC: 240V~50Hz 7W

DUAL ALARM CASSETTE PLAYER
EM/MW/LW DIGITAL CLIICK RAIJIII

SONY;

Page 2

lCF-CGOOL 1

SECTION 1
GENERAL

Location and Function of Controls

CLOCK set button

Press down while setting the current time.

Function ' tor switch
Select the desired position.

REPEAT ALARM/SLEEP OFF

Press to

0 repeat the alarm function.

0 turn off the radio before the sleep timers
preset time has elapsed.

Speaker

Time display
Changes each time these clock iunctions are
activated:

I current time

0 sleep timer sequence

9 alarm time with "Alarm marking

SLEEP butter .
Press to set the sleep timer.

TIME SET buttons (Hour. Minute)
Use to set the current time and the alarm
time.

ALARM set buttons (RADIO/TAPE, BUZZER)
Press down the appropriate button while setting the alarm time.

F- Tape operation buttons

- TUNING control

- BAND selector
switch

- VOLUME control

Dial scale and dial pointer

ALARM RESET button
Press to cancel completely the alarm setting.

Bottom

0 ac compartment

Power backup battery compartment

I 3

FM wire antenna

AC power cord

SAFETY-RELATED COMPONENT WARNING"

COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBv
LISHED BY SONY.

2-
