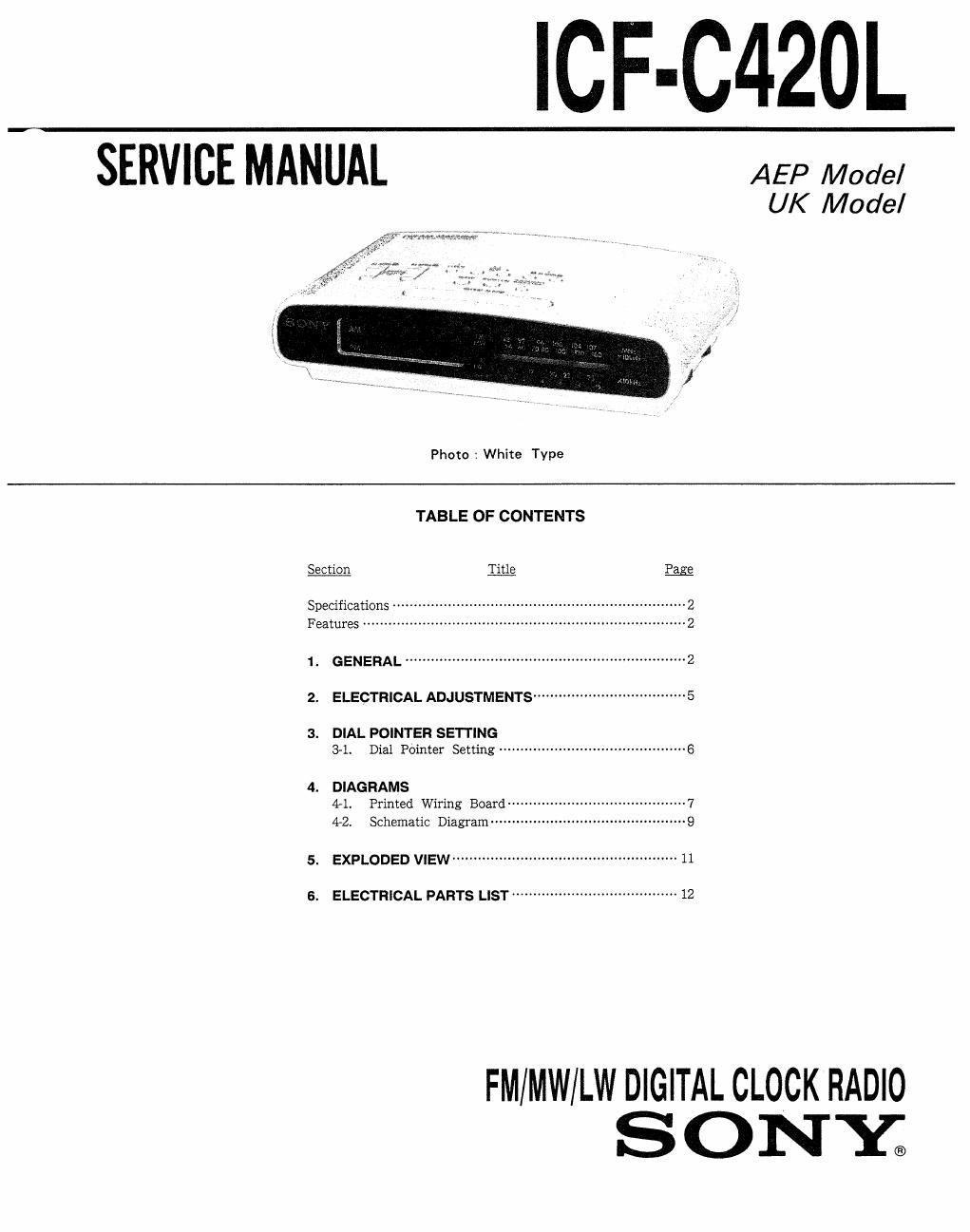

Sony icf c 420 l service manual

Page 2

ICF-C420L

MODEL IDENTIFICATION
~ Model Number Label ~

SONY mom to, lCF-C420I.

FM/MW/LW 3 BANDS

Specifications

Frequency range

Band
FM 87.6 - 107.5 M HZ
AM (MW) ssi-ieoz kHz
LW 153-255 kHz

intermediate irequency FM: 10.7 MHZ, AM: 455 kHz

Antennas FM: FM wire antenna
AM (MW)/LW: Built-in Ierrite bar antenna
Speaker Approx, 6.6 cm (25/5 inches) dia.

Power output ioo mw (at 10% harmonic distortion)

Power requirement

i:::;}~- AE" 6 : mm
UK Model : AC240V~ 50Hz

UK, Australia 240 V AC, 50 Hz

Other countries 220-230 V AC, 50 Hz

For the power backup tunction:
9 V DC, one 6F22 battery

Battery lite Approx. 29 hours, using Sony battery S-ODSP (U)
Dimensions Approx. 224 x 53,3 x 151 mm (th/d)
(87/3 x 23/5 x 6 inches) incl. projecting pans and
controls
Weight Approx. 6309 (1 lb 6 oz) not met. battery

Design and specifications subject to change without notice.

50H: 3W
3W

. Dual alarm digital clock radio.
- lolce oi radio or buzzer awakening sound ior both ALARM and ALARM

REPEAT ALARM: snooze alarm that can be operated with a Ieather-tight
touorit

- Power back-up lunctlon to keep the clock operating during a power
interruption, using a 6F22 battery (not supplied).

Note
This appiiance conicrms with EEC Directive 87/308/EEC regarding interierence
suppression.
SECTION 1 This section is extracted from
GENERAL instruction manual.

fl Locatio of Con rots

[A]

E] Time display

REPEAT AuxRM bar

IE] SLEEP button

El RADIO ON button

E ALARM RESET/RADIO on: button
Dial scale

[El TUNING camel

Alarm selectors (ALARM
ALARM .: BUZZER/RA O/OFF)

AC power cord
FM wire antenna
CLOCK set button
TIME SET buttons (+I-)
ALARM set buttons (

I)

EIEHEHEIEJEI El

speaker BAND selector (FM/MWILW)
Power back-up battery compartment
(bottom) VOL (voiume) control
