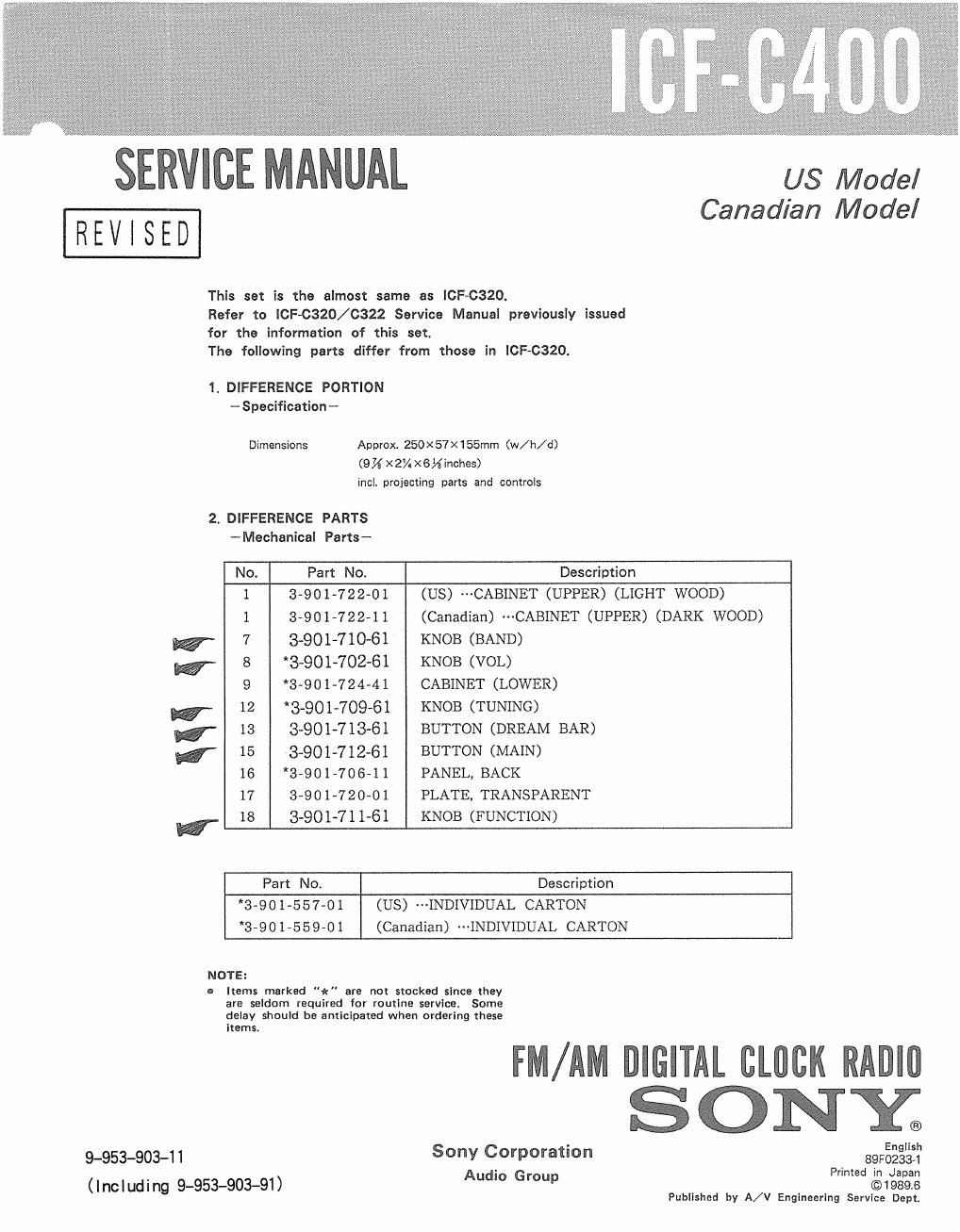

SERVICE MANUAL us Model

REV ] 3 ED Canadian Model

This set is the almost same as ICF-C320.

Refer to lCF-0320/C322 Service Manual previously issued
for the information of this set.

The following parts differ from those in ICF-C320.

1. DIFFERENCE PORTION
-Specification-

Dimensions Approx. 250x57><155mm (w/h/d)
(9% ><2/4 X6%inches)
incl. projecting parts and controls

2. DIFFERENCE PARTS
~Mechanical Parts-

No, Part No. Description

1 3-901-722-01 (US) ~--CABINET (UPPER) (LIGHT WOOD)

l 3-901-722-1 1 (Canadian) "CABINET (UPPER) (DARK WOOD)
7 3-901-710-61 KNOB (BAND)

8

9

*3-901-702-61 KNOB (VOL)
*3-901-724-41 CABINET (LOWER)

12 *3-901»709-61 KNOB (TUNING)
3-901-713-61 BUTTON (DREAM BAR)
15 3901-71261 BUTTON (MAIN)

16 *3-901-706-11 PANEL, BACK

17 3-901-720-01 PLATE, TRANSPARENT
18 3-901«71 1-61 KNOB (FUNCTION)

A I W

Part No. Description
*3-901-557-01 (US) MINDIVIDUAL CARTON
*3~901-559-01 (Canadian) '~-INDIVIDUAL CARTON

NOTE:

0 Items marked "-k" are not smoked slnce they
are seldom required for routine service. Some
delay should be anticipated when orderlng these
items

FM/AM DIGITAL CLOCK RADIII
SONY;

9-953-903-11 Sony Corporation agFgggg?
(Including 9-953-903-91)

Audio Group Printed 5132?;

Published by A/V Englneering Service Dept)
