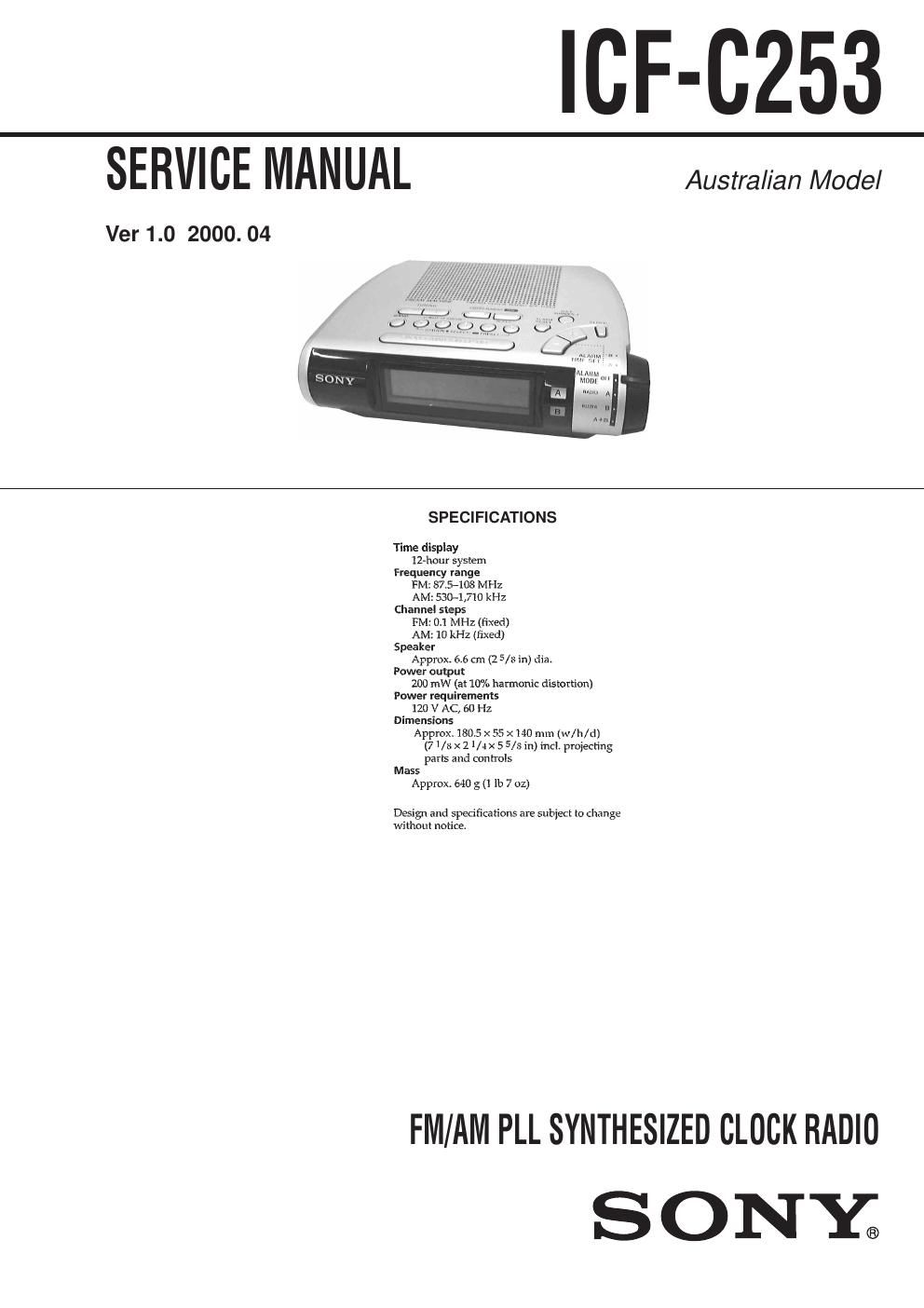

Sony icf c 253 service manual
This is the 12 pages manual for sony icf c 253 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony icf c 253 service manual (Ocr-read)
Page 1
Ñ 2 Ñ SECTION 1 GENERAL This section is extracted from instruction manual. 1. Check the area of your repair for unsoldered or poorly-soldered connections. Check the entire board surface for solder splashes and bridges. 2. Check the interboard wiring to ensure that no wires are "pinched" or contact high-wattage resistors. 3. Look for unauthorized replacement parts, particularly transistors, that were installed during a previous repair. Point them out to the customer and recommend their replacement.4. Look for parts which, through functioning, show obvious signs of deterioration. Point them out to the customer and recommend their replacement. 5. Check the B+ voltage to see it is at the values specified. 6. Flexible Circuit Board Repairing ¥ Keep the temperature of the soldering iron around 270ûC during repairing. ¥ Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). ¥ Be careful not to apply force on the conductor when soldering or unsoldering. SAFETY CHECK-OUT After correcting the original service problem, perform the following safety checks before releasing the set to the customer.
Page 2
Ñ 3 Ñ SECTION 2 DISASSEMBLY Note :Follow the disassembly procedure in the numerical order given. · The equipment can be removed using the following procedure. Key board Cabinet (upper) Set Main board Power boar d 2-1. CABINET (UPPER) 2 Cabinet (upper) 4 Speaker 3 Remove the two solderings. 1 1 Five screws (M3 ´ 14)
