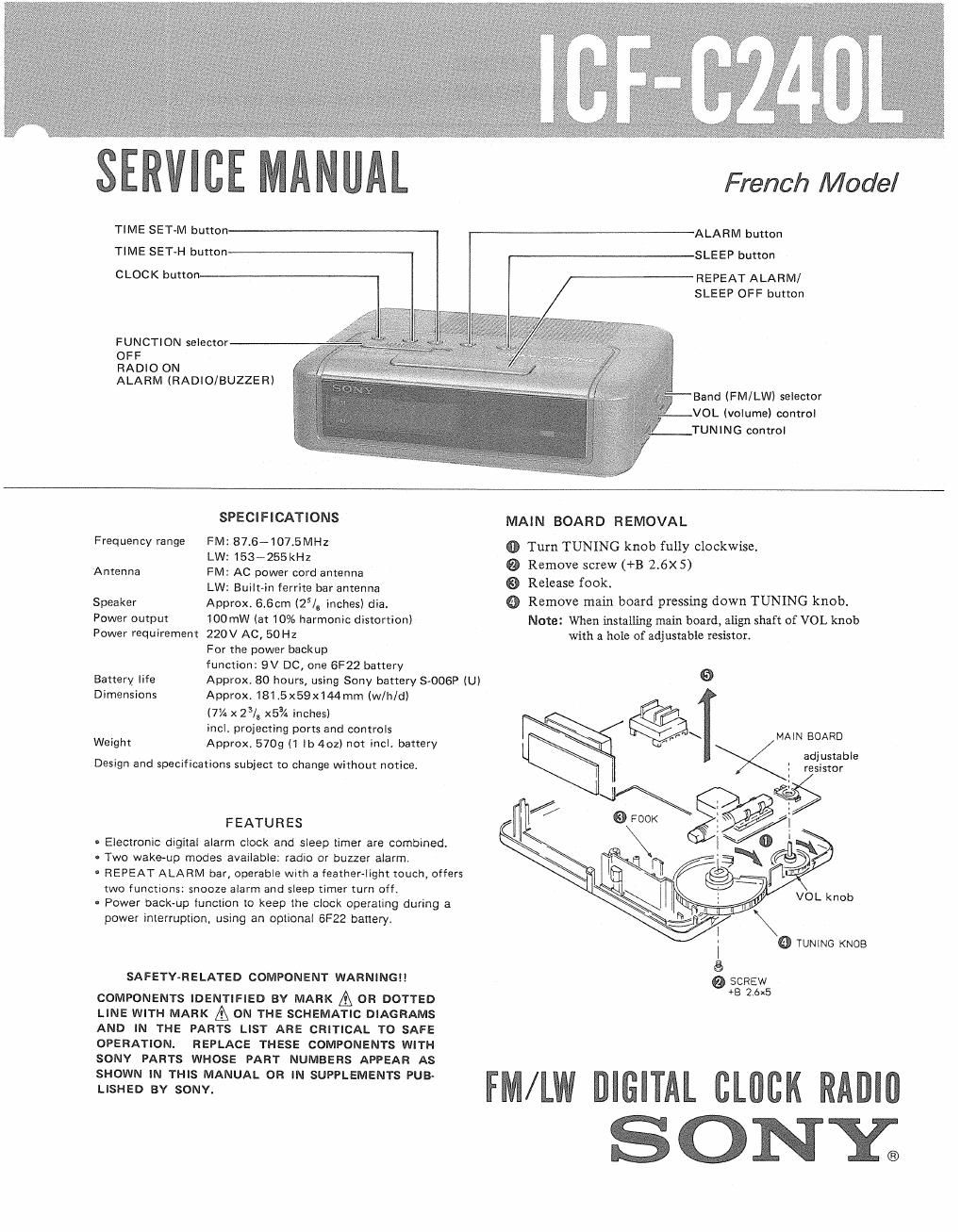

Sony icf c 240 l service manual

Page 1

TIME SET»M button
TIME SET-H button

FUNCTION selector
OFF

RADIO ON
ALARM (RADIO/BUZZERI

French Model

ALA R M button
S LE EP button

REPEAT ALARM/
SLEEP OFF button

Band (FM/LWI selector
VOL (volume) control
TUNING control

SPECIFICATIONS

FM: 87.6-107.5MH2
LW: 153~255 kHz

Freq uency range

Antenna FM: AC power cord antenna
LW: Built-in ferrite bar antenna
Speaker Approx. 6.6cm (25/a inches) dia.

Power output 100 mW (at 10% harmonic distortion)
Power requirement 220V AC, 50Hz

For the power backup

function: 9V DC, one 6F22 battery

Battery life Approx. 80 hours, using Sony battery 5-006? IU)
Dimensions Approx.181.5x59x144mmlw/hld)

(7% x 23/s x59. inches)

incl. projecting ports and controls
Weight Approx. 5709 (1 lb 402) not incl. battery

Design and specifications subject to change without notice.

FEATURES

- Electronic digital alarm clock and sleep timer are combined.

. Two wakeup modes available: radio or buzzer alarm.

' REPEAT ALARM bar, operable with a feather-light touch, offers
two functions: snooze alarm and sleep timer turn off.

' Power back-up function to keep the clock operating during a
power interruption, using an optional 6F22 battery.

SAFETY-RELATED COMPONENT WARNINGI!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB»
LISHED BY SONY.

MAIN BOARD REMOVAL

0 Turn TUNING knob fully clockwise

0 Remove screw (+B 2.6X5)

9 Release fuck.

0 Remove main board pressing down TUNING knob.

Note: When installing main board, align shaft of VOL knob
with a hole of adjustable resistor.

9

MAIN BOARD

adjustable
resistor

0 TUNING KNOB

SCREW
+8 266

I
i
5
O

FM/LW DIGITAL CLOCK RADIO

SONY.
