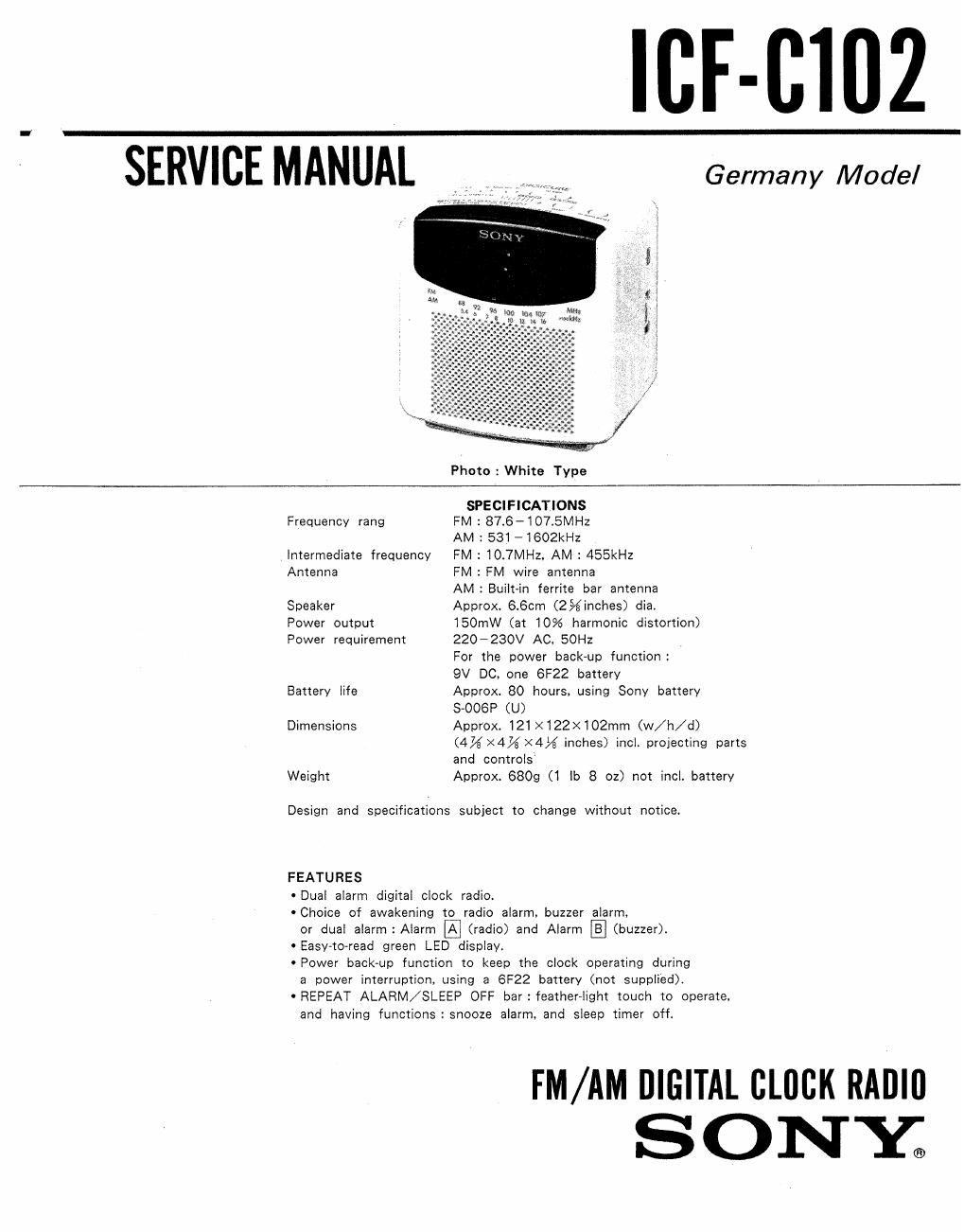

Sony icf c 1012 service manual
This is the 9 pages manual for sony icf c 1012 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony icf c 1012 service manual (Ocr-read)
Page 2
SECTION 1
GENERAL
. 1-1I LOCATION AND FUNCTION OF CONTROLS m ALARM set buttons fl- , E-
[2] TIME SET buttons (H/M)
CLOCK set button
E! VOL (volume) control (left side)
El Function selector
(OFF, RADIO ON, SINGLE ALARMn- , fi-
DUAL ALARMfl- , E-)
REPEAT ALARM/SLEEP OFF bar
Time display
Dial scale
El Speaker
SLEEP button
E ALARM RESET button
IE} BAND selector (FM/AM)
E TUNING control
AC power cord
15-] FM wire antenna
Power back-up battery compartment (bottom)
SECTION 2
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.
2-1. CABINT (FRONT) AND CABINET (REAR) REMOVAL
We screw <+P3><12)
OFancticn selector knob
9 screw (+P3X12)
Rear cabinet
Front cabinet
