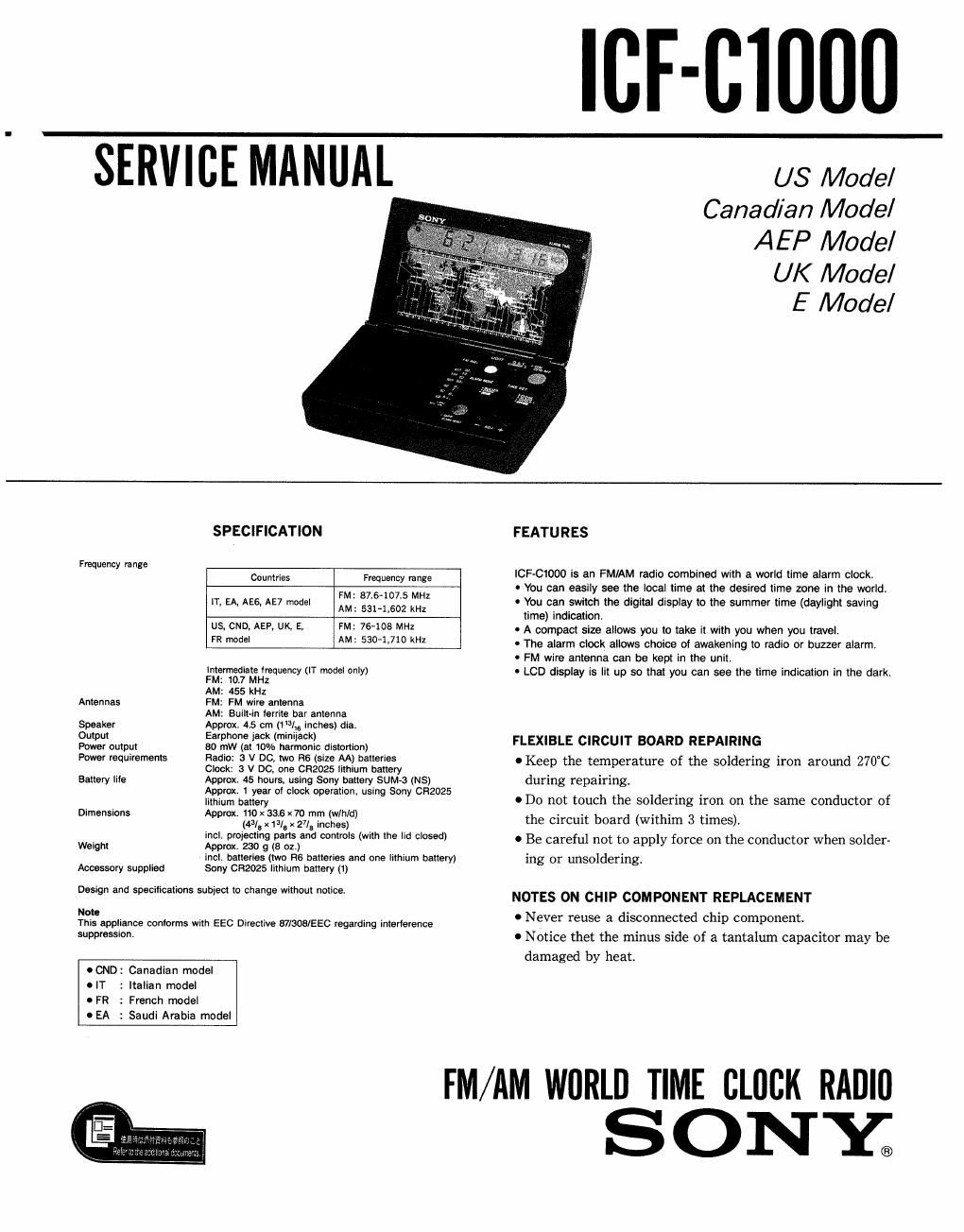

Page 1

ICE-81000

SERVICE MANUAL

US Model
Canadian Model
AEP Model

UK Model

E Model

SPECIFICATION

Frequency range
Countries Frequency range

FM : 87.64075 MHz

IT. EA, AE6, AE7 model AM: 5314.602 kHz

US, CND, AEP, UK, E, FM: 76108 MHz
FR model AM: 5304.710 kHz

Intermediate frequency (IT model only)

FM: 10.7 MHz

AM: 455 kHz
Antennas FM: FM wire antenna

AM: Builfin ferrite Dar antenna
Speaker Approx. 4.5 cm (WI,6 inches) dia.
Output Earphone lack (minljack)

Power output
Power requirements

80 M (at 10% harmonic distortion)
Radio: 3 V DC. two R6 (size AA) batteries
Clock: 3 V DC, one CR2025 lithium battery

Battery lite Approx. 45 hours. using Sony battery SUM-3 (NS)
Approx. I year of clock operation, using Sony CHZOZS
lithium battery

Dimensions Approx, 110 x 3&6 x 70 mm (WM!)

(43/, x We x 27/a inches)
incl. proiecting pans and controls (with the lid closed)
Weight Approx. 230 g (3 oz.)
incl. batteries (two He batteries and one lithium battery)
Accessory supplied Sony cnzozs lithium battery (1)
Design and specifications subject to change without notice.

Note
This appliance conforms with EEC Directive B7l808/EEC regarding interterence
suppression.

OCND: Canadian model
OIT : Italian model

OFR : French model

0 EA 2 Saudi Arabia model

FEATURES

ICF-Clooo is an FM/AM radio combined with a world time alarm clock.

0 You can easily see the local time at the desired time zone in the world.

0 You can switch the digital display to the summer time (daylight saving
time) indication.

0 A compact size allows you to take it with you when you travel.

- The alarm clock allows choice 01 awakening to radio or buzzer alarm.

0 FM wire antenna can be kept in the unit.

- LCD display is lit up so that you can see the time indication in the dark.

FLEXIBLE CIRCUIT BOARD REPAIRING

0 Keep the temperature of the soldering iron around 270°C
during repairing.

0 Do not touch the soldering iron on the same conductor of
the circuit board (withim 3 times).

0 Be careful not to apply force on the conductor when solder-
ing or uneoldering.

NOTES ON CHIP COMPONENT REPLACEMENT

0 Never reuse a disconnected chip component.

0 Notice thet the minus side of a tantalum capacitor may be
damaged by heat.

FM/IIM WORLD TIME CLOCK RADIU

SONY®

Page 2

lCF-ClOOO

SERVICING NOTES

CAUTION

Danger of explosion if battery is incorrectly re»
placed. Replace only with the same or equivalent
type recommended by the equipment manufacturer.
Discard used batteries according to manufacturers

instructions.

ADVARSEL !

Udskiftning mi kun ske med batteri
at' samme fabrikat og type.

Lithiumbatterikasplosionsfare ved fejlagtig hindtering.

Lever det brugte batteri tilbage til leverandttren.

ADVARSEL
Lithiumbatteri-Eksplosjonsfare.
Ved utskifting benyttes kun batteri som
anbefalt av apparatfabrikanten.
Brukt batteri returneres apparatleverandttren.

VARNING
Explosionsfara vid felaktigt batteribyte Anvand samma
batterityp eller en ekvivalent typ sot-n rekommenderas av
apparattillverkaren. Kassera anvant batteri enligt fabri-
kantens instruktion.

VAROITUS
Paristo voi rajahtaa, jos so on virheellisesti asennettu. Vaihda
paristo ainoastaan laitevalmistajan suosittelemaan tyyppiin.
Havita kaytetty paristo valmistajan ohjeiden mukaisesti.

Location of Controls

SECTION 1
GENERAL

This section is extracted from
instruction manual.

[1| TIME SET selector
(CLOCK/ALARM/WORLD T.
mum/LOCK)

[2| ALARM MODE selector
(BUZZER/RADlO/OFF)

E] OFF/ALARM RESET button

1] ADJ. (adjustment) - button

Emu (adjustment) + button

E LIGHT button

E] o.s:r. (Daylight Saving

Tlma)/SUMMER T. (tlme)

button

ON (AUTO OFF) button

E mums. control

fl BAND selector (FM/AM)

E VOLUME control

E Dlsplay wlndow

Speaker

IE FM wlre antenna

E Q) (earphone) iack

1:6} BATT (battery) compartment

£7] Tlme zone map

E] Dial scale

E WIND antenna reel (bottom)
