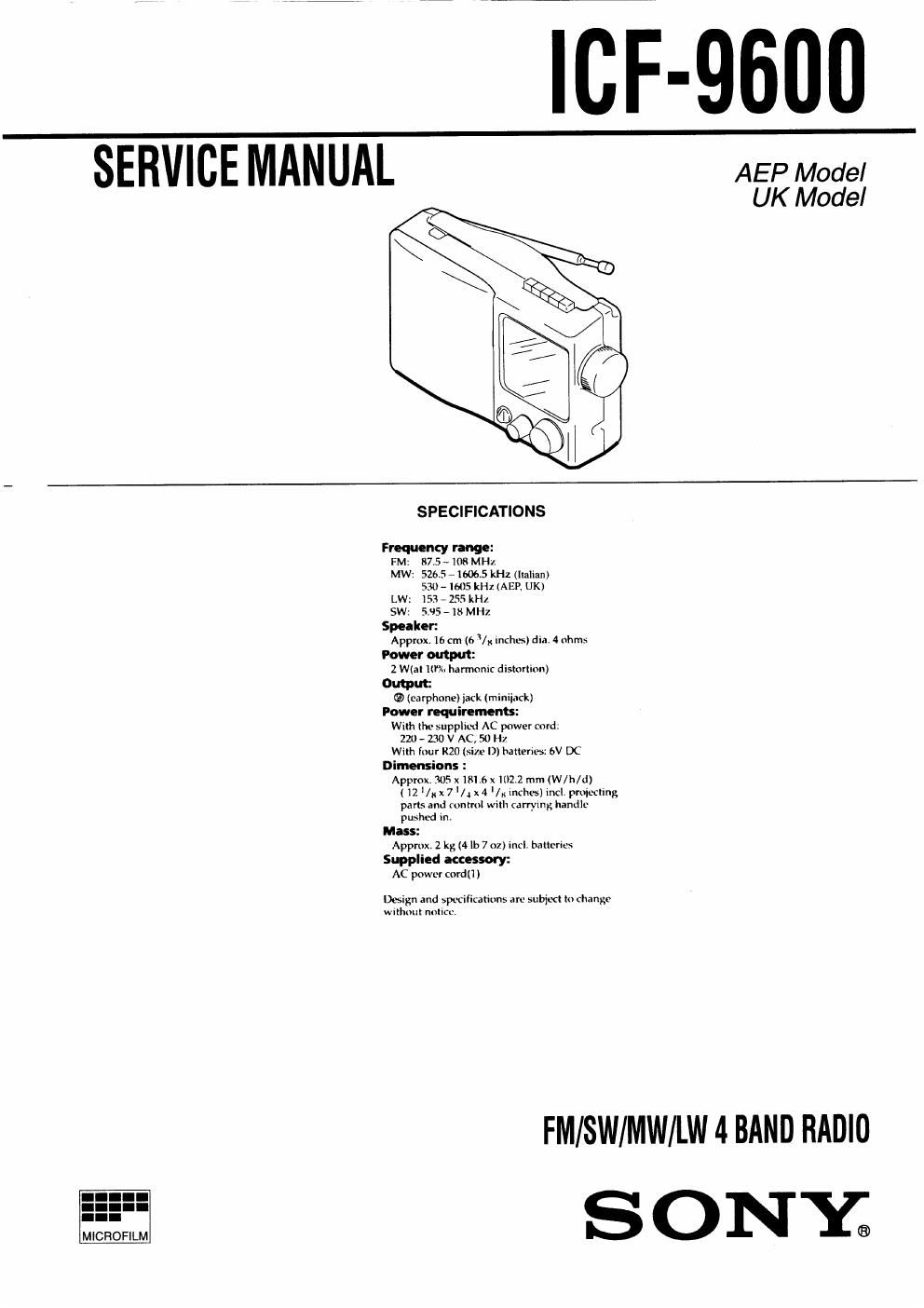

Sony icf 9600 service manual

Page 2

TABLE OF CONTENTS

Specification ...................................

1. GENERAL

Location and Function of Controls .. 3
2. DISASSEMBLY

2-]. Cabinet (Rear) Assy, Power Board,

Jack Board Removal iiiiiiiiiiiii .. 4

2-2. Cabinet (Front) Assy Removal , U 4

2-3. Pointer and Dmm (A, B) Removal .. 5

2-4. Main Board Removal .. 5

2-5. Volume Board Remova .. 6
3. DIAL POINTER INSTALLATION .................................. 7
4. ELECTRICAL ADJUSTMENTS ................................ 8
5. DIAGRAMS

5-1. Printed Wiring Boards 10

5-2. Schematic Diagram ...... l3
6. EXPLODED VIEWS

6-]. Cabinet Section ......................................................... 16

62. Chassis Section ......................................................... l7
7. ELECTRICAL PARTS LIST .. l8

SAFETY-RELATED COMPONENT WARNINGII

COMPONENTS IDENTIFIED BY MARK AOR DOTTED LINE WITH
MARK AON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL T0 SAFE OPERATION.

REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN INTHIS MANUAL OR IN
SUPPLEMENTS PUBLISHED BY SONY.

0 HOW TO CHANGED THE CERAMIC FILTERS
This model is used two ceramic filters of CF2 and CF3.
You must used same type of color marked ceramic filters in
order to meet same specifications.
Therefore, the ceramic filter must changed two pieces together
since it's supply two pieces in one package as a spare parts,

mark mark Mark Center fequency
red 10,70MHz
blue 10.67MHz
orange 10.73MHZ
black 10.64MHZ
white 10.76MH2

Notes on chip component replacement

- Never reuse a disconnected chip component,

- Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
