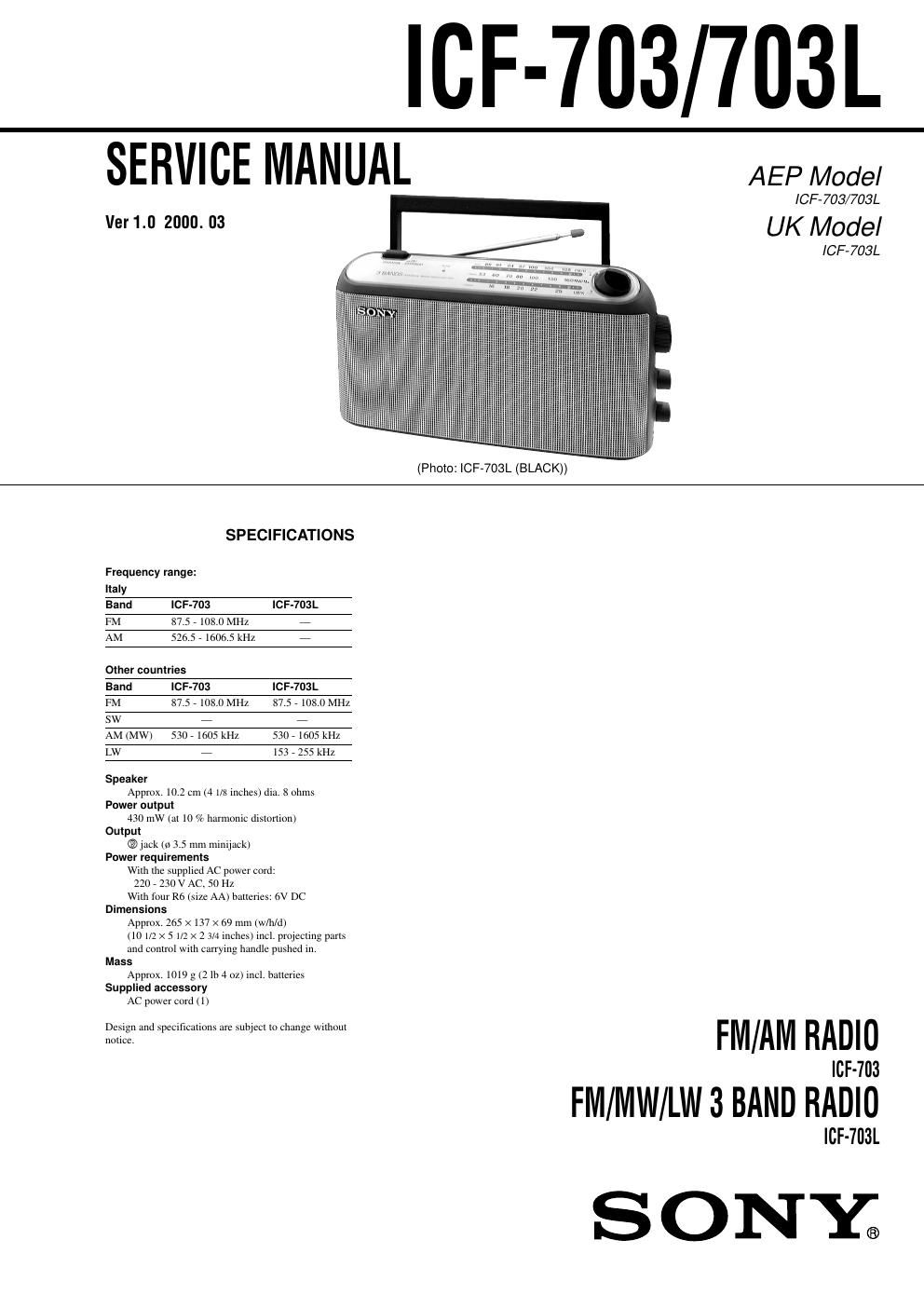

Sony icf 703l service manual

Page 2

– 3 – SECTION 1 GENERAL This section is extracted from instruction manual. A B C OPERATION ($ON/4STANDBY) Insert the # side of the battery first. Insérez le côté # de la pile en premier. Batterie mit der # Seite zuerst einlegen. Inserte en primer lugar el lado # de las pilas Inserire prima il lato # della pila. R6 (size AA) battery x 4 pile R6 (format AA) x 4 Mignonzelle (R6/AA) x 4 pila R6 (tomaño AA) x 4 pila R6 (formato AA) x 4 ICF-703 ICF-703S ICF-703L Choosing Power Sources Batteries (See Fig. A) 1 Open the lid of the battery case. Slide fully in the direction of the arrow (B) on the lid and lift it. Do not force to open it. Doing so may damage the unit. 2 Insert four R6 (sizeAA) batteries (not supplied) with correct polarity. 3 Close the lid. Battery life Using Sony LR6(size AA) alkaline batteries: Approx. 100 hours Using Sony R6 (size AA) batteries: Approx. 35 hours Replacing batteriesWhen the sound becomes weak or distorted, replace all the batteries with new ones. Notes on batteries-Insert the batteries with correct polarity. -Do not charge the dry batteries. -Do not use different types of batteries at the same time. -When you replace the batteries, replace all with new ones. -When the unit is not being used for a long period of time, remove the batteries to avoid damage from battery leakage and corrosion. -If a battery leakage occurs, wipe the battery compartment with a soft cloth before inserting new ones. House Current (See Fig. B) 1 Connect the AC power cord supplied to the AC IN jack of the radio. 2 Plug into a wall outlet. Operating the Radio 1 Press OPERATION ( $ ) to turn on the radio. 2 Select a desired band, and tune in a station using TUNING. TUNE (tuning) indicator lights up when a station is tuned in. 3 Adjust the volume using VOL. 4 Adjust the tone to your preference using TONE. To obtain clear treble, turn to HIGH. To reinforce bass, set to LOW. -To turn off the radio, press OPERATION (4). -To listen with an earphone connect the earphone to the v (earphone) jack. The spearker is deactivated when an earphone is connected. -To improve Receiving condition (See Fig. C) FM: Extend the telescopic antenna and adjust the length and angle for the best reception. SW: Extend the telescopic antenna vertically. AM(MW)/LW: Since the reception is affected by the direction of the radio, rotate the unit horizontally for optimum reception. Telescopic antenna Antenne télescopique Teleskopantenne Antena telescópica Antenna telescopica TUNE indicator Indicateur TUNE TUNE-Anzeige Indicador de sintonia (TUNE) Indicatore TUNE AC power cord (supplied) Cordon dalimentation secteur Netzkabel (mitgeliefert) Cable de alimentación de CA (suministrado) Cavo di alimentazione CA in dotazione Carrying handle Poigné de transport Tragegriff Asa de transporte Maniglia di trasportov jack Prise v v-Buchse Toma v Presa v AM (MW)/LW AM (PO)/GO FM UKWSW OC KW AC IN 1 2 3 4
