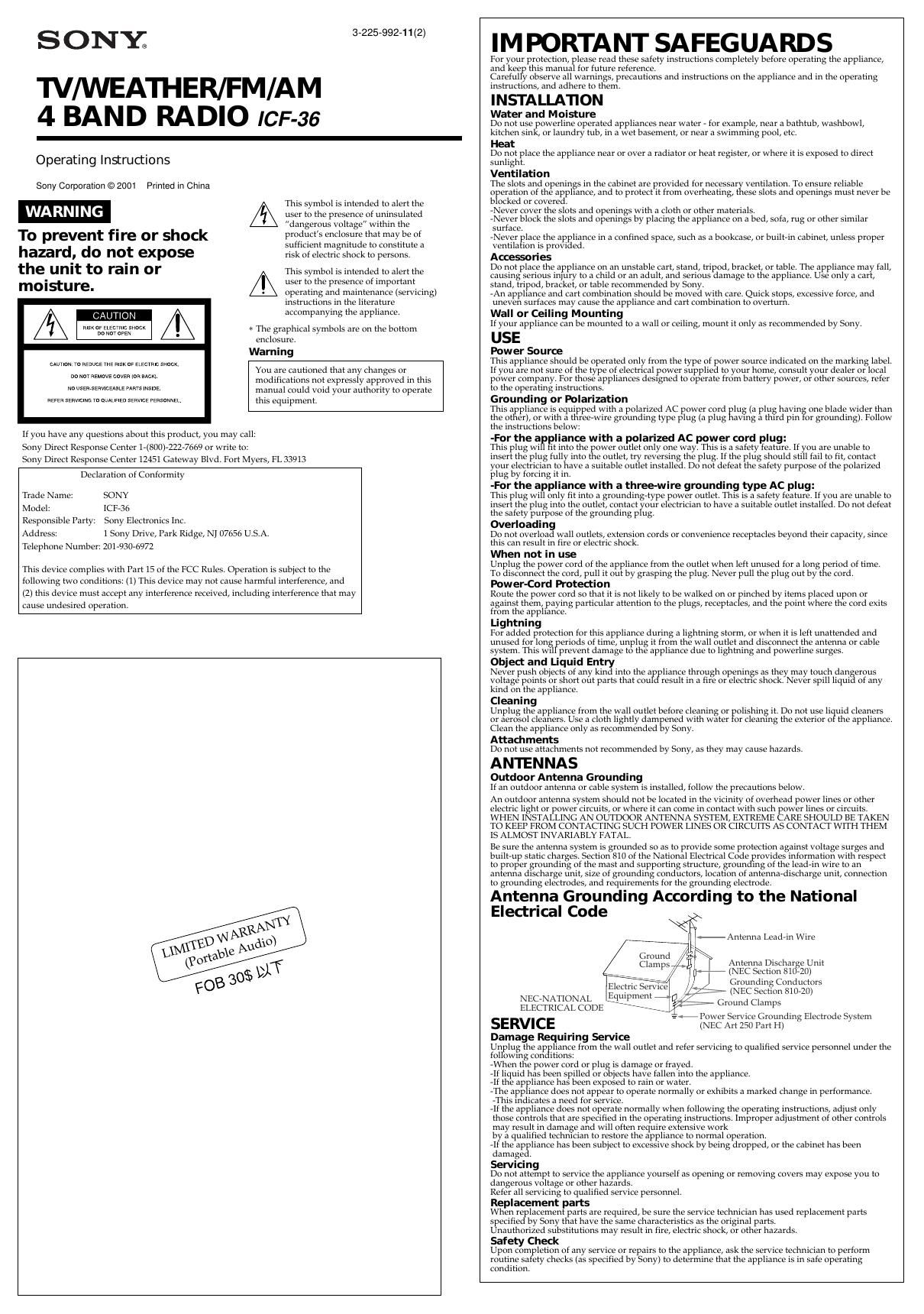

TV/ WEATHER/FM AM D C B A TUNE indicatorTelescopic antenna Precautions ¥ Operate the unit only on 6 V DC or 120 V AC, 60 Hz. For battery operation, use four size AA (R6) batteries.For AC operation, use the equipped AC power cord. ¥ To disconnect the power cord, pull it out by the plug, not the cord. ¥ The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off. ¥ The nameplate indicating operating voltage, etc. is located on the rear exterior. ¥ Do not leave the unit in a location near heat sources, or in a place subject to direct sunlight, excessive dust, or mechanical shock. ¥ Should any solid object or liquid fall into the unit, disconnect the AC power cord or remove the batteries, and have the unit checked by qualified personnel before operating it any further. ¥ In vehicles or in buildings, radio reception may be difficult or noisy. Try listening near a window. ¥ Since a strong magnet is used for the speaker, keep personal credit cards using magnetic coding or spring- wound watches away from the unit. ¥ When the casing becomes soiled, clean it with a soft cloth dampened with mild detergent solution. Never use abrasive cleansers or chemical solvents, as they may mar the casing. If you have any questions or problems concerning your unit, please consult your nearest Sony dealer. Specifications Frequency range TVÐH(high): channels 7Ð13 TVÐL(low): channels 2Ð6 WEATHER: 162.4Ð162.55 MHz FM: 87.5Ð108 MHz AM: 530Ð1 710 kHz Speaker Approx. 9.2 cm (3 5/8 in.) dia., 4 W Power output 400 mW (at 10 % harmonic distortion) Output v (earphone) jack (¿ 3.5 mm minijack) Power requirements 120 V AC, 60 Hz with the equipped AC power cord 6 V DC with four size AA(R6) batteries Dimensions Approx. 234 ´ 133 ´ 68.5 mm (w/h/d) (9 7/32 ´ 5 1/4 ´ 2 23/32 in.) incl. projecting parts with the carrying handle pushed in. Mass Approx. 848 g (29.9 oz.) Design and specifications are subject to change without notice. Before You Begin Thank you for choosing the Sony 4 band radio! This unit will give you many hours of reliable service and listening pleasure. Before operating your unit, please read these instructions thoroughly and retain them for future reference. Features ¥ Good sound and high sensitivity ¥ Tuning indicator for easy tuning ¥ Tone control switch ¥ 2 Watt Power AC/DC Operation Choosing Power Sources You can use this unit with four size AA (R6) batteries or the house current. The AC power cord is in the battery compartment. Batteries (See Fig. A) 1 Open the lid of the battery compartment. 2 Insert four sizeAA (R6) batteries (not supplied) with correct polarity. 3 Close the lid. Battery life (Approx. hours) Using Using Sony alkaline Sony size AA(LR6) size AA (R6) batteries batteries TV/WEATHER 74 28 FM 74 28 AM 82 30 Replacing batteriesWhen the sound becomes weak or distorted, replace all the batteries with new ones. Notes on batteries¥ Insert the batteries with correct polarity. ¥ Do not charge the dry batteries. ¥ Do not use different types of batteries at the same time. ¥ When you replace the batteries, replace all with new ones. ¥ When the unit is not being used for a long period of time, remove the batteries to avoid damage from battery leakage and corrosion. ¥ If a battery leakage occurs, wipe the battery compartment with a soft cloth before inserting new ones. House Current (See Fig. B) 1 Open the lid of the battery compartment and set the AC power cord into the groove properly. 2 Close the lid. 3 Plug into a wall outlet. To attach the battery compartment lid if it is accidentally detached (See Fig. C) 1 Put in one side of the lid as illustrated. 2 Push the other side to attach. Playing the Radio 1 Slide POWER to ON to turn on the radio. 2 Select TV H, TV L, FM or AM, and tune in to a station using TUNE. TUNE (tuning) indicator lights up when a station is tuned in. 3 Adjust the volume using VOL. 4 Adjust the tone to your preference using TONE. To obtain clear treble, set to ÒHIGHÓ. To reinforce bass, set to ÒLOWÓ. ¥ To turn off the radio, set POWER to OFF. ¥ To listen with an earphone (not supplied) connect the earphone to the v (earphone) jack. The speaker is deactivated when an earphone is connected. To improve Receiving condition (See Fig. D) TV/WEATHER/FM: Extend the telescopic antenna and adjust the length and angle for the best reception. Note Adjust the direction of the antenna, holding the bottom of it. The antenna can be damaged when you move the antenna with excessive force. AM: Rotate the unit horizontally for optimum reception. A ferrite bar antenna is built into the unit. Size AA (R6) ´ 4 AC power cord
