Sony icf 2001 service manual
This is the 5 pages manual for sony icf 2001 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony icf 2001 service manual (Ocr-read)

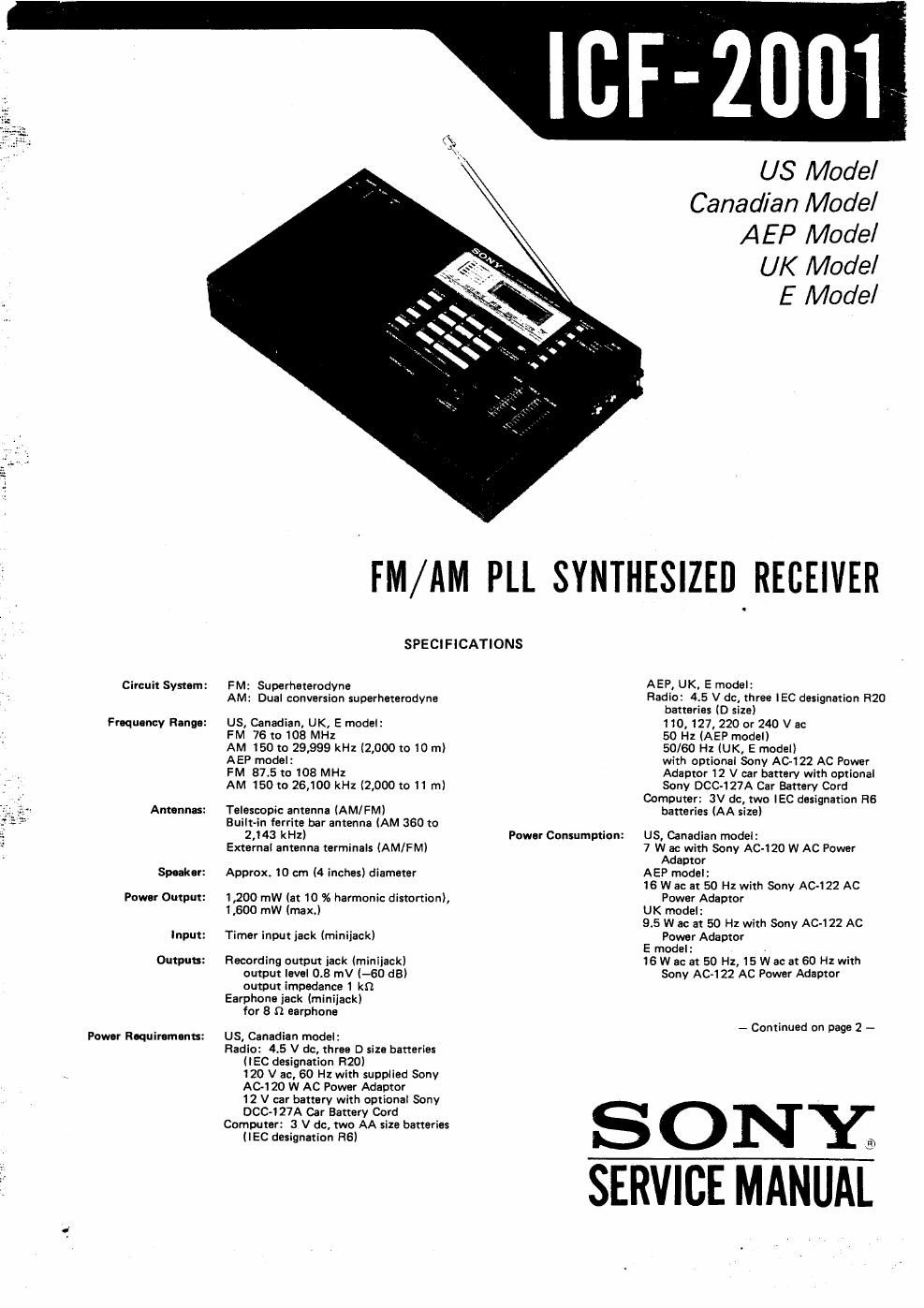

Page 1
Circuit System:
Frequency Flange:
Antennas:
Sneaker:
Power Output:
Input:
Outputs:
Power Roquiremenu:
ICE-2001
US Model
Canadian Model
AEP Model
UK Model
E Model
FM/AM PLL SYNTHESIZEJRECEIVER
SPECIFICATIONS
FM: Superheterodvne
AM: Dual conversion superheterodyne
US. Canadian, UK, E model:
FM 76 to 108 MHz
AM 150 to 29,999 kHz (2,000 to 10 m)
AEP model:
FM 87.5 to 108 MHz
AM 150 to 26,100 kHz (2,000 to H m)
Telescopic antenna (AM/FM)
Built-in ferrite bar antenna (AM 360 to
2,143 kHz)
External antenna terminals (AM/FM)
Approx. lo cm (4 inches) diameter
1200 mW (at 10 % harmonic distortion),
1,600 mw (max.)
Timer input jack lminijack)
Recording output jack (miniiack)
output level 0.8 mV (-60 dB)
output impedance 1 kn
Earphone jack lminiiack)
for 8 Q earphone
US, Canadian model:
Radio: 4.5 V do, three D size batteries
(lEC designation R20)
120 V ac, 60 Hz with supplied Sony
A64 20 w AC Power Adaptor
12 V car battery with optional Sony
DCC~127A Car Battery Cord
Computer: 3 V dc, two AA size batteries
(IEC designation R6)
Power Consumption:
AEP, UK, E model:
Radio: 4.5 V dc, three IEC designation R20
batteries (D size)
110,127, 220 or 240 V so
50 Hz (AEP model)
50/60 Hz (UK, E model)
with optional Sony A0122 AC Power
Adaptor 12 V car battery with optional
Sony DOC-127A Car Battery Cord
Computer: 3V do, two IEC designation H6
batteries (AA size)
US, Canadian model:
7 W at: with Sony AC-lZO W AC Power
Adaptor
AEP model:
16 W at: at 50 Hz with Sony AC-l 22 AC
Power Adaptor
UK model:
9:5 W at: at 50 Hz with Sony A0122 AC
Power Adaptor
E model: »
16 W as at 50 Hz, 15 Wac at 60 szith
Sony AC-122 AC Power Adaptor
- Continued on page 2 -
SONY;
SERVICE MANUAL
