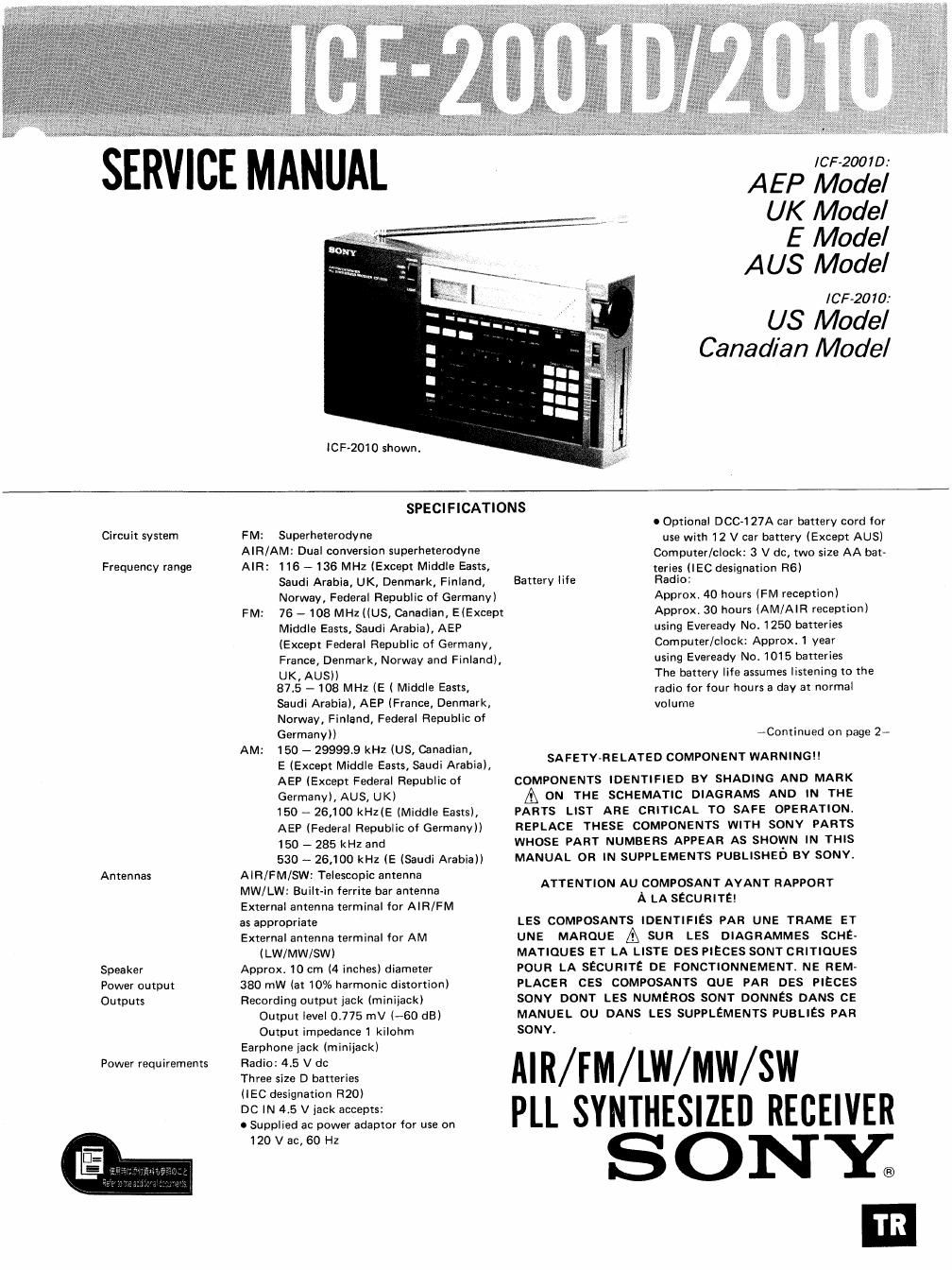

lCF-201 0 shown.

[CF-200 ID:

AEP Model
UK Model

E Model

AUS Model
[CF-2010:

US Model
Canadian Model

Circuit system

Frequency range

Antennas

Speaker
Power output
Outputs

Power requirements

SPECIFICATIONS

FM: Superhatarodyne

AIR/AM: Dual conversion superheterodyne

AIR: 116 - 136 MHz (Except Middle Easts,
Saudi Arabia, UK. Denmark, Finland,
Norway, Federal Republic of Germany)

FM: 76 - 108 MHz((US. Canadian. EiExcept
Middle Easts, Saudi Arabia), AEP
(Except Federal Republic of Germany,
France, Denmark, Norway and Finland),

UK, AUSII
87.5 - 108 MHz (E ( Middle Easts,

Saudi Arabia), AEP (France, Denmark,
Norway, Finland, Federal Republic of
Germany
AM: 150 - 29999.9 kHz (US, Canadian,
E (Except Middle Easts, Saudi Arabia),
AEP (Except Federal Republic of
Germany), AUS, UK)
150 - 26,100 kHziE (Middle Easts),
AEP (Federal Republic of Germany))
150 - 285 kHz and
530 ~ 26,100 kHz (E (Saudi Arabian
AlR/FM/SW: Telescopic antenna
MW/LW: Built-in ferrite bar antenna
External antenna terminal for AIR/FM
as appropriate
External antenna terminal for AM
(LW/MW/SW)
Approx. 10 cm (4 inches) diameter
380 mW (at 10% harmonic distortion)
Recording output iack (miniiack)
Output level 0,775 mV (-60 dB)
Output impedance I kilohm
Earphone jack (minijack)
Radio: 4.5 V dc
Three size D batteries
(IEC designation R20)
DO IN 45 V jack accepts:
0 Supplied ac power adaptor for use on
120 V ac, 60 Hz

0 Optional DOC-127A car battery cord for

use with 12 V car battery (Except AUS)

Computer/clock: 3 V dc, two size AA batv

teries (IEC designation R6)
Radio:

Approx. 40 hours (FM reception)
Approx. 30 hours (AM/AIR reception)
using Eveready No 1250 batteries
Computer/clock: Approx.1 year

using Eveready No. 1015 batteries

The battery life assumes listening to the
radio for four hours a day at normal
volume

Battery life

Acontinued on page 2-

SAFETY-RELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BV SHADING AND MARK

A ON THE SCHEMATIC DIAGRAMS AND IN THE
PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONV.

ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!

LES COMPOSANTS IDENTIFIES PAR UNE TRAME ET
UNE MAROUE A SUR LES DIAGRAMMES SCHE-
MATIOUES ET LA LISTE DES PIECES SONTCRITIOUES
POUR LA SECURITE DE FONCTIONNEMENT. NE REM-
PLACER CES COMPOSANTS OUE PAR DES PIECES
SONY DONT LES NUMEROS SONT DONNES DANS CE
MANUEL 0U DANS LES SUPPLEMENTS PUBLIES PAR
SONY.

AIR/ FM/ LW/ MW/ SW
PLI. SYNTHESIZEI] RECEIVER

SONY.
El

Page 2

' ICF-200'I D 2010

Dimensions Approx: 288 x 159 x 52 mm (w/h/dl
(11%3 x 63/5 x 27, inches)
incl. projecting parts and controls with
antenna retracted
Weight Approx. 1.7 kg (3 lb 12 oz)

incl. batteries

. -4» -4. - .o.r-a o m - ,,, - .- .. -.,- r. -4. - a- ---

The ICE-2001D/2010 is available in various models with differences in
tuning bands and frequencies, etc., corresponding to the regulations
of different countries.

The main differences are as follows. Please check the type of your
unit with respect to each item,

The AM and FM frequency ranges are indicated on the front panel
of your unit. For other items, compare your unit with the photos on
page 3 and the explanations of "LOCATION AND FUNCTION OF
CONTROLS.

Item Type Description
AM frequency 1 1507299993 kHz
range 2 150726,100 kHz
3 150~2B5 kHz and 530726,100 kHz
FM frequency 1 767103 MHZ
"nge 2 87.5- 108 MHz
AIR band 1 Provided
(116436 MHZ) 2 Not provided (No AIR key)
853 reception 1 Provided
2 Not provided (No USB and LSB/CW keys)
External antenna 1 Provided
terminals 2 Not provided

Despite the above differences, the operating procedure of all the
units are identical, The differences are clearly described in the text
as required.

The photos and illustrations used in this manual represent a typical
model.

WARNING

To prevent fire or shock hazard, do not expose the set to rain or
moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing
to qualified personnel only.

Notice for the customers in the United Kingdom
IMPORTANT
The wires in the mains lead of the supplied ac power adaptor are
coloured in accordance with the following code:

Blue: Neutral

Brown: Live
As the colours of the wires in the mains lead of this apparatus may
not correspond with the coloured markings identifying the termi-
nals in your plug proceed as follows:
The wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the termi-
nal which is marked with the letter L or coloured red.

The MW scanning interval is preset at the factory to 9kHz. If you
use the receiver where the frequency allocation system is based
on a 10 kHz interval, such as in the U.S.A. and Canada, change
the MW scanning interval following the procedure on page 15.

FEATURES

oAn FMILW/MW/SW portable receiver with worldwide band cover-
age. With certain models, the AlFi band can be also received.
OQuartz controlled PLL (Phase Locked Loop) synthesizer system
using a microcomputer makes pinpoint tuning easy.

oSmooth tuning with rotary manual tuning knob.

0 Synchronous detector circuit reduces interference from adjacent
stations (beats) and distortion due to fading in AM reception,
oChoice of direct, manual, scan, memory or memory scan tuning.
OUp to 32 stations can be memorized for instant tuning at the
press of a key. AM mode can also be memorized.
oProgrammable timer turns the receiver on and off automatically
up to four times a day,

OSIeep timer turns the receiver off automatically after 60, 30 or 15
minutes.

OThree different radio power sources: internal batteries, house
current or car battery.

AIR band

The AIR band covers the air traffic control frequencies You can monitor avia-
tion communications between aircraft and airport towers, such as a pilot's re-
quest for instructions, a report of his position, and filing of his flight plans.

.-r»-.r ---.w-. -,r.-trr-,.a»-,.»-.r-,,rr-w-,r,-rr.- .-,r>-r--rr-,r-,.-a-

MODEL IDENTIFICATION
- LCD Indication Plates -
AEP Model: France

E Model: Saudi Arabia
