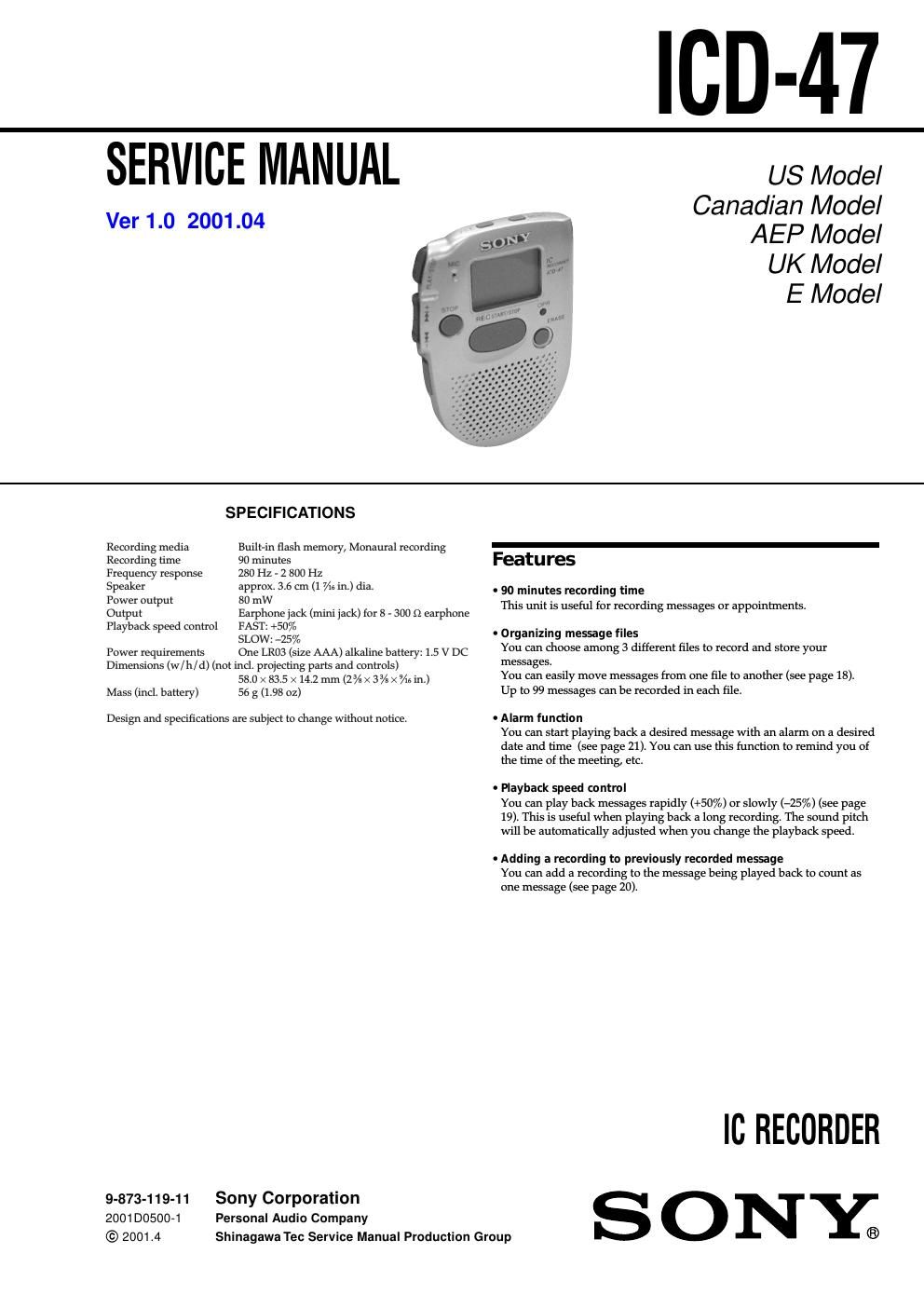

Sony icd 47 service manual

Page 2

3 ICD-47 SECTION 2 GENERAL This section is extracted from instruction manual. 32 Index to Parts and Controls Refer to the pages indicated in parentheses for details. Main unit 9 q; qa qs qd qf qg 1 2 3 4 8 5 6 7 1VOL (volume) control (14) 2FILE button (10, 13, 18) 3MIC (built-in microphone) (10) 4NxPLAY/STOP (play/ stop-enter) button (8, 14, 15) 5–./>+ (fast forward/ fast backward-selection of menu mode) button (13, 15) 6STOP button (11) 7HOLD switch (25) 8PLAY SPEED selector (19)9MENU button (8, 21, 34) 0Display window (33) qaOPR (operation) indicator (10, 14) qsERASE button (16) qdREC (record) START/STOP button (10) qfSpeaker qgEAR (earphone) jack (15) 33 Additional Information Display window 5 1 2 3 46 7 8 9 1Total number of messages in a file (13) Mode indication of the menu(21, 26 - 28) (On, OFF, etc.) 2File indication (10, 13) 3Current message number (10, 13) 4Remaining recording time indication (10) Recording date indication (14) Current time/day indication (8) Menu indication (8, 21, 26 - 28, 34) (ALARM, etc.) Messages (ERASE, SCAN, etc.)5Alarm indicator (23) 6Battery exhausted indicator (7) 7Repeat play indicator (15) 8REMAIN indication (10) 9REC DATE indication (14) 8 Clock setting display appears when you insert battery for the first time, or when you insert battery after the unit has been without battery for a certain period of time. In this case, proceed from Step 2. Display the clock setting display. Set the date. Step 2: Setting the Clock 1Press MENU to enter the menu mode.*2Press –. once to display SET DATE. 3Press NxPLAY/STOP. The year digits will flash. 2Press NxPLAY/STOP. The month digits will flash. 3Set the month and day in sequence, then press NxPLAY/STOP. The hour digits will flash. 1Press –. or >+ to select the digits of the year. 1 2 * The ALARM display may appear instead of the BEEP display (see page 34). 9 Getting Started Set the time. Exit from the menu mode. Press MENU. 3 2Press NxPLAY/STOP. The minute digits will flash.3Set the minute. 4Press NxPLAY/STOP at the time signal. The display will return to SET DATE. 4 1Press –. or >+ to select the digits of the hour.
