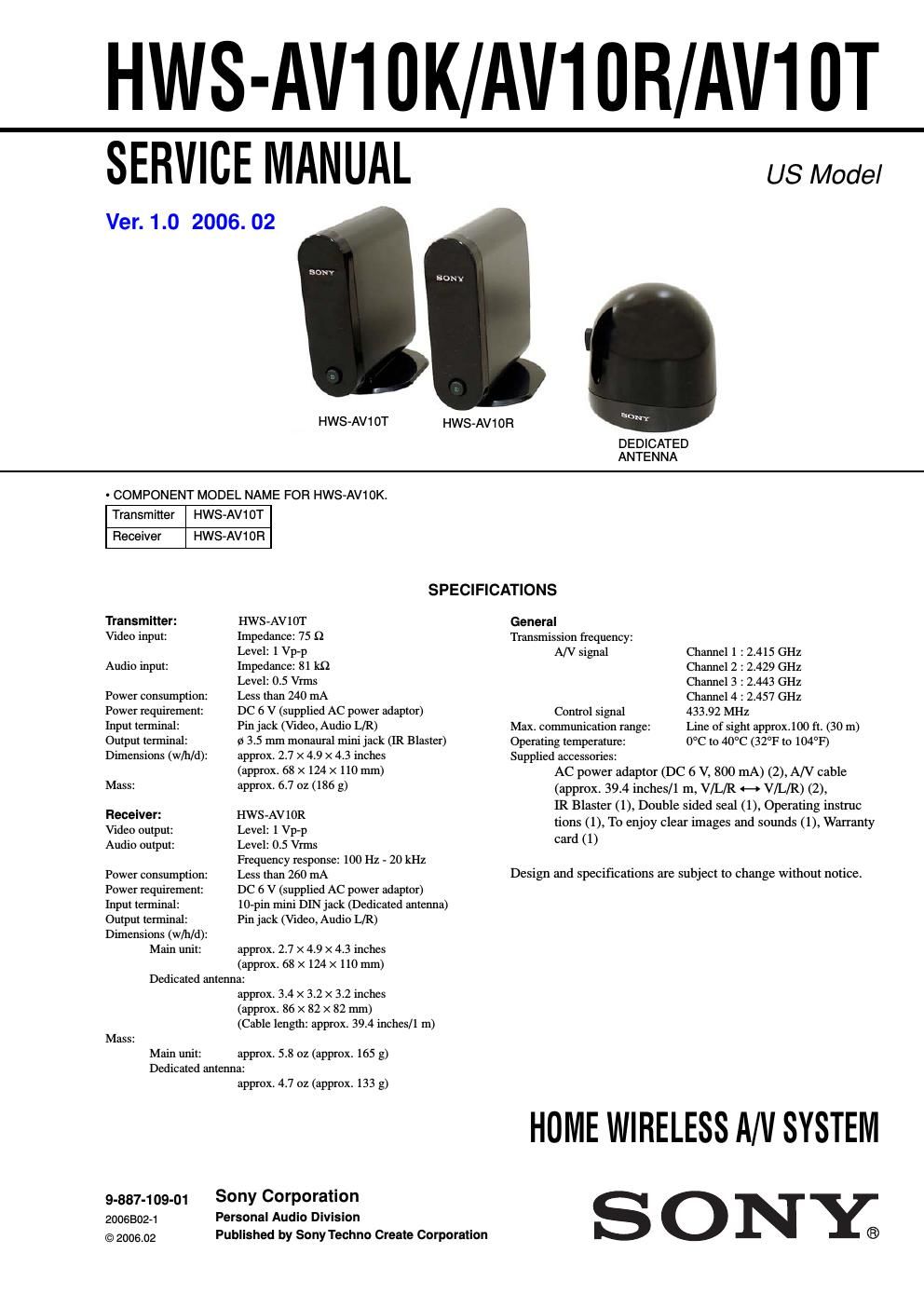

Page 1
2 HWS-AV10K/AV10R/AV10T TABLE OF CONTENTS Specifications ............................................................................ 1 1.GENERAL ................................................................... 3 2. DISASSEMBLY 2-1. Transmitter (HWS-AV10T), Receiver (HWS-AV10R) ... 4 3. DIAGRAMS ................................................................. 5 3-1. Printed Wiring Boards – Transmitter Section (HWS-AV10T) – .......................... 7 3-2. Schematic Diagram – Transmitter Section (HWS-AV10T) – .......................... 8 3-3. Printed Wiring Boards – Receiver Section (HWS-AV10R) – .............................. 9 3-4. Schematic Diagram – Receiver Section (HWS-AV10R) – .............................. 10 4. EXPLODED VIEWS 4-1. Transmitter Section (HWS-AV10T) ................................ 11 4-2. Receiver Section (HWS-AV10R) .................................... 12 4-3. Antenna Section .............................................................. 13 5. ELECTRICAL PARTS LIST .................................. 14 Notes on chip component replacement -Never reuse a disconnected chip component. -Notice that the minus side of a tantalum capacitor may be damaged by heat. Unleaded solder Boards requiring use of unleaded solder are printed with the lead free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.) : LEAD FREE MARK Unleaded solder has the following characteristics. -Unleaded solder melts at a temperature about 40°C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350°C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! -Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. -Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK !ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. -Please repair transmitter (HWS-AV10T) and receiver (HWS- AV10R) by the pair.
Page 2
3 HWS-AV10K/AV10R/AV10T SECTION 1 GENERAL This section is extracted from instruction manual. LOCATING THE CONTROLS Transmitter Front 1 2 1Power indicator Lights when the transmitter is turned on. 2Power button Turns the transmitter power on and off.Rear CHANNEL VIDEO IN LEFT AUDIO IN RIGHT IR EXTENDER DC IN 6V 3 4 5 6 3CHANNEL switch* Selects a desired channel (frequency) to transmit. 4VIDEO/AUDIO IN jacks Connects the A/V cables to A/V equipment in main room. 5IR EXTENDER jack Connects the IR Blaster (supplied). Do not connect the other of supplied IR Blaster. 6DC IN 6V jack Connects the AC power adaptor (supplied). *Make sure to set the CHANNEL switch of the transmitter and receiver to the same position. Receiver Rear CHANNEL VIDEO OUT LEFT AUDIO OUT RIGHT ANT DC IN 6V b 4 5 6 7 4CHANNEL switch* Selects a desired channel (frequency) to receive. 5VIDEO/AUDIO OUT jacks Connects the A/V cables to your TV in another room. 6ANT jack Connects the dedicated antenna. 7DC IN 6V jack Connects the AC power adaptor (supplied). *Make sure to set the CHANNEL switch of the transmitter and receiver to the same position. Front 1 2 3 1Infrared receiver Receives the signal from the remote control. Point and operate the remote control of A/V equipment at here. 2Power indicator Lights when the receiver is turned on. 3Power button Turns the receiver power on and off.
