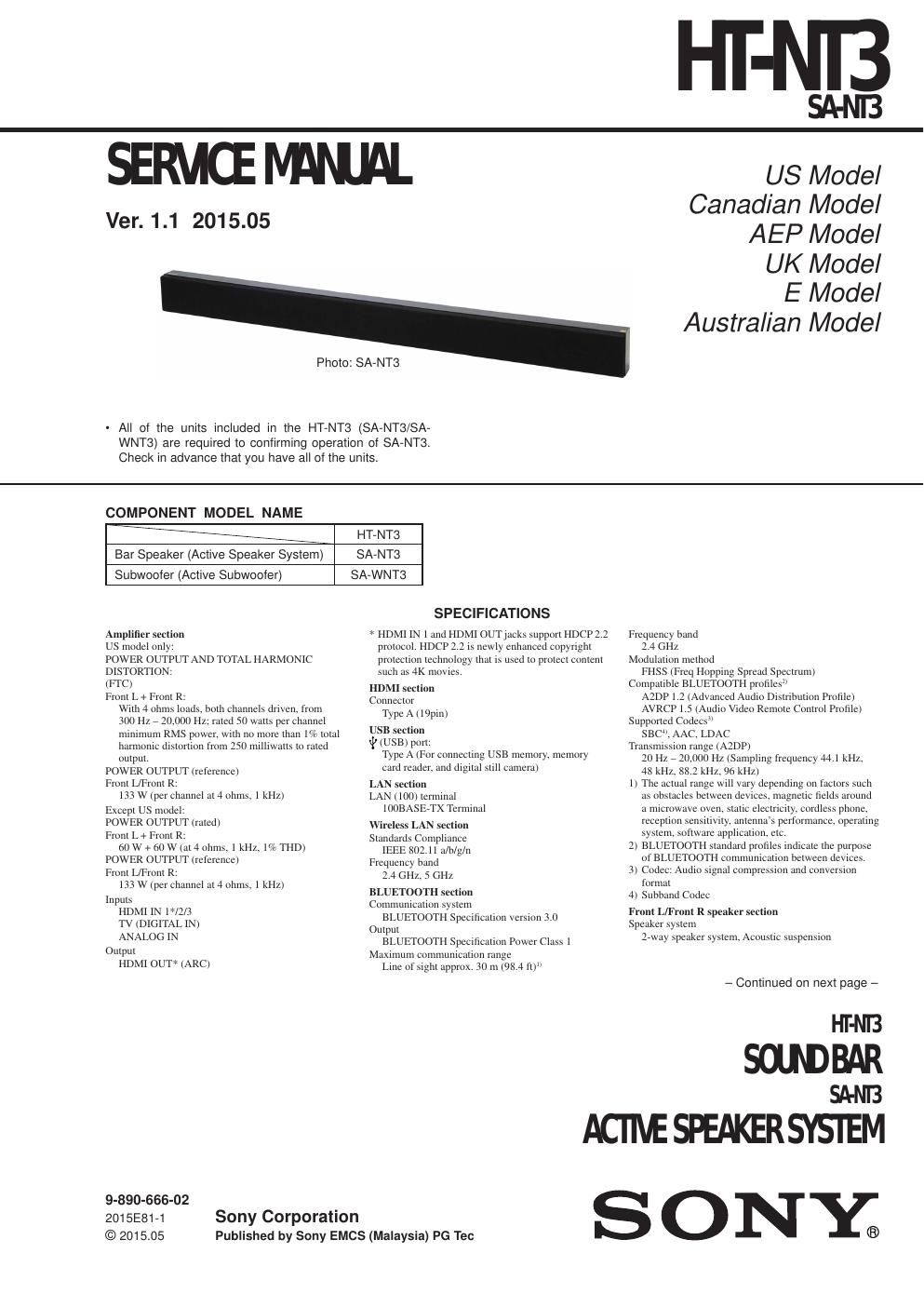

Sony ht nt3

Page 1

SA-NB

SERMCE IVMIIAL

Ver. 1.1 2015.05

Photo: SA-NT3

- All of the units included in the HT-NT3 (SA-NT3/SA-
WNT3) are required to confirming operation oi SA-NT3.
Check in advance that you have all of the units.

US Model
Canadian Model
AEP Model

UK Model

E Model
Australian Model

COMPONENT MODEL NAME

HT-NT3

Bar Speaker (Active Speaker System)

SA-NT3

Subwoofer (Active Subwoofer)

SA-WNT3

Amplifier section
US model only:

POWER OUTPUT AND TOTAL HARMONIC
DISTORTION:

(FTC)

From L + Front R:

With 4 ohms loadx, both channels driven. front

300 Hz 7 20,000 Hz: rated 50 watts per channel

mininlunl RMS power. with no more than 1% total

harmonic distortion from 250 milliwatts to rated
ouipui.

POWER OUTPUT (reference)

Front L/Front R:
133 W (per channel at 4 ohms. I kI-IZ)

Except US model:

POWER OUTPUT (rated)

From L + Front R:

60 W + 60 W (at 4 ohms, I kHz.
POWER OUTPUT (reference)
Front L/Front R:

133 w (per channel at 4 ohms 1 kHz)
Inputs

HDMI IN 1/2/3

TV (DIGITAL IN)

ANALOG IN
Output

HDMI OUT* (ARC)

1%THD)

9-890-666-02
2015E81-1
© 2015.05

Sony Corporation
Published by Sony EMCS (Malaysia) PG Tec

SPECIFICATIONS

" HDMI IN I and HDMI OUTJr'Icks support I-IDCP 2.2
protocol. HDCP 2,2 is newly enhanced copyright
protection technology that is used to protect content
such as 4K movies,

HDMI section

Connector

Type A ( 19pin)

USE section

4» (USB) port:

Type A (For connecting USB memory. memory
card reader, and digital still camera)

LAN section

LAN (100) terminal

IOOBASEVTX Terminal
Wireless LAN section
Standards Compliance
IEEE 802.11 a/b/g/n
Frequency band
2.4 GHZ. 5 GHZ
BLUETOOTH section
Communication system
BLUETOOTI-I Specification version 30
Output
BLUETOOTI-I Specification Power Class I
Maximum communication range
Line of sight approx 30 in (98.4 ft)"

Frequency band
2.4 GHZ

Modulation method
FHSS (Freq Hopping Spread Spectrum)

Compatible BLUETOOTH pt'OfiIESh
A2DP1.Z(AdVanced Audio Distribution Profile)
AVRCP 1.5 (Audio Video Remote Control Profile)

Supported Codecs"

SBC. AAC. LDAC

Transmission range (AZDI)

20 Hz , 20.000142 (Sampling frequency 44.1 kHz.
48 kHz, 882 kHz, 96 kHz)

1) The actual range will vaiy depending on factors such
as obstacles between devices. magnetic fields around
a microwave oven. static electricity, Cordless phone.
reception sensitivny. antennas performance. operating
system. software application. etc.

2) BLUETOOTH standard profiles indicate the purpose
of BLUETOOTH communication between devices,

3) Codec: Audio signal compression and conversion
format

4) Subband Codec

Front L/Frotit R speaker section
Speaker systeni
2rway speaker systems Acoustic suspension

- Continued on next page -

Hl'-Nl3
SCIMDBAR

sum
PCTIIESPEAKERSYSIEM

SONY;

Page 2

HT-NT3
Ver. 1.1

Speaker
Woofer: os mm (2 5/3 in) cone type, magnetic l-1uid speaker x2
Tweeter: 18 min (23/32 in) dome type x2

General
Power requirements

LA9 model only:

110 v , 240 v AC, 50/60 Hz

US, CND, TW models only:

120 v AC. 501-11

EA model only:

127 V , 240 v AC. 50/60 Hz

Except LA9. us. CND, Tw. EA models:

220 v , 240 v AC. 50/60 Hz
Power constimption

On: 55 w

Standby:

0.3 w

5.5 w (EXCEPT US. CND, LA9)
Dimensions (w/li/d) (approx.)

1070 mm x so mm x 55 mm.

(42 1/4 in x 3 1/2 in x 2 SIX in) incl.

projecting parts
Mass (approx.)

3.1 kg (6 lb 14oz)

Wireless transmitter section

Communication system
Wireless Sollnd Specification Version 3.0
Frequency band
USs CND, AER UK, AUS. EAs E3 models only: 5.2 GHZ, 5.8 GHZ
51, TW, LA9 models only: 5.8 GHZ
RU lnodel only: 5.2 GHZ
* 5.2 GHZ or 5.8 GHZ lnay not be available itl sonle countries/regions.
Modulation tnethod
DSSS

Video formats supported by the system
Input/Output (HDMI Repeater block)

3D

Format ZD Frame Ste-hy-ite Over-Under
packing (Hair) (Top-and-Bottom)

4096 X 2160]: @ 59.94/60 H1"

4096 X 2160p @ 50 Hz"

4096 X 2160p @ 23.98/24 Hl'1

3840 X 2160p @ 59.94/60 Hz

3840 X 2160p @ 50 Hz"

3840 X 2160p @ 29.97/30 Hl'l

3840 X 21601) @ 25 Hz':

3840 X 2160]: @ 23.98/24 Hz'1

1920 X 1080p @ 59.94/60111

i

1920 X 1080p @ 50 Hz

1920 X 1080p @ 29.97/30 Hz

1920 X 1080p @ 25 Hz

1920 X 1080p @ 23.98/24 Hz

1920 X 1080i @ 59.94/60Hz

1920 X 1080i @ 50 Hz

1280 X 720p @ 59.94/50 Hz

1280 X 720p @ 50 Hz

1280 X 720p @ 29.97/30 Hz

OOOOOOOOO
00000000000
00000000000

1280 X 7201) @ 23.98/24 Hz

720 X 480p @ 59.94/60 Hz

1
i
i

i
i
i

720 X 5761) @ 50 Hz

OOOOOOOOOOOOOOOOOOOOOO

640 X 480p @ 59.94/60 Hz

1
l
l

1 YCbCr 4:2:0/Supported 87bit only
3 Supported 87bit only

Supplied necessaries
Remote control (1)

R03 (size AAA) batteries (2)

High Speed HDMI cable (1) (EXCEPT AEP, UK)
Optical digital cable ( I) (AEP, UK)

Stands (2)

AC plug adaptor (2) (LA9)

Design and specifications are subject to change without notice.
