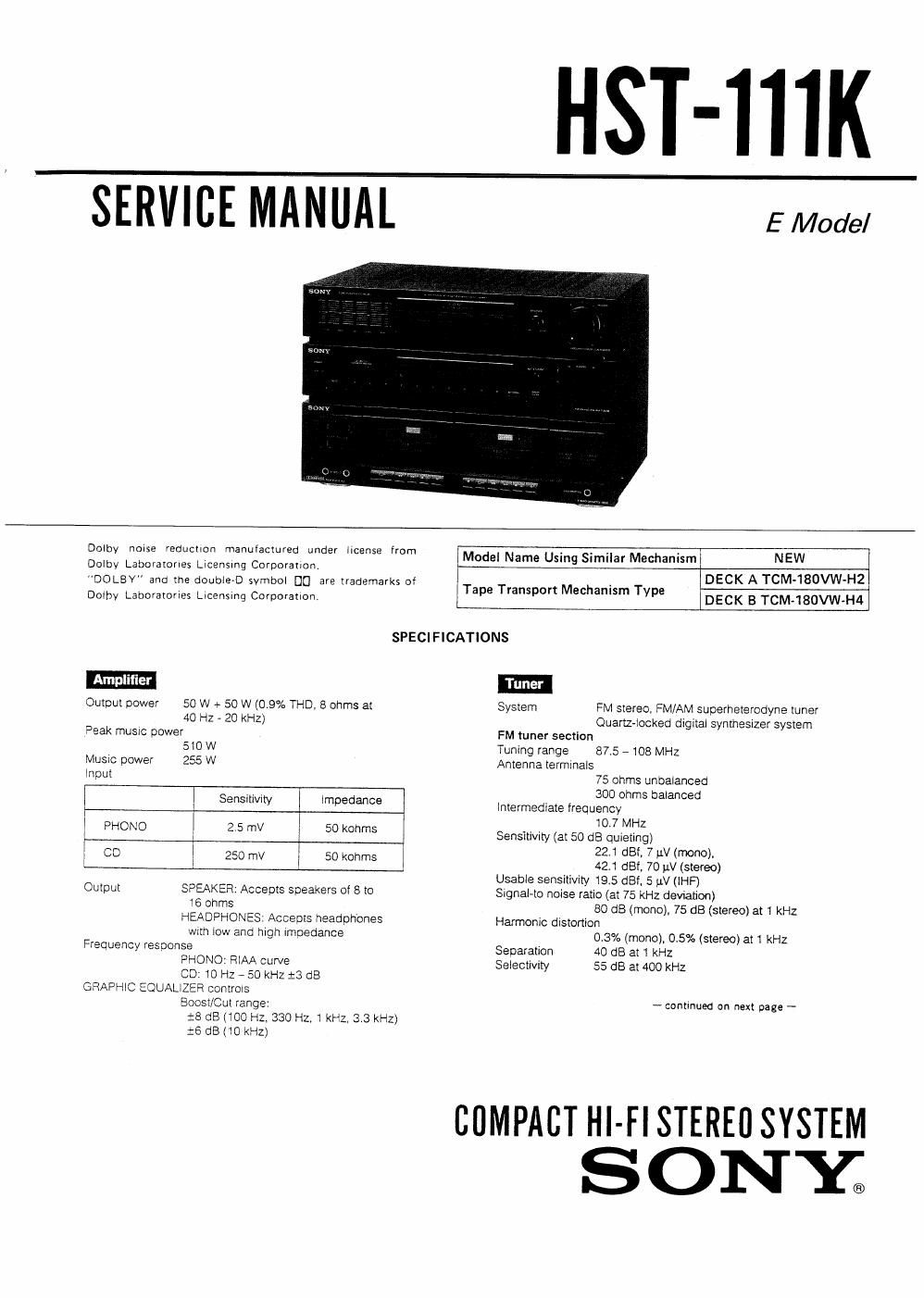

HST-111K

AM tuner section

Tuning range 531 -1.602 kHz (9 kHz)
530- 1,710 kHz (10 kHz)
Antenna AM loop antenna, External antenna
terminal
Intermediate frequency
450 kHz

Usable sensitivity AM loop antenna: 500 iiV/m (999 kHz)
Signal-iomoise ratio
54 dB

Harmonic distortion
0 . 5%

Selectivity 35 dB (9 kHz). 38 dB (10 kHz)

Recording system
4-track 2-channel stereo
Frequency response (DOLBY NR OFF)
With TYPE 1'! cassette (Sony UCX-S)
30-14,000 HZ (13 d8)
With TYPE 1 cassette (Sony HF-S)
30 -13.000 Hz (:3 dB)

Wow and flutter 0.12% WRMS (NAB)

Power requirements
120/220/240 V AC adjustable 50/60 Hz

Power consumption
100 W
Dimensions Approx 430 x 277 x 297 mm (w/h/d)

(17x11x115/einches)
Weight Approx. 83 kg (18 lb 5 oz) net
Accessories supplied

AM loop antenna (1)

FM Wire antenna(1)

Microphone (1)

Remote Commander FiM-S112 (1)

Sony batteries SUM 3 (NS) (2)

Design and specifications subject to change without notice

WWWW

TABLE OF CONTENTS

Section Title Page
SECTION 1. GENERAL

l-l Location of Controls --------------------- 3
SECTION 2. ADJUSTMENTS

2-1. Mechanical Adjustments ---------------------- 4
2-2. Electrical Adjustments -------------------- 4
SECTION 3. DIAGRAMS

3-1. Circuit Boards Location ------------------- 7
3-2. Printed Wiring Boards (TC Section) """"" 8
3-3. Schematic Diagram (TC Section] ------------- 11
3-4. Semiconductor Lead Layouts ----------------- 13
3-5. Printed Wiring Boards (RF AMP Section) ----- 14
3-6. Schematic Diagram (RF AMP Section) ......... 17
3-7. 1c Block Diagram ....................... 20
