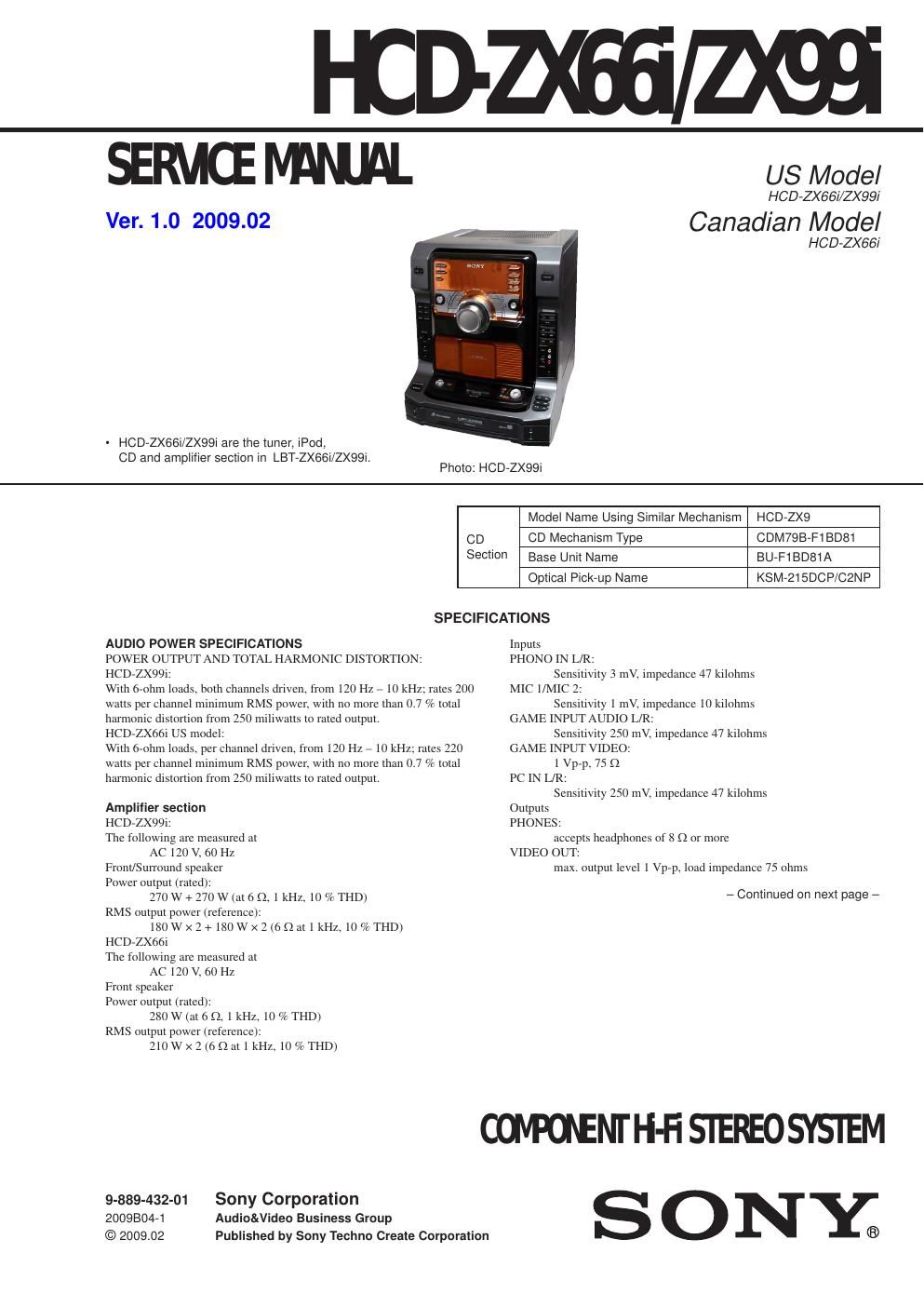

HCD-ZX66i/ZX99i

Disc player section
System

Compact disc and digital audio system
Laser

Semiconductor laser

(A = 780 nm)

Emission duration: continuous

Laser Output

Max. 44.6 ttW*

* This output is the value measured at a distance of 200 mm
from the objective lens surface on the Optical Pick-up Block
with 7 mm aperture.

Frequency response
2 Hz - 20 kHz (21.0 dB)
Wave length
780 - 790 nm
Signal-to-noise ratio
More than 90 dB
Dynamic range
More than 90 dB
CD DIGITAL OUT OPTICAL:
Wave length 660nm, output level
-18 dBm

Tuner section
FM stereo, FM/AM superheterodyne tuner

FM tuner section
Tuning range

87.5 - 108.0 MHz (100 kHz step)
Antenna

FM lead antenna
Antenna terminals

75 ohms unbalanced
Intermediate frequency

10.7 MHz

AM tuner section
Tuning range
530 - 1,710 kHz (with the interval set at 10 kHz)
531 - 1,710 kHz (with the interval set at 9 kHz)
Antenna
AM loop antenna
Antenna terminals
External antenna terminal
Intermediate frequency
450 kHz

iPod section
DC 5 V 500 mA MAX

General
Power requirements
120 V AC, 60 Hz
Power consumption
HCD-ZX99i (US model):
400 W
HCD-ZX66i (US model):
230 W
HCD-ZX66i (Canadian model):
240 VA
Dimensions (w/h/d) (Approx)
HCD-ZX991/HCD-ZX66i:
361.4 x 435.5 x 454.6 mm
(14 '14 x171/4 x 18 inches)
Mass (Approx)
HCD-ZX99i: 19.0 kg (41 lb 15 oz)
HCD-ZX66i: 14.6 kg (32 lb 4 oz)
Supplied accessories
Remote Commander (1)
R6 (size AA) batteries (2)
AM loop antenna (1)
FM lead antenna (1)
Speaker pads:
-HCD-ZX99i only (16)
-HCD-ZX66i only (8)
Speaker cords:
-HCD-ZX99i only
-grey (10 m) (39 3/8 ft) (2)
-white (3 m) (11 7/8 ft) (2)
-HCD-ZX66i only
-3 m (11 7/311) (2)

Design and specifications are subject to change without notice.

- Standby power consumption: 0.5 W
. Halogenated flame retardants are not used in the certain printed wiring
boards.

SAFETY-RELATED COMPONET WARNING!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

ATTENTION AU COMPOVSANT AYANT RAPPORT
A LA SECURITE!

LES COMPOSANTS IDENTIFIES PAR UNE MARQUE A SUR
LES DIAGRAMMES SCHEMATIQUES ET LA LISTE DES
PIECES SONT CRITIQUES POUR LA SECURITE DE FONC-
TIONNEMENT. NE REMPLACER CES COMPOSANTS QUE
PAR DES PIECES SONY DONT LES NUMEROS SONT DON-
NES DANS CE MANUEL ou DANS LES SUPPLEMENTS
PUBLIES PAR SONY.
