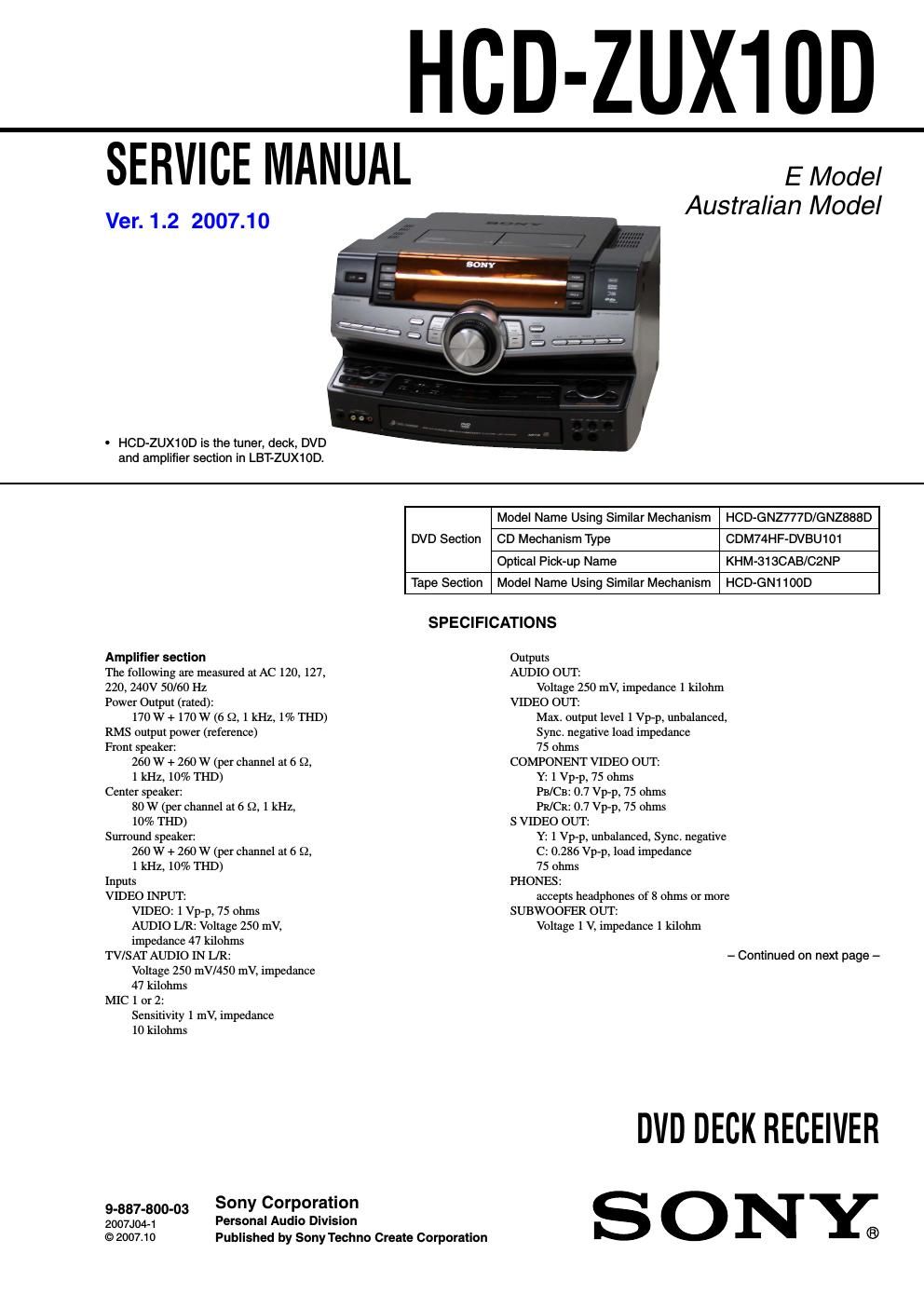

Sony hcd zux 10 d service manual

This is the 136 pages manual for sony hcd zux 10 d service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 136
sony hcd zux 10 d service manual

Extracted text from sony hcd zux 10 d service manual (Ocr-read)


Page 2

HCD-ZUX10D

Disc player section
System
Compact disc and digital audio and
video system
Laser
Semiconductor laser (DVD: X =
650 nm, CD: A = 790 nm)
Emission duration: continuous
Frequency response
DVD (PCM 48 kHz): 2 Hz - 22 kHz
(:1 dB)
CD: 2 Hz - 20 kHz (20.5 dB)
Video color system format
Latin American models: NTSC
Other models: NTSC and PAL

Tape deck section
Recording system

4-track 2-channel stereo
Frequency response

50 - 13,000 Hz (:3 dB),

using Sony TYPE I tape

Tuner section
FM stereo, FMIAM superheterodyne tuner

FM tuner section
Tuning range

87.5 - 108.0 MHz (50 kHz step)
Antenna

FM lead antenna
Antenna terminals

75 ohms unbalanced
Intermediate frequency

10.7 MHz

AM tuner section
Tuning range

Latin American and Oceanian models:

530 - 1,710 kHz (with the interval set
at 10 kHz)
531 - 1,710 kHz (with the interval set
at 9 kHz)
Other models:
531 - 1,602 kHz (with the interval set
at 9 kHz)
530 - 1,610 kHz (with the interval set
at 10 kHz)
Antenna
AM loop antenna
Antenna terminals
External antenna terminal
Intermediate frequency
450 kHz

SAFETY-RELATED COMPONENT WARNINGII

COMPONENTS IDENTIFIED BY MARK A OR DO'I'I'ED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.

2

General
Power requirements
Oceanian models: 230 - 240 V AC,
50/60 Hz
Other models: 120 V, 220 V or
230 - 240 V AC, 50/60 Hz, adjustable
with voltage selector
Power consumption
420 W
Dimensions (Approx)
491 x 297.5 x 460 mm (w/h/d)
Mass (Approx)
20 kg
Supplied accessories:
Remote Commander (2)
R6 (size AA) batteries (4)
AM loop antenna (1)
FM lead antenna (1)
Video cord (1)
Front speaker pads (8)
Surround speaker pads (8)
Center speaker pads (4)
Speaker cords (5)

Design and specifications are subject to
change without notice.
