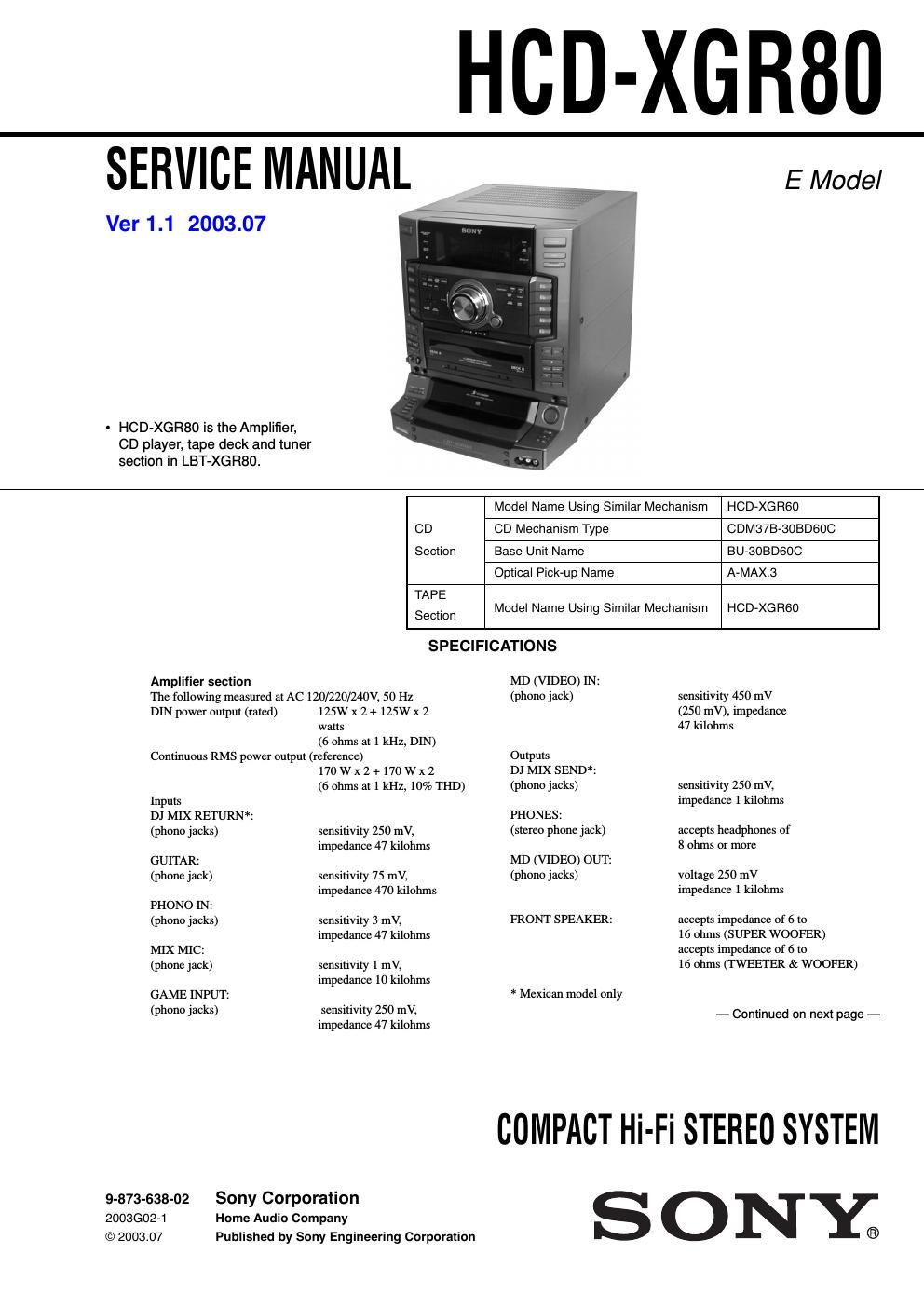

HCD-XGRBO

SERVICE MANUAL , _ EMode/

Ver 1.1 2003.07

- HCD-XGR80 is the Amplifier,
CD player, tape deck and tuner
section in LBT-XGRBO.

Model Name Using Similar Mechanism HCD-XGRGO

CD CD Mechanism Type CDM37B-30BD60C

Section Base Unit Name BU-BOBDSOC
Optical Pick-up Name A-MAX.3

TAPE

Section Model Name Using Similar Mechanism HCD-XGRSO

SPECIFICATIONS

Amplifier section MD (VIDEO) ]N:
The following measured at AC 120/220/240V, 50 Hz (phono jack) sensitivity 450 mV
DIN power output (rated) 125W x 2 + 125W x 2 (250 mV), impedance
watts 47 kilohms
(6 ohms at 1 kHz, DIN)
Continuous RMS power output (reference) Dutputs
170Wx2+170Wx2 DJMIXSEND*:
(6 ohms at 1 kHz, 10% THD) (phono jacks) sensitivity 250 mV,
Inputs impedance 1 kilohms
DJ MIX RETURN": PHONES:
(phono jacks) sensitivity 250 mV, (stereo phone jack) accepts headphones of
impedance 47 kilohms 8 ohms or more
GUITAR: MD (VIDEO) OUT:
(phone jack) sensitivity 75 mV, (phono jacks) voltage 250 mV
impedance 470 kilohms impedance 1 kilohms
PHONO IN:
(phono jacks) sensitivity 3 mV, FRONT SPEAKER: accepts impedance of 6 to
impedance 47 kilohms 16 ohms (SUPER WOOFER)
MIX MIC: accepts impedance of 6 to
(phone jack) sensitivity 1 mV, 16 ohms (TW'EETER & WOOFER)
impedance 10 kilohms
GAME INPUT: * Mexican model only
(phono jacks) sensitivity 250 mV, _ Continued on nex page _
impedance 47 kilohms

COMPACT Hi-Fi STEREO SYSTEM
9-873-638-02 Sony Corporation S 0 N Y
2003G02-1 Home Audio Company
© 2003.07 Published by Sony Engineering Corporation ®

Page 2

HCD-XGR80

CD player section
System

Laser

Frequency response
Signal-to-noise ratio

Dynamic range

CD OPTICAL DIGITAL OUT

Compact disc and digital
audio system
Semiconductor laser

( t=795 nm), Emission
duration: continuous

2 Hz - 20 kHz (10.5 dB)
More than 90 dB

More than 90 dB

(Square optical connectorjack, rear panel)

Wavelength:
Output level

Tape player section

Recording system
Frequency response

Tuner section

660 nm
-18 dBm

4-track 2-channel stereo
40 - 13,000 Hz (:3 dB),
using Sony TYPE I cassette

FM stereo, FM/AM superheterodyne tuner

FM tuner section
Tuning range

Antenna
Antenna terminals
Intermediate frequency

AM tuner section
Tuning range
Pan- American models:

Other models:

Antenna
Antenna terminals
Intermediate frequency

General
Power requirements

Mexican model:
Other models:

Power consumption

Dimensions (w/h/d)
Mass :

Supplied accessories:

87.5 - 108.0 MHz
(50 kHz step)

FM lead antenna

75 ohms unbalanced
10.7 MHZ

530 - 1,710 kHz

(with the interval set at 10 kHz)
531 - 1,710kHz

(with the interval set at 9 kHz)
531 - 1,602 kHz

(with the interval set at 9 kHz)
530 - 1,710 kHz

(with the interval set at 10 kHz)
AM loop antenna

External antenna terminal

450 kHz

120 V AC, 60 Hz

120 V, 220 V or 230 - 240 V
AC, 50/60 Hz

Adjustable with Voltage selector

320 watts

Approx. 355 x 425 x 451 mm
Approx. 16.4 kg

AM loop antenna (1)
FM lead antenna (1)
Speaker cords (4)
Speaker pads (8)
Remote commander ( 1)
Batteries (2)

Design and specifications are subject to change without notice.

Notes on chip component replacement

' Never reuse a disconnected chip component.

' Notice that the minus side of a tantalum capacitor may be
damaged by heat.

Flexible Circuit Board Repairing

' Keep the temperature of soldering iron around 270°C
during repairing.

' Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).

' Be careful not to apply force on the conductor when soldering
or unsoldering.

CAUTION

Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation
exposure.

CLASS 1 LASER PRODUCT
LUOKAN 1 LASERLAITE

KLASSI LASERAPPARAT

This appliance is classified as a CLASS 1 LASER product. The
CLASS 1 LASER PRODUCT MARKING is located on the rear
exterior.

CAUTION : INVISIBLE LASER RADIATION WHEN OPEN AND
lNTERLOCKS DEFEATED AVOID EXPOSURE m BEAM
ADVARSEL : UsttIo LASERSTRAUNG VED ABNING NAR
siKKEwHEDsAFERVDERE an uDE AF FUNKTIDN uNoGA uosAErrELsE
FOR STRALING

VORSICHT : UNSICHTBARE LASERSTRAHLUNG WENN
AEDECKUNG ezormgr we sioHEREIrst/ERRIEGELUNG
ueEnanucxr mew DEM STRAHL AUSSETZEN

VA R O I : AVAITAESSA m SUDJALUKIYUS DHITEFIAESSA OLET ALT
TllNA NAKVMArroMAttE LASERSATEIWLLE. m KAYSO SAIEESEEN
VA R N I N G OSVNLING LASERSYRALING NAR DENNA DEL AR OPPNAD
can SPARREN AR umwmn EETRAKTA Ed STRALEN

ADV ERSE L : ustLIG LASERSYRALING NAR DEKSEL APNES oo
SIKKERHEDSLAS ERVTES UNNGA EKSPONERING ton srRAtEN
VIGYAZATI : A EURKDLAT NYITASAKDR LAYHATAYLAN LEZERsu
GARVESZELV' mums A assusmnsrr

SAFETY-RELATED COMPONENT WARNING I!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE WITH
MARK A ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
