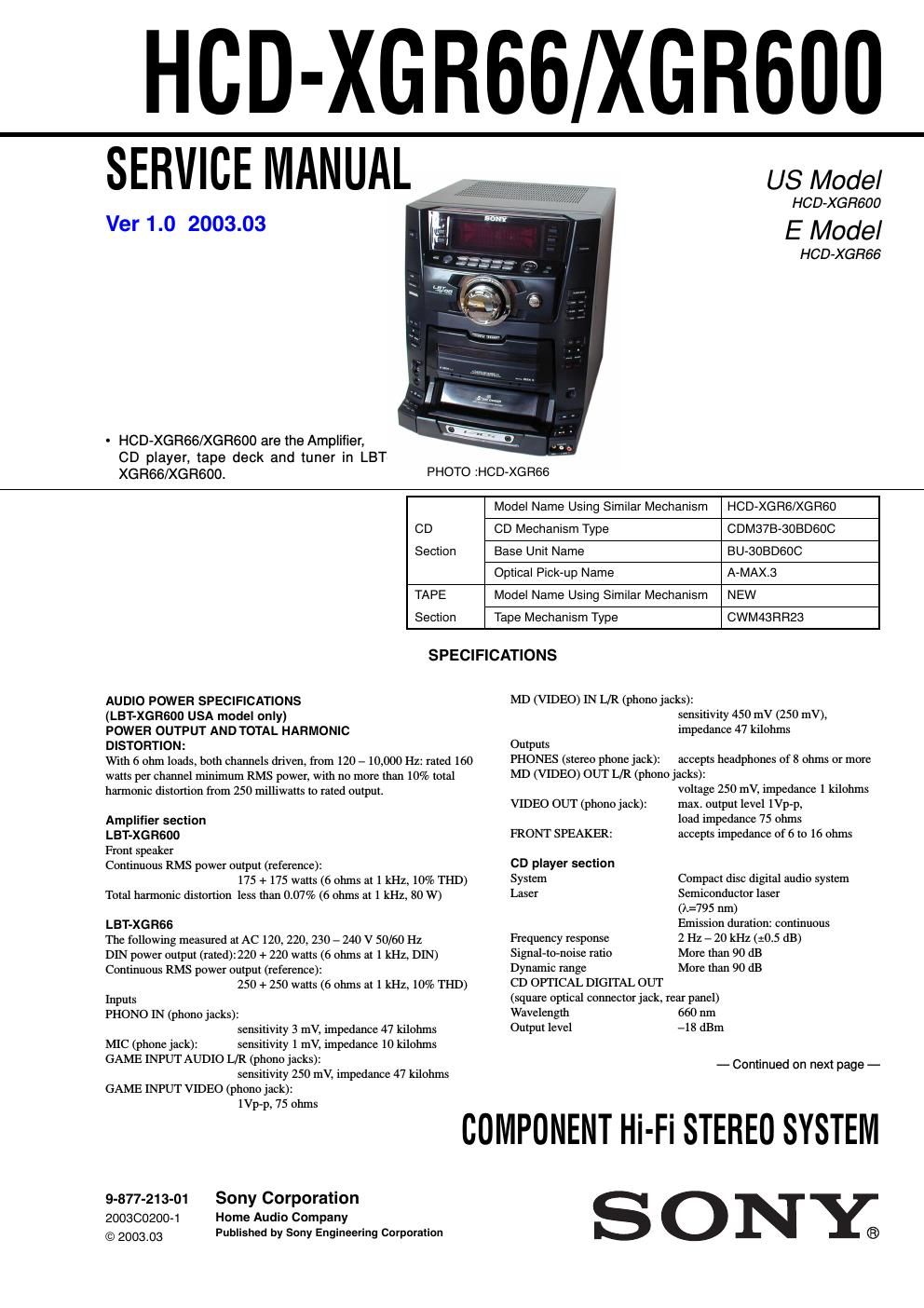

Page 1

HCD-XGR66/XGROOO

US Model

HCD-XGH600

E Model

HCD-XGH66

SERVICE MANUAL

Ver 1.0 2003.03

- HCD-XGR66/XGR600 are the Amplifier,
CD player, tape deck and tuner in LBT
XGRGG/XGRGOO.

PHOTO :HCD-XGR66

Model Name Using Similar Mechanism HCD-XGRG/XGRBO
CD CD Mechanism Type CDM37B-3OBDGOC
Section Base Unit Name BU-3OBDSOC
Optical Pick-up Name A-MAX.3
TAPE Model Name Using Similar Mechanism NEW
Section Tape Mechanism Type CWM43RR23

SPECIFICATIONS

AUDIO POWER SPECIFICATIONS

(LBT-XGRGOD USA model only)

POWER OUTPUT ANDTOTAL HAFIMONIC

DISTOFITION:

With 6 ohm loads, both channels driven, from 120 - 10,000 Hz: rated 160
watts per channel minimum RMS power, with no more than 10% total
harmonic distortion from 250 milliwatts to rated outputi

Amplifier section
LBT-XGFISOO
Front speaker
Continuous RMS power output (reference):
175 + 175 watts (6 ohms at 1 kHz, 10% THD)
Total harmonic distortion less than 0.07% (6 ohms at 1 kHz, 80 W)

LBT-XGFISG
The following measured at AC 120, 220, 230 - 240 V 50/60 Hz
DlN power output (rated): 220 + 220 watts (6 ohms at 1 kHz, DIN)
Continuous RMS power output (reference):
250 + 250 watts (6 ohms at 1 kHz, 10% THD)

Inputs
PHONO IN (phono jacks):

sensitivity 3 mV, impedance 47 kilohms
MIC (phone jack): sensitivity 1 mV, impedance 10 kilohms

GAME INPUT AUDIO L/R (phono jacks):

sensitivity 250 mV, impedance 47 kilohms
GAME INPUT VIDEO @hono jack):

1Vp-p, 75 ohms

MD (VIDEO) IN L/R (phono jacks):
sensitivity 450 mV (250 mV),
impedance 47 kilohms
Outputs
PHONES (stereo phone jack): accepts headphones of 8 ohms or more
MD (VIDEO) OUT L/R (phono jacks):
voltage 250 mV, impedance 1 kilohms

VIDEO OUT (phono jack): max. output level le-p,
load impedance 75 ohms
FRONT SPEAKER: accepts impedance of 6 to 16 ohms

CD player section

System Compact disc digital audio system
Laser Semiconductor laser
0:795 nm)

Emission duration: continuous

Frequency response 2 Hz - 20 kHz (20.5 dB)

Signal-to-noise ratio More than 90 dB
Dynamic range More than 90 dB
CD OPTICAL DIGITAL OUT

(square optical connector jack, rear panel)
Wavelength 660 nm

Output level -1 8 dBm

- Continued on next page -

COMPONENT Hi-Fi STEREO SYSTEM

Sony Corporation

Home Audio Company
Published by Sony Engineering Corporation

9-877-213-01
200300200-1
© 2003.03

SONY;

Page 2

HCD-XGR66/XGR6OO

Tape deck section
Recording system
Frequency response

4-track 2-channel, stereo
50 - 13,000 Hz (:3 dB),
using Sony TYPE I cassettes

Tuner section

FM stereo, FM/AM superheterodyne tuner

FM tuner section

Tuning range

North American model: 87.5 - 108.0 MHz (100 kHz step)
Other models: 87.5 - 108.0 MHz (50 kHz step)
Antenna FM lead antenna

Antenna terminals 75 ohms unbalanced

Intermediate frequency 10.7 MHz
AM tuner section
Tuning range
Pan-American models: 530 - 1,710 kHz
(with the tuning interval set at 10 kHz)
53 1 - 1,710 kHz
(with the tuning interval set at 9 kHz)
Other models: 530-1,710kHz
(with the tuning interval set at 10 kHz)
531 - 1,602 kHz
(with the tuning interval set at 9 kHz)
Antenna AM loop antenna
Antenna terminals Extemai antenna terminal
Intermediate frequency 450 kHz
General
Power requirements
North American models: 120 V AC, 60 Hz
Other models: 120 V, 220 V or

230 - 240 V AC, 50/60 Hz
Adjustable with voltage selector
Power consumption
LBT-XGR600: 190 watts
LBT-XGR66: 290 watts
Dimensions (W/h/d) (Main Unit) Approx. 355 x 425 x 451 mm

Mass (Main Unit)

LBT-XGR600: Approx. 13.0 kg

LBT-XGR66: Approx. 15.1 kg

Supplied accessories: AM loop antenna (1)
FM lead antenna (1)
Speaker cords (2)
Speaker pads (8)

Remote Commander (1)
Batteries (2)

Design and specifications are subject to change without notice.

Notes on chip component replacement

0 Never reuse a disconnected chip component.

0 Notice that the minus side of a tantalum capacitor may be
damaged by heat.

Flexible Circuit Board Repairing

0 Keep the temperature of soldering iron around 270°C
during repairing

- Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).

0 Be careful not to apply force on the conductor when soldering
or unsoldering.

CAUTION

Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation
exposure.

CLASS 1 LASER PRODUCT
LUOKAN l LASERLAITE
KLASS 1 LASERAPPARAT

This appliance is classified as a CLASS 1 LASER product. The
CLASS 1 LASER PRODUCT MARKING is located on the rear
exterior.

CAUTION : lNVlSlELE LASER RADlAHON WHEN OPEN AND
lNTERLOCKS DEFEATED AVOlD EXPOSURE TO BEAM
ADVARSEL : ustuo LASERSTRAUNG VED ABNING NAR
SIKKERHEDSAFERVDERE ER UDE AF FUNKTlDN uNoeA UDSAEITELSE
FOR STRAUNG

VORSICHT : UNSlCHTBARE LASERSYRAHLUNG wENN
AEDECKUNG GEOFFNEY mm SlCHEREIYSVERRlEGELUNG
UBERERUCKT mew DEM STHAHL AUSSETZEN

VA R O I : AVAWAESSA m suomwws DHlTElTAESSA OLET AU
mm NAKVMATYOMALLE LASERSATElLVLLE. ALA KAYSO SAIEESEEN
VA R N | N G ' DSYNLWG LASERSTRAUNG NAR DENNA DEL AR OPPNAD
OCH SPARREN AR URKOPPLAD mam-ms EJ STRALEN

ADVERS E L : ustuo LASERSYRAUNG NAR DEKSEL APNEs oo
SIKKERHEDSLAS BRVTES UNNGA EKSPONERWG an srRAtEN
VIGYAZATl : A auaKoLAT NYlTASAKDR LAIHATAILAN LEZERsu
GARVESZELVV KEKULJE A BESUGARZAST'
