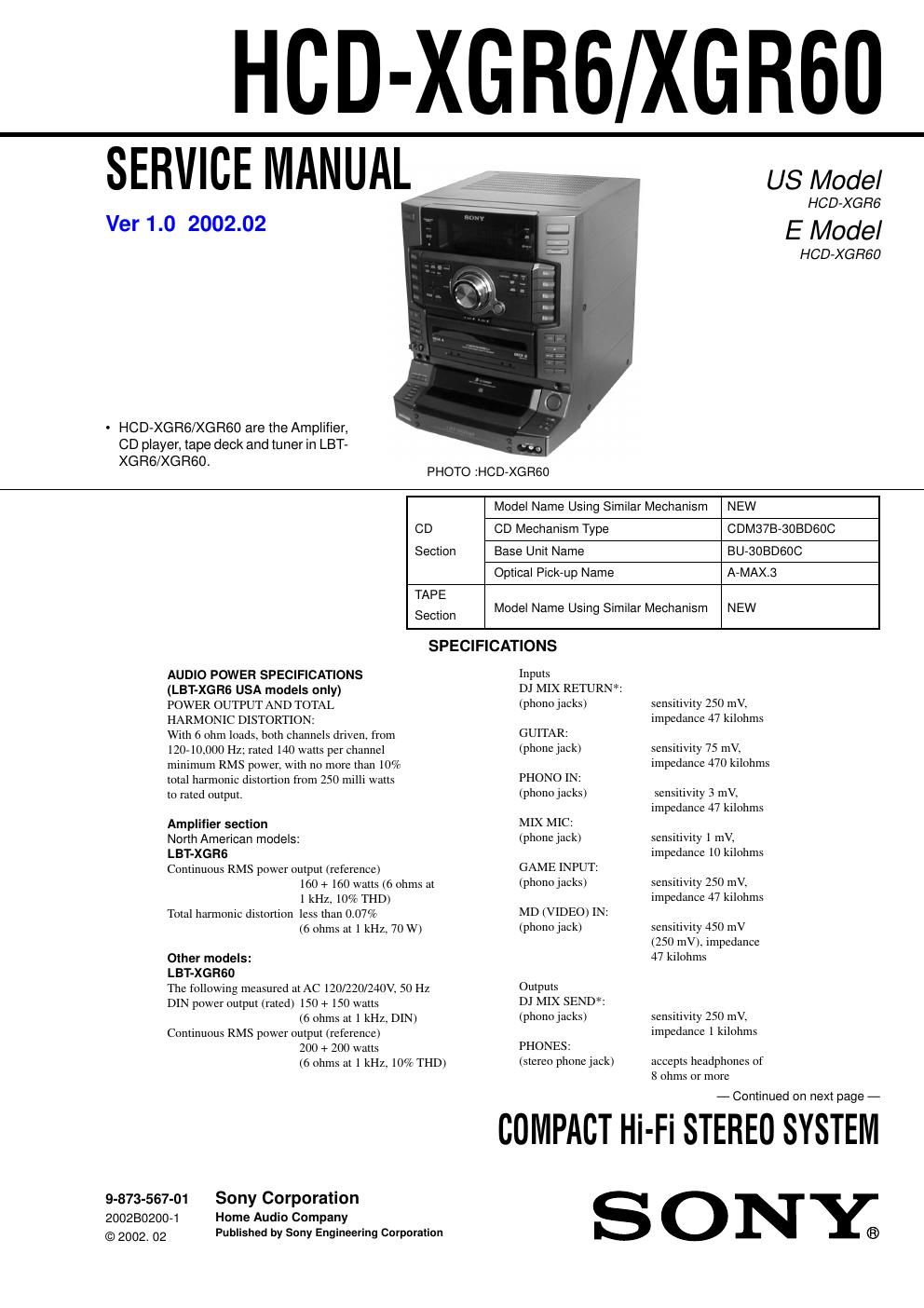

Page 1

HCD-XGRS/XGRSU

US Model

SERVICE MANUAL

HCD-XGRB
Ver 1.0 2002.02 E MOde/
HCD-XGFI60
- HCD-XGR6/XGR6O are the Amplifier,
CD player, tape deck and tuner in LBT-
XG R6/XG R60.
PHOTO :HCD-XGRGO
Model Name Using Similar Mechanism NEW
CD CD Mechanism Type CDM37B-3OBD60C
Section Base Unit Name BU-3OBD600
Optical Pick-up Name A-MAX.3
TAPE
Section Model Name Usmg Similar Mechanism NEW
SPECIFICATIONS
AUDIO POWER SPECIFICATIONS Inputs
(LBT-XGRG USA models only) DJ MIX RETURN*:
POWER OUTPUT AND TOTAL (phone jacks} sensitivity 250 mV,
HARMONIC DISTORTION: impedance 47 kiiohms
With 6 ohm loads, both channels driven, from GUITAR:
120-10,000 Hz; rated 140 watts per channel (phone jack) sensitivity 75 mV,
minimum RMS power, with no more than 10% impedance 470 kilohms
total harmonic distortion from 250 milli watts PHONO IN:
to rated output. (phono jacks) sensitivity 3 mV,
impedance 47 kilohms
Amplifier section MIX MIC:
North American models: (Phoneiacb Sensitivity 1 mV,
LBT-XGRG impedance 10 kilohms
Continuous RMS power output (reference) GAME INPUT:
160 + 160 watts (6 ohms at (phono jacks) sensitivity 250 mV,
1 kHz, 10% THD) impedance 47 kilohms
Total harmonic distortion less than 0.07% MD (VIDEO) IN:
(6 ohms at 1 kHz, 70 W) (phono jack) sensitivity 450 mV
(250 mV), impedance
Other models: 47 kiiohms
LBT-XGRGO
The following measured at AC 120/220/240V, 50 Hz OHIPJls
DIN power output (rated) 150 + 150 watts DJ MIX SEND:
(6 ohms at 1 kHz, DIN) (phono jacks) sensitivity 250 mV,
Continuous RMS power output (reference) impedance 1 kilohms
200 + 200 watts PHONES:
(6 ohms at 1 kHz, 10% THD) (stereo phone jack) accepts headphones of

8 ohms or more

- Continued on next page -

COMPACT Hi-Fi STEREO SYSTEM
9-873-567-01 Sony Corporation 0
2002802004 Home Audio Company
© 2002 02 Published by Sony Engineering Corporation N Y®

Page 2

HCD-XGRG/XGRGO

MD (VIDEO) OUT:

(phono jacks) voltage 250 mV
impedance 1 kilohms

FRONT SPEAKER: accepts impedance of 6 to

16 ohms

* North American and Mexican models only

CD player section
System

Laser

Frequency response

Compact disc and digital
audio system
Semiconductor laser
(1:795 nm), Emission
duration: continuous

2 Hz - 20 kHz (i0.5 dB)

General
Power requirements

North American models:

Mexican model:
Other models:

Power consumption
U.S.A. models:
LBT-XGR6

Other models:
LBT-XGR60
Dimensions (w/h/d)
Mass :

LBT-XGR6
LBT-XGR60

120 V AC, 60 Hz

120 V AC, 60 Hz

120 V, 220 V or 230 -
240 V AC, 50/60 Hz
Adjustable with voltage
selector

240 watts

180 watts
Approx. 355 X 425 X 451 mm

Approx. 13.0 kg
Approx. 14.7 kg

Signal-to-noise ratio More than 90 dB
Dynamic range More than 90 dB
CD OPTICAL DIGITAL OUT

(Square optical connectorjack, rear panel)
Wavelength: 660 nm

Output level -18 dBm

Tape player section
Recording system
Frequency response

Tuner section

4-track 2-channel stereo
40 -13,000 Hz (i3 dB),
using Sony TYPE I cassette

FM stereo, FM/AM superheterodyne tuner

FM tuner section
Tuning range

North American models:

Other models:

Antenna
Antenna terminals
Intermediate frequency

AM tuner section
Tuning range
Pan- American models:

Other models:

Antenna
Antenna terminals
Intermediate frequency

87.5 - 108.0 MHz
(100 kHz step)

87.5 - 108.0 MHz
(50 kHz step)

FM lead antenna

75 ohms unbalanced
10.7 MHz

530- 1,710 kHz

(with the interval set at 10 kHz)
531 - 1,710 kHz

(with the interval set at 9 kHz)
531 - 1,602 kHz

(with the interval set at 9 kHz)
530- 1,710 kHz

(with the interval set at 10 kHz)
AM loop antenna

External antenna terminal

450 kHz

Supplied accessories: AM loop antenna (1)
FM lead antenna (1)
Speaker cords (2)
Speaker pads (8)
Remote commander (1)
Batteries (2)

Design and specifications are subject to change without notice.

Notes on chip component replacement

- Never reuse a disconnected chip component.

- Notice that the minus side of a tantalum capacitor may be
damaged by heat

Flexible Circuit Board Repairing

- Keep the temperature of soldering iron around 270°C
during repairing.

- Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).

- Be careful not to apply force on the conductor when soldering
or unsoldering.

CAUTION

Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation
exposure.

CLASS 1 LASER PRODUCT
LUOKAN 1 LASERLAITE

KLASS 1 LASERAPPARAT

This appliance is classified as a CLASS 1 LASER product. The
CLASS 1 LASER PRODUCT MARKING is located on the rear
exterior.

CAUTION . lNVlslBLE LASER RADWION WHEN OPEN AND
lNTERLocKs oars/rm: AVOlD Exposuwz m BEAM
ADVAFlSEL : USYNLlG LASERSTRAUNG on AEMNG NAR
SlKKERHEDSAFERVDERE ER qu AF FUNKTlON uNDoA UDSAEWELSE
Eon smAtwe

VORSICHT ' UNSlCHTBARE LASERSTRAHLUNG WENN
Aauzcxwe 520mm uNo SlCHERElTSVERRlEGELuNG
dBERBRUCKT mew DEM STRAHL AUSSEIZEN

VA R O : AvArtAEssA JA squAtuKlTusoHlYEWAEssA OLET ALF
mm NAKYMATYOMALLE tnsznsnamrs ALA KATSO sArEEsEEN
VA R N | N G : DSYNLlNG LASERSTRAUNG NAR DENNA DEL AR UPPNAD
OCH SPARREN AR momma EETRAKTA EJ STRALEN

ADVERS E l. . ustLlG LASERSYRAUNG NAR DEKSEL APNES co
SlKKERHEDSLAS arms: UNNGA EKSVDNERlNG ran swarm
VIGVAZATJ : A summon Nvmisnxoa LATHATATLAN LEZERSUV
GARVESZELY' KERULlE A BESUGARZASU
