Sony hcd xg 60 service manual
This is the 80 pages manual for sony hcd xg 60 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony hcd xg 60 service manual (Ocr-read)

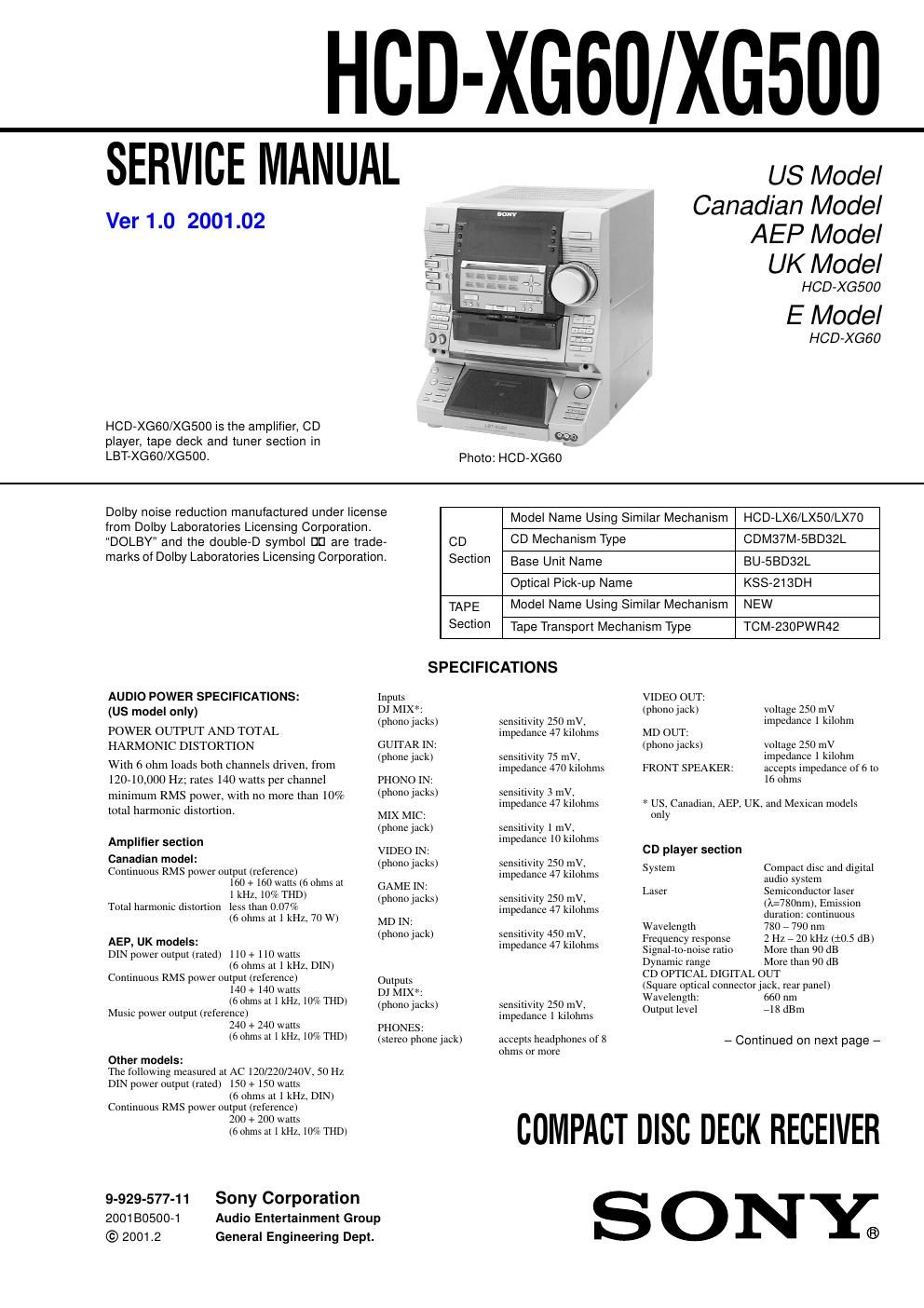

Page 1
2 HCD-XG60/XG500 Tape player section Recording system 4-track 2-channel stereo Frequency response 40 – 13,000 Hz (±3 dB), (DOLBY NR OFF) using Sony TYPE I cassette 40 – 14,000 Hz (±3 dB), using Sony TYPE II cassette Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner section Tuning range US, Canadian models: 87.5 – 108.0 MHz (100 kHz step) Other models: 87.5 – 108.0 MHz (50 kHz step) Antenna FM lead antenna Antenna terminals 75 ohm unbalanced Intermediate frequency 10.7 MHz AM tuner section Tuning range US, Canadian, Mexican, Argentina models: 530 – 1,710 kHz (with the interval set at 10 kHz) 531 – 1,710 kHz (with the interval set at 9 kHz) Other models: 531 – 1,602 kHz (with the interval set at 9 kHz) Singapore model: 531 – 1,602 kHz (with the interval set at 9 kHz) 530 – 1,710 kHz (with the interval set at 10 kHz) Antenna AM loop antenna Antenna terminals External antenna terminal Intermediate frequency 450 kHz General Power requirements US, Canadian models: 120 V AC, 60 Hz AEP, UK models: 230 V AC, 50/60 Hz Mexican model: 120 V AC, 50/60 Hz Other models: 120 V, 220 V or 230 – 240 V AC, 50/60 Hz Adjustable with voltage selector Power consumption US model:240 watts Canadian model:320VA AEP, UK models: 220 watts 0.6 watts (at the power saving mode) Other models: 180 watts Dimensions (w/h/d) Approx. 355 x 425 x 450 mm Mass : HCD-XG500 Approx. 13.5 kg HCD-XG60 Approx. 15.0 kg Supplied accessories: AM loop antenna (1) FM lead antenna (1) Speaker cords (2) Speaker pads (8) Remote commander (1) Batteries (2) Design and specifications are subject to change without notice.
Page 2
3 HCD-XG60/XG500 TABLE OF CONTENTS 1. SERVICING NOTES ................................................ 5 2. GENERAL Location of Controls ....................................................... 6 Setting the Time .............................................................. 7 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 8 3-2. Case ................................................................................. 8 3-3. Front Panel Section ......................................................... 9 3-4. Cover (TC), Tape Mechanism Deck (TCM-230PWR42) ......................................................... 9 3-5. MAIN Board, Fan, D.C. (M901) (Except AEP, UK Models) .............................................. 10 3-6. MAIN Board (AEP, UK Models) ................................... 10 3-7. CD Mechanism Deck (CDM37M-5BD32L) .................. 11 3-8. Base Unit (BU-5B32L) ................................................... 12 3-9. Disc Table ........................................................................ 12 4. TEST MODE .............................................................. 13 5. MECHANICAL ADJUSTMENTS ....................... 15 6. ELECTRICAL ADJUSTMENTS Deck section .................................................................... 15 CD Section ...................................................................... 18 7. DIAGRAMS 7-1. Block Diagram – CD SERVO Section –....................... 19 7-2. Block Diagram – TUNER/TAPE DECK Section –...... 20 7-3. Block Diagram – MAIN Section –................................ 21 7-4. Block Diagram – DISPLAY/KEY CONTROL/ POWER SUPPLY Section –........................................... 22 7-5. Note for Printed Wiring Boards and Schematic Diagrams ....................................................... 23 7-6. Printed Wiring Board – BD Board –............................. 24 7-7. Schematic Diagram – BD Board –................................ 25 7-8. Printed Wiring Boards – CD MOTOR Section –.......... 26 7-9. Schematic Diagram – CD MOTOR Section –.............. 27 7-10. Printed Wiring Board – AUDIO Board –...................... 28 7-11. Schematic Diagram – AUDIO Board –......................... 29 7-12. Printed Wiring Board – LEAF SW Board –.................. 30 7-13. Schematic Diagram – LEAF SW Board –..................... 30 7-14. Schematic Diagram – MAIN Board (1/3) –.................. 31 7-15. Schematic Diagram – MAIN Board (2/3) –.................. 32 7-16. Schematic Diagram – MAIN Board (3/3) –.................. 33 7-17. Printed Wiring Board – MAIN Board –........................ 34 7-18. Printed Wiring Board – PA Board –.............................. 36 7-19. Schematic Diagram – PA Board –................................. 37 7-20. Printed Wiring Boards – MIC/FRONT INPUT/ HEADPHONES Boards –............................................... 38 7-21. Schematic Diagram – MIC/FRONT INPUT/ HEADPHONES Boards –............................................. 39 7-22. Printed Wiring Board – PANEL FL Board –................ 40 7-23. Schematic Diagram – PANEL FL Board –................... 41 7-24. Printed Wiring Boards – PANEL VR/ILLUMINATION Boards –..................... 42 7-25. Schematic Diagram – PANEL VR/ILLUMINATION Boards –..................... 437-26. Printed Wiring Boards – TC-A/TC-B/CD-L/ CD-R (1)/CD-R (2) Boards –......................................... 44 7-27. Schematic Diagram – TC-A/TC-B/CD-L/ CD-R (1)/CD-R (2) Boards –......................................... 45 7-28. Printed Wiring Board – TRANSFORMER Section–.... 46 7-29. Schematic Diagram – TRANSFORMER Section–....... 46 7-30. IC Pin Function Description ........................................... 50 8. EXPLODED VIEWS 8-1. Case, Back Panel Section ................................................ 55 8-2. Front Panel Section-1 ...................................................... 56 8-3. Front Panel Section-2 ...................................................... 57 8-4. Chassis Section ............................................................... 58 8-5. Tape Mechanism Deck Section-1 (TCM-230PWR42) ......................................................... 59 8-6. Tape Mechanism Deck Section-2 (TCM230PWR42) ........................................................... 60 8-7. CD Mechanism Deck Section (CDM37M-5BD32L) .... 61 8-8. Base Unit Section (BU-5BD32L) ................................... 62 9. ELECTRICAL PARTS LIST ............................... 63
