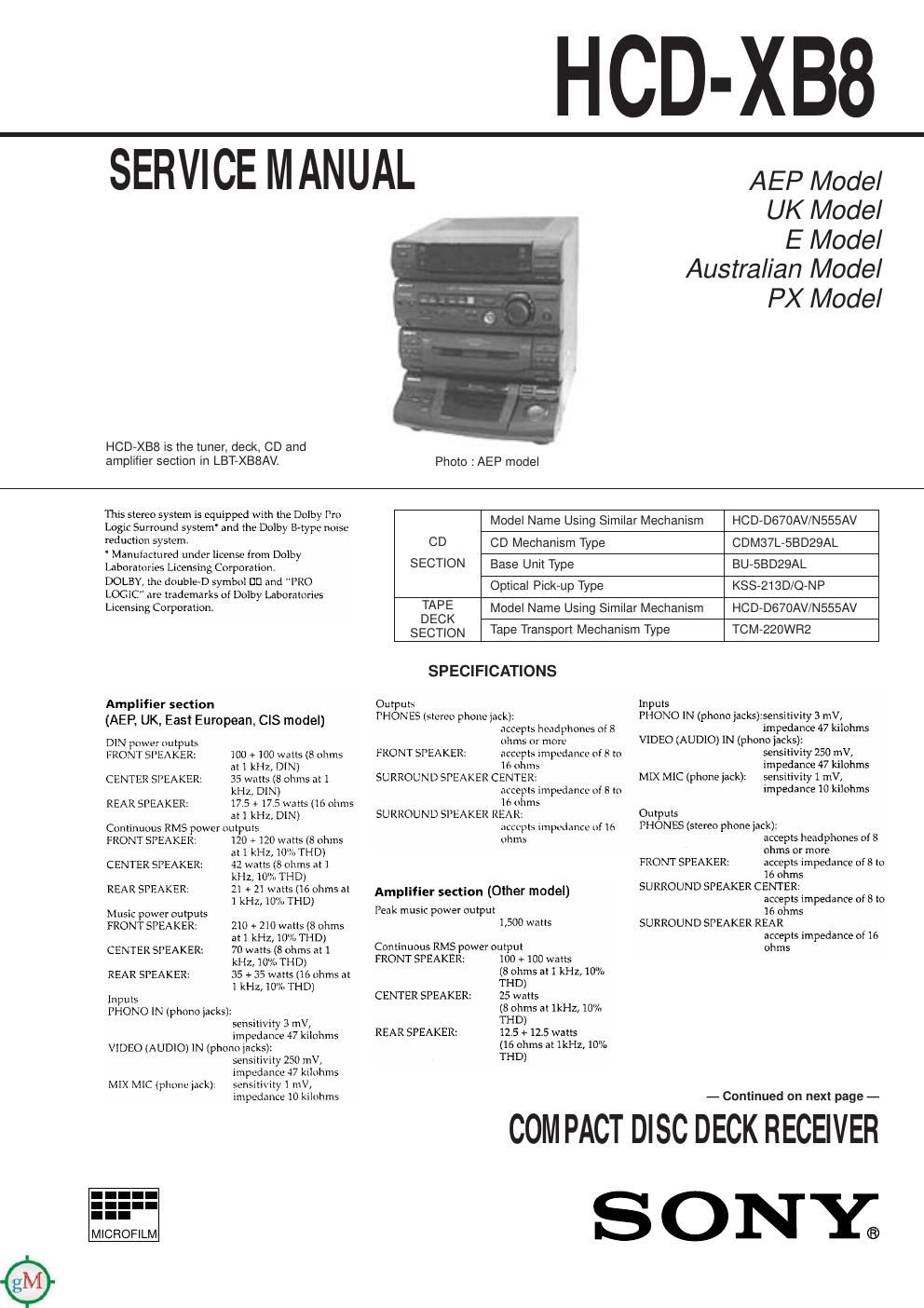

Page 1

HCD-XB8

SERVICE MANUAL

HCD-XBS is the tuner, deck, CD and
amplifier section in LBT-XBBAV.

Photo :AEP model

AEP Model

UK Model

E Model
Australian Model
PX Model

This stereo system is equipped with the Dolby Pro
Logic Surround system and the Dolby B-type noise
reduction system.

' Manufactured under license from Dolby
Laboratories Licensing Corporation.

DOLBY, the double-D symbol DD and "PRO
LOGIC are trademarks of Dolby Laboratories
Licensing Corporation.

Amplifier section
(AEP, UK, East European, CIS model)

DIN power outputs

FRONT SPEAKER: 100 + 100 watts (8 ohms
at 1 kHz, DIN)

CENTER SPEAKER: 35 watts (8 ohms at 1
kHz, DIN)

REAR SPEAKER: 17.5 +1715 watts (16 ohms

at 1 kHz, DlN)
Continuous RMS power outputs

FRONT SPEAKER: 120 + 120 watts (8 ohms
at I kHz,10"/ATHD)

CENTER SPEAKER: 42 watts (8 ohms at I
kHz, 10% THD)

REAR SPEAKER: 21 + 21 watts (16 ohms at
1 kHz, 1 i'itTHD)

Music power outputs

FRONT SPEAKER: 210 + 210 watts (8 ohms
at 1 kHz,10%THD)

CENTER SPEAKER: 70 watts (8 ohms at 1
kHz, 10% THD)

REAR SPEAKER: 35 + 35 watts (16 ohms at
1 kHz, 10% THD)

Inputs

PHONO IN (phone jacks):
sensitivity 3 mV,
impedance 47 kilohrns
VIDEO (AUDIO) 1N (phono jacks):
sensitivity 250 mV,
impedance 47 kiltihms
sensitivtty 1 mV,
impedance 10 kilohms

MIX MIC (plume iack)

.-
MICROFILM

Model Name Using Similar Mechanism HCD-DS7OAV/N555AV
CD CD Mechanism Type CDM37L-SBD29AL
SECTION Base Unit Type BU-SBD29AL
Optical Pick-up Type KSS-213DlQ-NP
$22!; Model Name Using Similar Mechanism HCD-DG70AV/N555AV
SECTION Tape Transport Mechanism Type TCM-ZZOWRZ
SPECIFICATIONS
Outputs Inputs
PHONES (stereo phone jack): PHONO IN (phone jacks):sensitivity 3 mV,
accepts headphones of B impedance 47 kilohrns
ohms or more VIDEO (AUDIO) IN (phone jacks):
FRONT SPEAKER: accepts lmPLLIAHCL of 8 to sensitivity 250 mV,
16 ohms impedance 47 kilohms
SURROUND SPEAKER CENTER: MIX MIC (Phone iack): sensitivity 1 mV,
accepts impedance of 8 lo impedance 10 kilohms
16 ohms
SURROUND SPEAKER REAR: Outputs

accepts IlItpL'tIflnCt of 16
ohms

Amplifier section [Other model]

Peak music power output
1500 watts

Continuous RMS power output

FRONT SPEAKER: 100 + 100 watts

(8 ohms at 1 kHz, 10%
THD)

25 Watts

(8 ohms at lkHz, 10%
THD)

12.5 + 12.5 watts

(16 ohms at lid-{2, 10%
THD)

CENTER SPEAKER:

REAR SPEAKER:

COM PACT

PHONES (stereo phone jack):
accepts headphones of 8
ohms or more
accepts impedance of 8 to
16 ohms
SURROUND SPEAKER CENTER:
accepts impedance of B to
16 ohms
SURROUND SPEAKER REAR
accepts impedance of 16
ohms

FRONT SPEAKER:

- Continued on next page -

DISC DECK RECEIVER

SONY;
