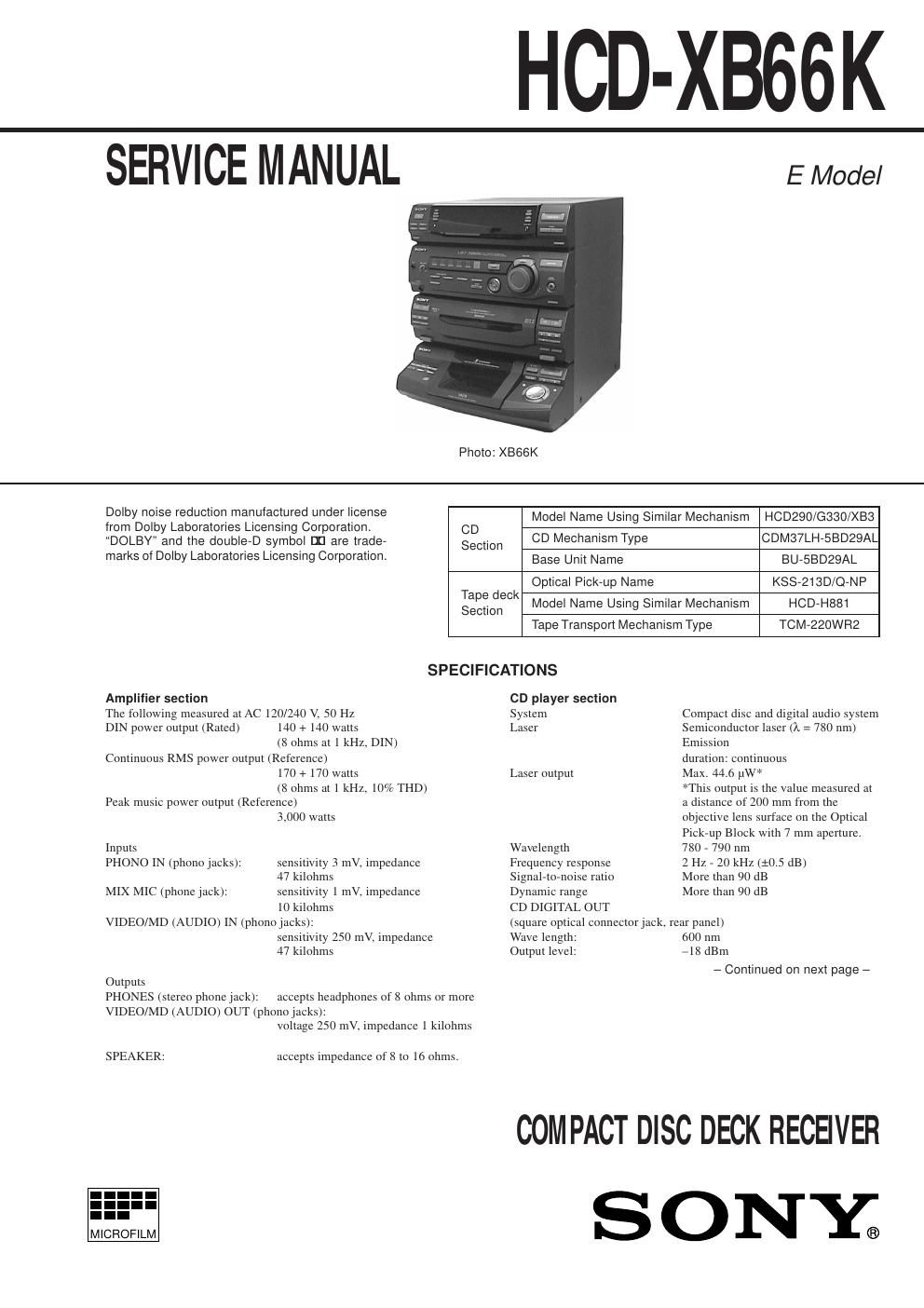

Sony hcd xb 66

Page 1

Ð 2 Ð TABLE OF CONTENTS 1. SERVICING NOTES ............................................... 3 2. GENERAL ................................................................... 4 3. DISASSEMBLY ......................................................... 7 4. TEST MODE .............................................................. 15 5. MECHANICAL ADJUSTMENTS ........................ 17 6. ELECTRICAL ADJUSTMENTS TAPE DECK Section ...................................................... 17 CD Section ...................................................................... 20 7. DIAGRAMS 7-1. IC Pin Function Description ........................................... 22 7-2. Block Diagram Ð CD Section Ð ..................................... 27 7-3. Block Diagr am Ð Tape Deck Section Ð ......................... 29 7-4. Block Diagram Ð Main Section (1/2) Ð ......................... 31 7-5. Block Diagram Ð Main Section (2/2) Ð ......................... 33 7-6. Block Diagram Ð Display/Key Control/ P ower Supply Section Ð .................................................. 35 7-7. Circuit Boards ................................................................. 37 7-8. Printed Wiring Board Ð CD Section (1/2) Ð .................. 39 7-9. Schematic Diagram Ð CD Section (1/2) Ð ...................... 41 7-10. Printed Wiring Boards Ð CD Section (2/2) Ð ................ 43 7-11. Schematic Diagram Ð CD Section (2/2) Ð ...................... 45 7-12. Printed Wiring Boards Ð Tape Deck Section Ð .............. 47 7-13. Schematic Diagram Ð Tape Deck Section Ð ................... 49 7-14. Printed Wiring Board Ð Main Section Ð ........................ 51 7-15. Schematic Diagram Ð Main Section (1/3) Ð ................... 53 7-16. Schematic Diagram Ð Main Section (2/3) Ð ................... 55 7-17. Schematic Diagram Ð Main Section (3/3) Ð ................... 57 7-18. Printed Wiring Board Ð Power Amp Section Ð ............. 59 7-19. Schematic Diagram Ð Power Amp Section Ð ................. 61 7-20. Printed Wiring Board Ð Panel Section (1/3) Ð ............... 63 7-21. Schematic Diagram Ð Panel Section (1/3) Ð ................... 65 7-22. Printed Wiring Boards Ð Panel Section (2/3) Ð ............. 67 7-23. Schematic Diagram Ð Panel Section (2/3) Ð ................... 69 7-24. Printed Wiring Boards Ð Panel Section (3/3) Ð ............. 71 7-25. Schematic Diagram Ð Panel Section (3/3) Ð ................... 73 7-26. Printed Wiring Board Ð Power Supply Section Ð ........... 75 7-27. Schematic Diagram Ð Power Supply Section Ð .............. 76 7-28. Schematic Diagram Ð Key-Con Section Ð ...................... 77 7-29. Printed Wiriing Board Ð Key-Con Section Ð .................. 77 7-30. Waveforms ....................................................................... 79 7-31. IC Block Diagrams ......................................................... 80 8. EXPLODED VIEWS ................................................ 83 9. ELECTRICAL PARTS LIST ............................... 92 Tape player section Recording system 4-track 2-channel stereo Frequency response (DOLBY NR OFF) 60 - 13,000 Hz (±3 dB), using a Sony TYPE I cassette 60 - 14,000 Hz (±3 dB), using a Sony TYPE II cassette Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner sectionTuning range 87.5 - 108.0 MHz (50 kHz step) Antenna FM wire antenna Antenna terminals 75 ohm unbalanced Intermediate frequency 10.7 MHz AM tuner sectionTuning range (2 band model) 531 - 1,602 kHz (with the tuning interval set at 9 kHz) 530 - 1,710 kHz (with the tuning interval set at 10 kHz) (3 band model ) MW: 531 -1,602 kHz (with the tuning interval set at 9 kHz) LW: 153 - 279 kHz (with the tuning interval set at 3 kHz) Antenna AM loop antenna, External antenna terminals Intermediate frequency 450 kHz General Power requirements Mexican model: 120 V AC, 50/60 Hz Australian and South African models: 220 - 240 V AC, 50/60 Hz Other models: 110 -120 V or 220 -240 V AC, 50/60 Hz Adjustable with voltage selector Power consumption 320 watts Dimensions (w/h/d) Approx. 355 ´ 425 ´ 435 mm (14 ´ 16 3/4 ´ 17 1/4 in) incl. projecting parts and controls Mass Approx. 14.5 kg (31 lb 16 oz.) Supplied accessories AM loop antenna (1) Remote RM-SD70S (1) Size AA (R6) batteries (2) FM wire antenna (1) Speaker cords (2) Design and specifications are subject to change without notice.
