Sony hcd xb 33 service manual

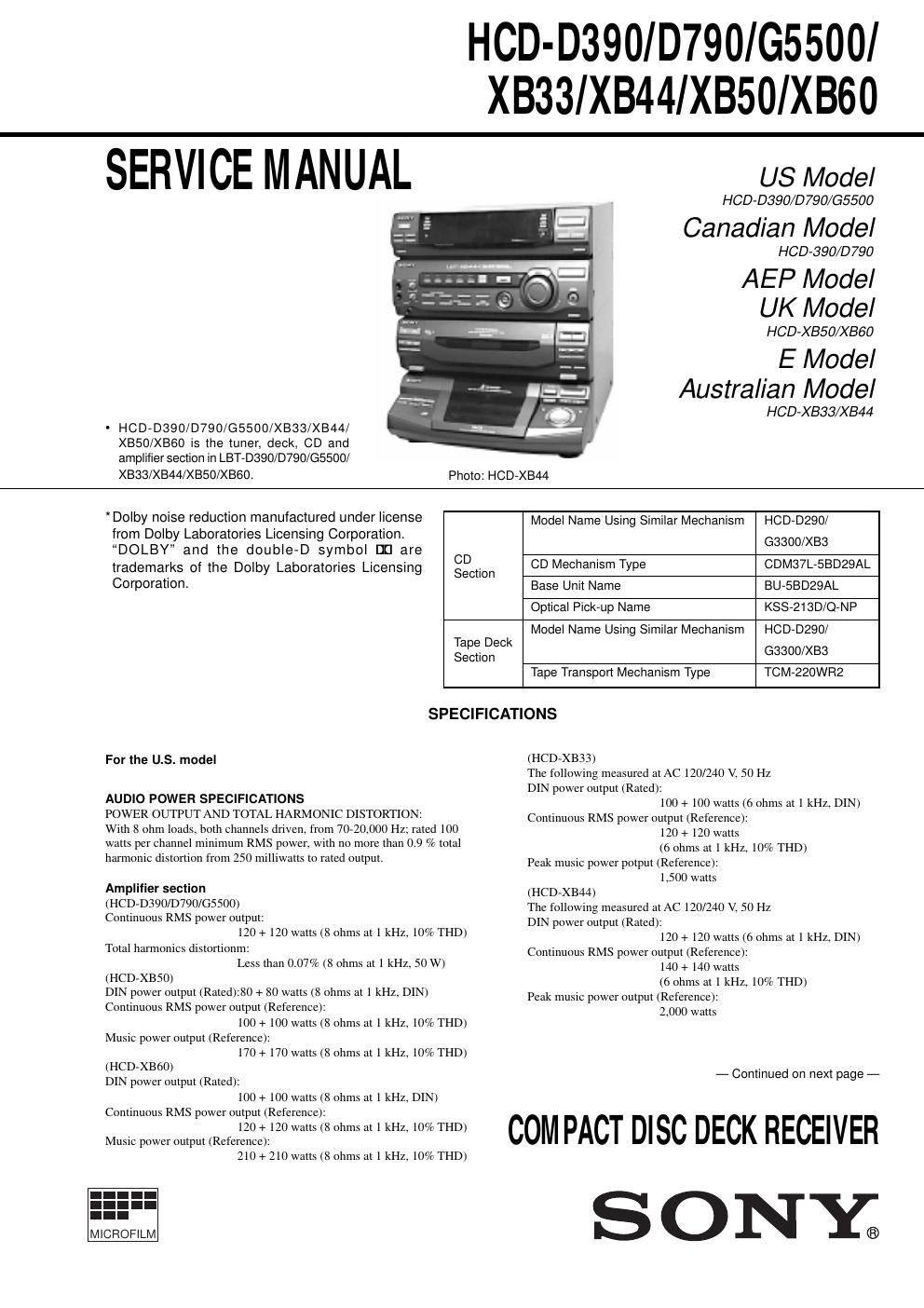

Page 1

Inputs PHONO IN (phono jacks): sensitivity 3 mV, impedance 47 kilohms MIX MIC (phone jack): sensitivity 1 mV, impedance 10 kilohms (HCD-D390/D790/G5500) VIDEO (AUDIO) IN (phono jacks): sensitivity 250 mV, impedance 47 kilohms (HCD-XB33/XB44/XB50/XB60) VIDEO/MD (AUDIO) IN (phono jacks): sensitivity 250 mV, impedance 47 kilohms Outputs PHONES (stereo phone jack): accepts headphones of 8 ohms or more (HCD-XB33/XB44/XB50/XB60) VIDEO/MD (AUDIO) OUT (phono jacks): voltage 250 mV, impedance 1 kilohm SPEAKER: (HCD-D390/D790/G5500/XB50/XB60) accepts impedance of 8 to 16 ohms (HCD-XB33/XB44) impedance of 6 to 16 ohms SURROUND SPEAKER: (HCD-D790/XB33/XB50/XB60 only) accepts impedance of 16 ohms CD player section System Compact disc and digital audio system Laser Semiconductor laser (l = 780nm). Emission duration: continuous Laser output Max. 44.6µW* *This output is the value measured at a distance of 200 mm from the objective lens surface on the Optical Pick-up Block with 7 mm aperture. Wavelength 780 Ð 790 nm Frequency response 2 Hz Ð 20 kHz (±0.5 dB) Signal-to-noise ratio More than 90 dB Dynamic range More than 90 dB (HCD-XB33/XB44/XB50/XB60) CD DIGITAL OUT (square optical connector jack, rear panel) Wave length: 600 nm Output level: Ð 18 dBm Tape player section Recording system 4-track 2-channel stereo Frequency response (DOLBY NR OFF) 60 Ð 13,000 Hz (±3 dB), using a Sony TYPE I cassette 60 Ð 14,000 Hz (±3 dB), using a Sony TYPE II cassette Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner sectionTuning range (2 band model) North American model:: 87.5 - 108.0 MHz (100 kHz step) Other models: 87.5 - 108.0 MHz (50 kHz step) (3 band model) 87.5 -108.0 MHz (50 kHz step) (4 band model) 87.5 -108.0 MHz (50 kHz step) 65.0 - 74.0 MHz (10 kHz step) OIRT UKV: 65.0 - 74.0 MHz (10 kHz step) POLAR STEREO Antenna FM wire antenna Antenna terminals 75 ohm unbalanced Intermediate frequency 10.7 MHz AM tuner sectionTuning range (2 band model) North American model: 530 Ð 1,710 KHz (with the tuning interval set at 10 kHz) 531 Ð 1,710 KHz (with the tuning interval set at 9 kHz) Other models: 531 Ð 1,602 kHz (with the tuning interval set at 9 kHz) 530 Ð 1,710 KHz (with the tuning interval set at 10 kHz) (3 band and 4 band models): MW: 531 Ð 1,602 kHz (with the tuning interval set at 9 kHz) LW: 153 Ð 279 kHz (with the tuning interval set at 3 kHz) Antenna AM loop antenna, External antenna terminals Intermediate frequency 450 kHz General Power requirements North American model: 120 V AC, 60 Hz European model: 230 V AC, 50/60 Hz Mexican model: 120 V AC, 50/60 Hz Australian and South African models: 220 Ð 240 V AC, 50/60 Hz Thailand model:: 220 Ð 240 V AC, 50/60 Hz Other models: 110 Ð 120 V or 220 Ð 240 V AC, 50/60 Hz Adjustable with voltage selector Power consumption (HCD-D390/G5500): 170 watts (HCD-D790): 198 watts (HCD-XB50): 190 watts (HCD-XB60): 230 watts (HCD-XB33): 240 watts (HCD-XB44): 250 watts Dimensions (w/h/d) Approx. 355 x 425 x 435 mm (14 x 16 3/4 x 17 1/4 in) incl. projecting parts and controls Mass (HCD-D390/G5500): Approx. 12.5 kg (27 lb 9 oz.) (HCD-D790/XB50/XB60): Approx. 13.0 kg (28 lb 11 oz.) (HCD-XB33/XB44): Approx. 14.0 kg (30 lb 14 oz.) Supplied accessories: AM loop antenna (1) Remote RM-SD70S (1) Size AA (R6) batteries (2) FM wire antenna (1) Speaker cords* (2) * except for HCD-D390/G5500/XB33/XB50 Design and specifications are subject to change without notice. Ñ 2 Ñ
