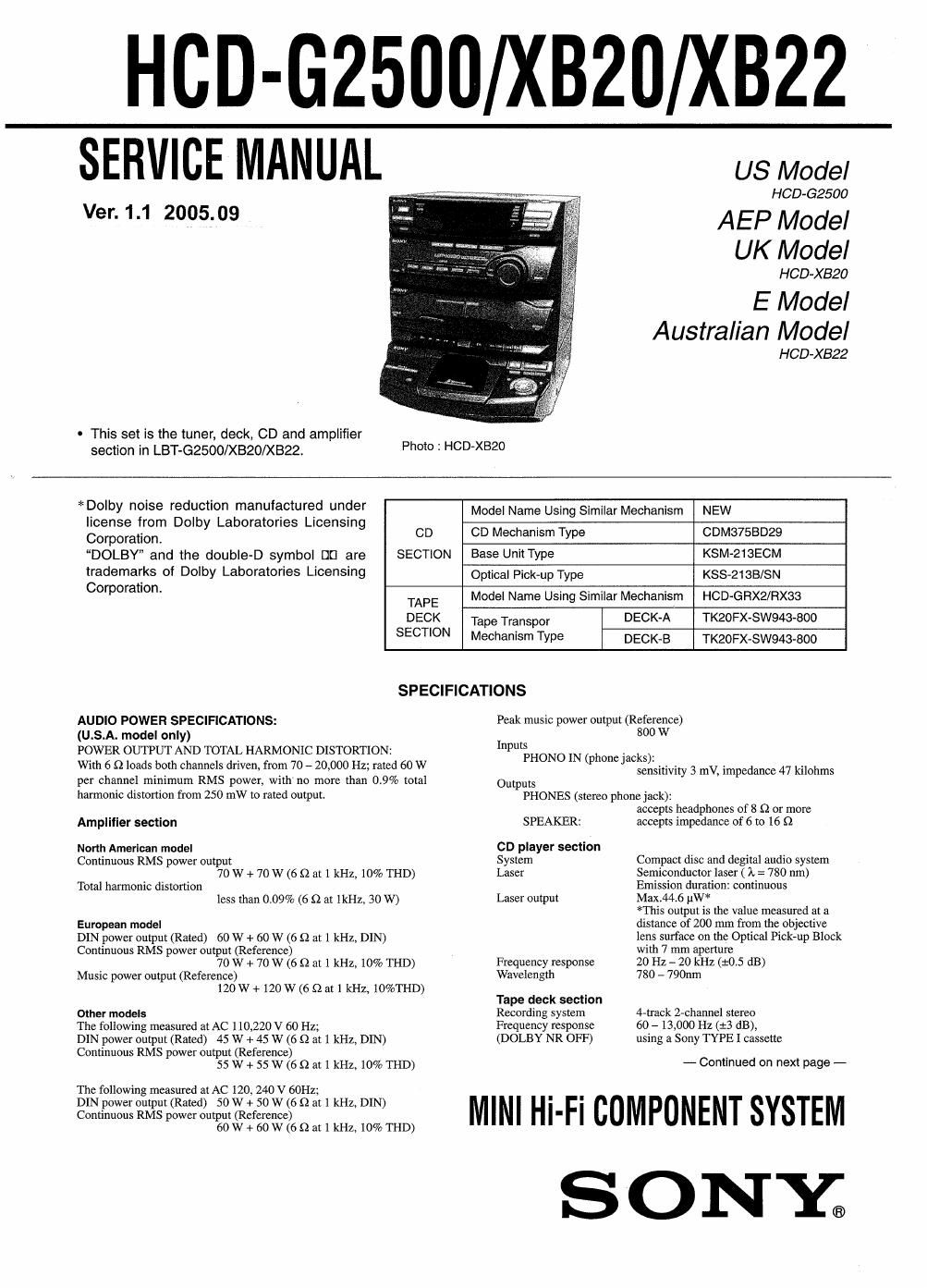

Sony hcd xb 22 service manual

Page 1

Ñ 2 Ñ Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner sectionTuning range 87.5 Ð 108.0 MHz Antenna FM lead antenna Antenna terminals 75 W unbalanced Intermediate frequency 10.7 MHz AM tuner sectionTuning range (2 band model) North American model: 530 Ð 1,710 kHz (with the tuning interval set at 10 kHz) Other models: 531 Ð 1,602 kHz (with the tuning interval set at 9 kHz) 530 Ð 1,710 kHz (with the tuning interval set at 10 kHz) (3 band model) MW: 531 Ð 1,602 kHz (with the tuning interval set at 9 kHz) LW: 153 Ð 279 kHz (with the tuning interval set at 3 kHz) Antenna AM loop antenna Antenna terminals External antenna terminal Intermediate frequency 450 kHz General Power requirements North American model: 120 V AC, 60 Hz Mexican model: 120 V AC, 50/60 Hz European model: 230 V AC, 50/60 Hz Australian, South African and Thailand models: 220 Ð 240 V AC, 50/60 Hz Other models: 110 Ð 120 V AC or 220 Ð 240 V AC, 50/60 Hz (adjustable with voltage selector) Power consumption 130 W Dimensions (w/h/d) incl. projecting parts and controls Approx.355 ´ 423 ´ 440 mm (14 ´ 16 3/4 ´ 17 3/8 in) Mass Approx. 14.0 kg (30 lb 14 oz.) Supplied accessories AM loop antenna (1) Remote RM-SG5 (1) FM lead antenna (1) Design and specifications are subject to change without notice. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Notes on chip component replacement ¥ Never reuse a disconnected chip component. ¥ Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing ¥ Keep the temperature of soldering iron around 270ûC during repairing. ¥ Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). ¥ Be careful not to apply force on the conductor when soldering or unsoldering. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. This caution label is located inside the unit. SERVICING NOTE NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
