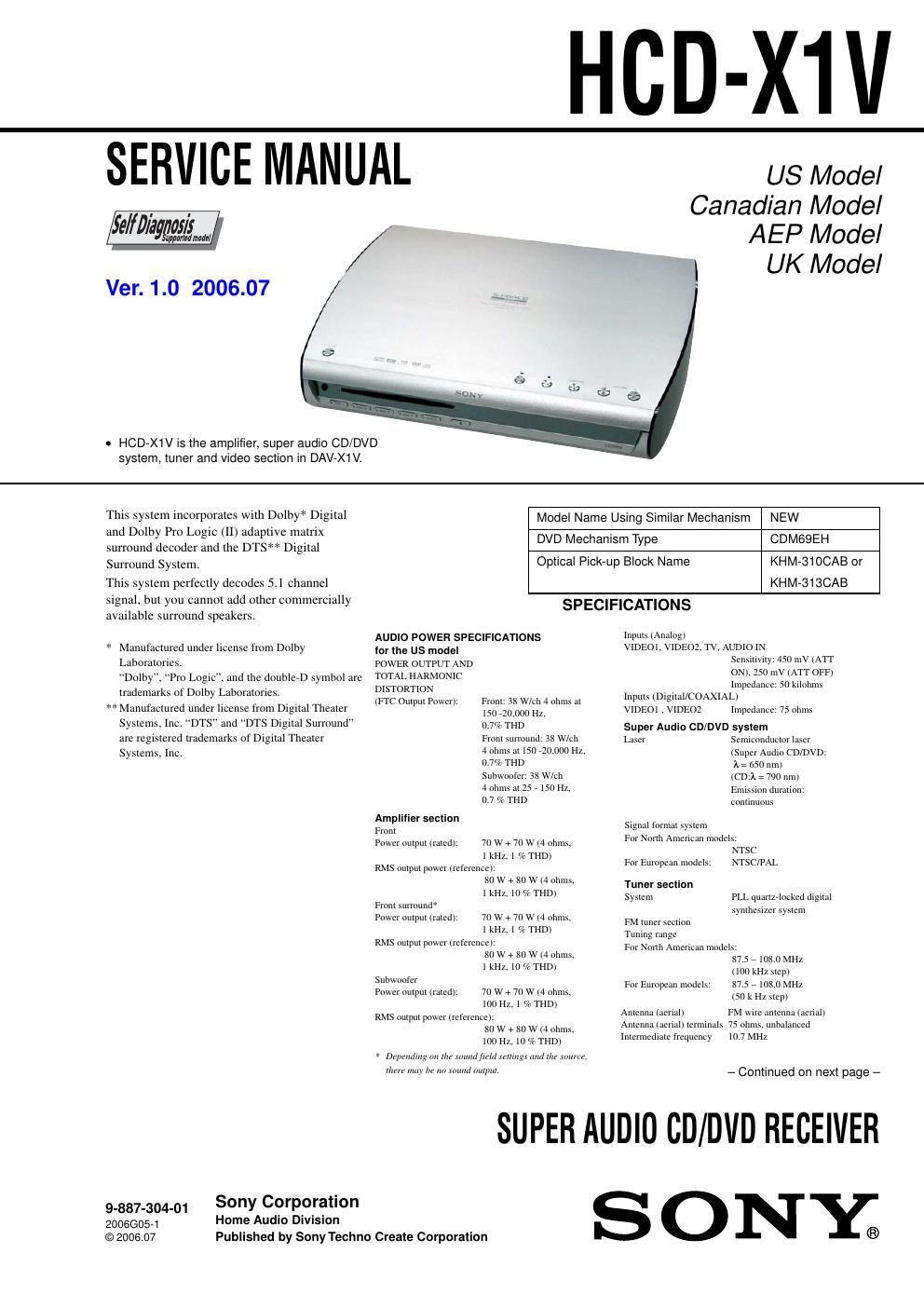

Page 1

HCD-X1V

SERVICE MANUAL

ie/I'D/ilgmm/

Ver. 1.0 2006.07

- HCD-X1V is the amplifier, super audio CD/DVD

system, tuner and video section in DAV-X1V.

US Model
Canadian Model
AEP Model

| UK Model

This system incorporates with Dolby* Digital
and Dolby Pro Logic (II) adaptive matrix
surround decoder and the DTS** Digital
Surround System.

This system perfectly decodes 5.1 channel
signal, but you cannot add other commercially
available surround speakers.

* Manufactured under license from Dolby
Laboratories.

Dolby. Pro Logic", and the tIoubIerD symbol are
irademarks el' Dolby Laboratories.

** Manufactured under license from Digital Theater
Systems, Inc. DTS and "DTS Digital Surround
are registered trademarks of Digital Theater
Systems. Inc.

Sony Corporation
Home Audio Division

9-887-304-01
2006G0571
© 2006.07

Model Name Using Similar Mechanism NEW

DVD Mechanism Type CDM69EH

Optical Pick-up Block Name KHM-31OCAB or
KHM-31SCAB

SPECIFICATIONS

AUDIO POWER SPECIFICATIONS
for the US model

POWER OUTPUT AND

TOTAL HARMONIC

DISTORTION

(FTC Output Power): Front: 38 W/ch 4 ohms at
150 - 0.000 Hz.
0 7% THIJ

Front surround, 38 W/ch
4 ohms at [50 40,000 Hz.
0.7% THIJ

Siibwoofei: 38 chh

4 ohms at 25 - lSO Hz.
0.7 1 THD

Amplifier section
Front
Power output (rtitcdt: 70 W + 70 W (4 ohms.
1 kHz. 1 7: THD)
RMS output power (icfereiice):
80 W + 80 W (4 ohms,
| kHz. 10% THDI
Front surround"
Power output (rlitcdt: 70 W + 70 W (4 ohms.
i kHz. i v. THD)
RMS output power (reference):
80 W + 80 W (4 ohms.
1 kHz. l0% THD)
Subwoofei
Power output (thdI: 70 W + 70 W (4 ohms.
|00 Hz. 1 % THDI
RMS output power (reference),
80 W + 80 W (4 ohms.
I00 Hz. l0 1 THU)

, DLpt'llr/lllx In) my .wmid field mum and me mun a.

llm 1' lmu be nu .ululul (Ill/pill,

Inputs (Analog)

VlDEOl. VIDEOZ. 'rv. AUDIO IN
Sensitivity: 450 niV (ATT
ON ). 250 mV (Arr om
Impedance: 50 kilohms

Inputs (Drgrtal/COAXIAL)

VIDEOI . VIDEOZ Impedance: 75 ohms

Super Audio CDlDVD system

Laser Semiconductor laser
(Super Audio (JD/DVD.
A. : (150 mm
(CD A = 790 um)
Emission duration:
Continuous

Signal format system
For North American models:
NTSC

For European models. NTSC/PAL

Tuner section
System l-LL quartz»|ocked digital
syiithesiLer system

FM tuner section

Tuning range

For North American models.

87.5 7 I081] MHZ

(100 kHz sthI

87.5 7 I080 MHZ

60 k Hz stcpl

Antenna (acrilii) FM wire antenna (aei-iali
Antenna (aerial) terminals 75 ohms. unbalanced
Intermediate frequency 10 7 MHz

For European models.

- Continued on next page -

SUPER AUDIO CD/DIID RECEIVER
