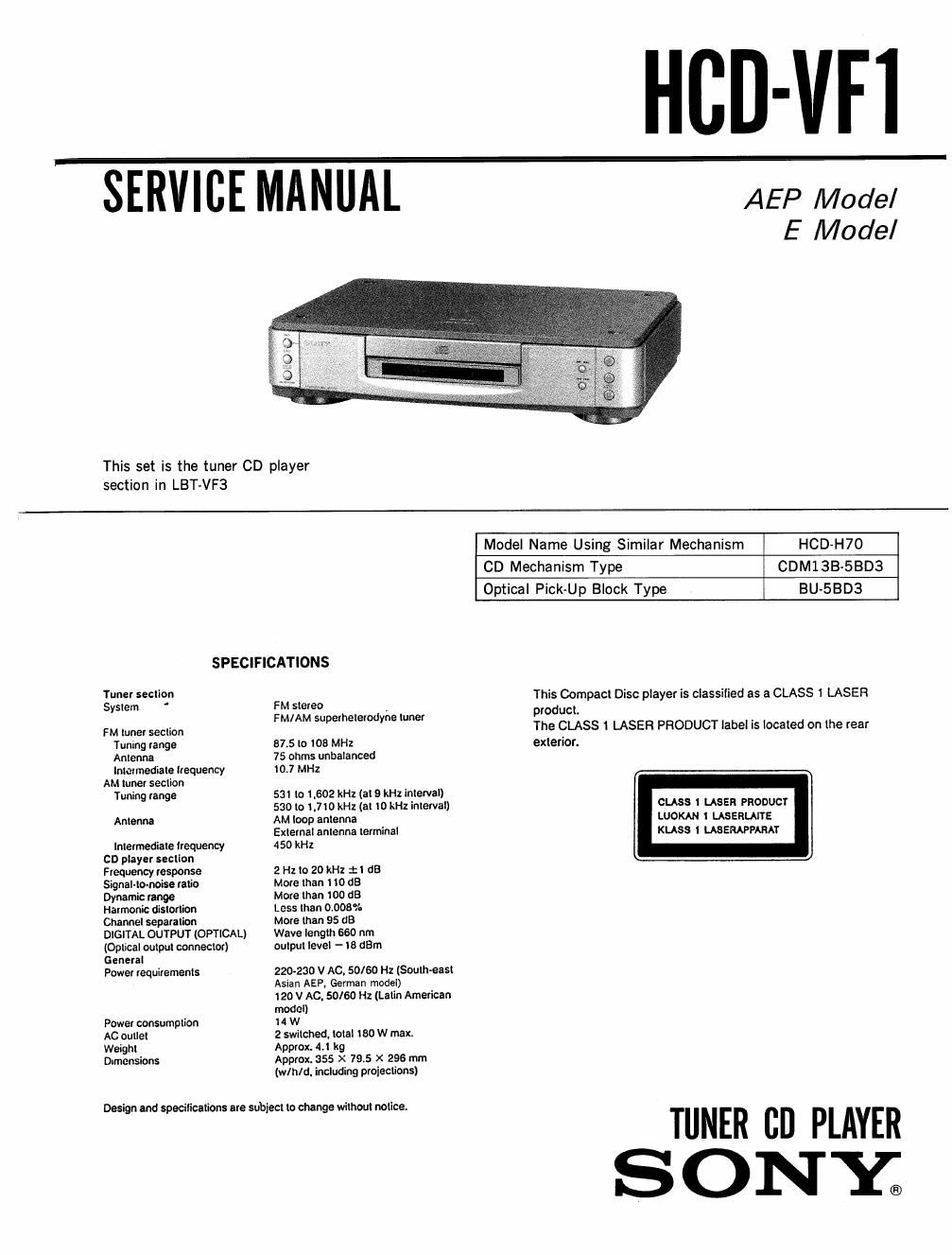

Page 1

SERVICE MANUAL

This set is the tuner CD player

section in LBT-VF3

HOD-VF]

AEP Model
E Model

SPECIFICATIONS
Tuner section
System " FM stereo p
FM/AM superheterodyne tuner
FM tuner section
Tumng range 87.5 to 108 MHz
Antenna 75 ohms unbalanced
Intermediate lrequency 10.7 MHz
AM luner section
Tuning range 531 to 1,602 kHz (at 9 kHz interval)
530 to 1.710 kHz (at 10 kHz interval)
Antenna AM loop antenna
External antenna terminal
Intermediate lrequency 450 kHz
CD player section
Frequency response 2 Hz to 20 kHz :1 dB
Signal~tomoise ratio More than I to dB
Dynamic range More than 100 dB
Harmonic distortion Less than 0.00 96
Channel separation More than 95 dB
DIGITAL OUTPUT (OPTICAL) Wave length 660 nm

(Optical autput connector)
General
Power requirements

Power consumption
AC outlet

Weight

Dimensions

autput level - 18 dBm

220-230 V AC. 50/60 Hz (South-east
Asian AEP, German model)

120 V AC. 50/60 Hz (Latin American
mudel)

14 W

2 switched. total 180 W max.
Approx. 4.1 kg

Approx. 355 X 79.5 X 296 mm
(w/hld. including prolections)

Design and specifications are subject to change without notice.

Model Name Using Similar Mechanism HCD-H7O
CD Mechanism Type CDM13B-SBD3
Optical Pick-Up Block Type BU-SBDB

This Compact Disc player is classified as 3 CLASS 1 LASER
product.
The CLASS 1 LASER PRODUCT label is located on the rear
exterior.

CLASS 1 LASER PRODUCT
LUOKAN 1 LASERLNTE

KLASS t LASERAPPARAT

TUNER CD PLAYER

SONIC.
