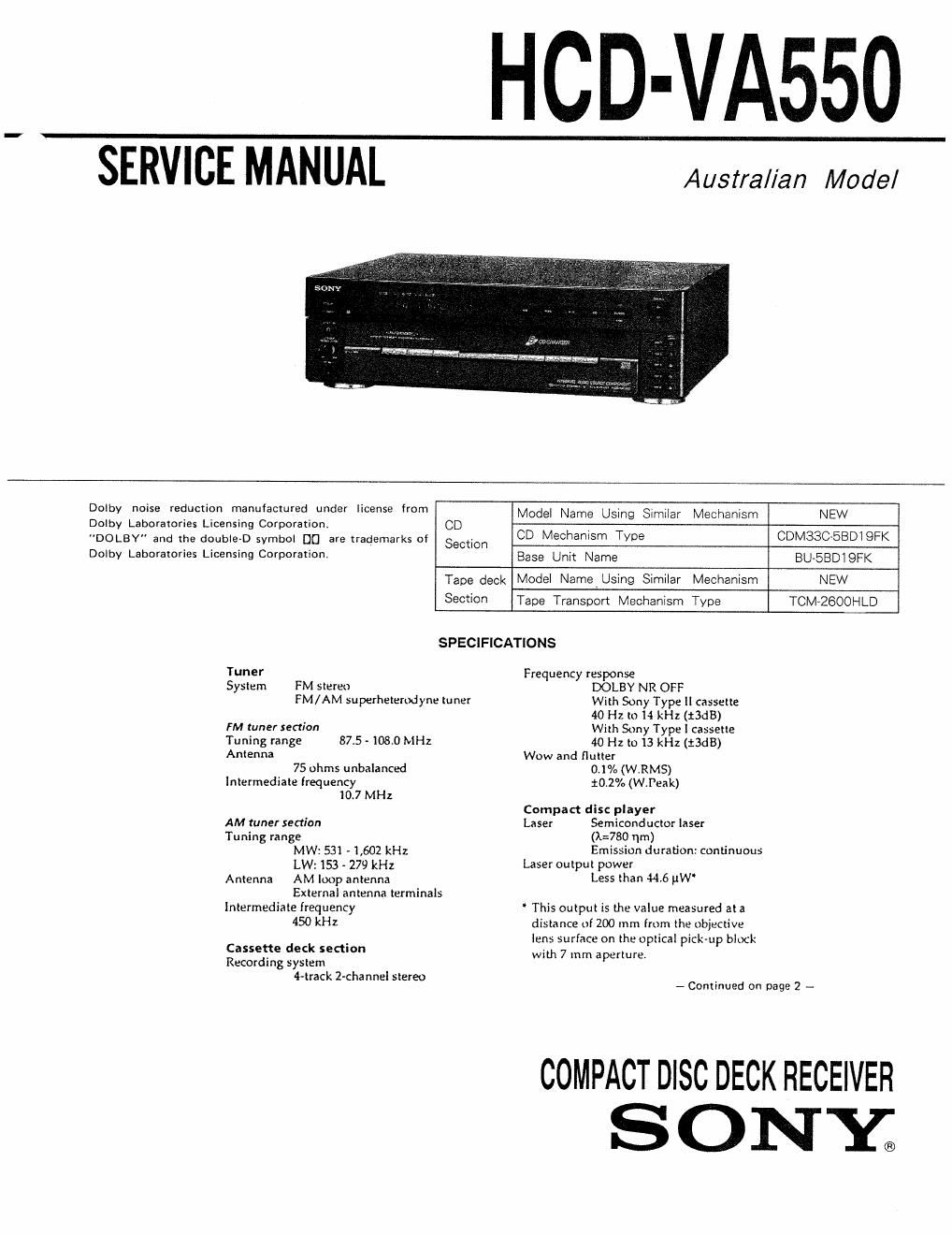

HCD-VA550

SERVICE MANUAL

Austral/an Model

Dolby noise reduction manufactured under license from Model Name Using Similar Mechamsm NEW
Dolby Laboratories Licensing Corporation. CD .
DOLBY" and the double-D symbol DC] are trademarks of Section CD Mechanlsm Type CDM33CSBD19FK
Dolby Laboratories Licensing Corporation. Base Unit Name BU-5BD19FK
Tape deck Model NameUsIng Similar Mechanism NEW
Section Tape Transport Mechanism Type TCM-ZBOOHLD
SPECIFICATIONS
Tuner Frequency response
System FM stereo DOLBY NR OFF

FM/AM superheterodyne tu ner

FM tuner section
Tuning range
Antenna

875 - 1080 MHz

75 ohms unbalanced
Intermediate frequency
10.7 MHz

AM tuner section
Tuning range
MW: 53] - 1,602 kHz
LW: 153 - 279 kHz
AM loop antenna
External antenna terminals
Intermediate frequency
450 kHz

Antenna

Cassette deck section
Recording system
4-track 2-channel stereo

With Sony Type II cassette

40 Hz to 14 kHz (i3dB)

With Sony Type I cassette

40 Hz to 13 kHz (tSdB)
Wow and flutter

04% (WRMS)

10.2% (WIeak)

Compact disc player
Laser Semiconductor laser

(1:780 nm)

Emission duration: continuous
Laser output power

Less than 4-4.6 uW

' This output is the value measured ata
distance oi 200 mm from the nhjective
lens surface on the optical pick-up block
with 7 mm aperture,

- Continued on page 2 -

COMPACT DISC DECK RECElVER
