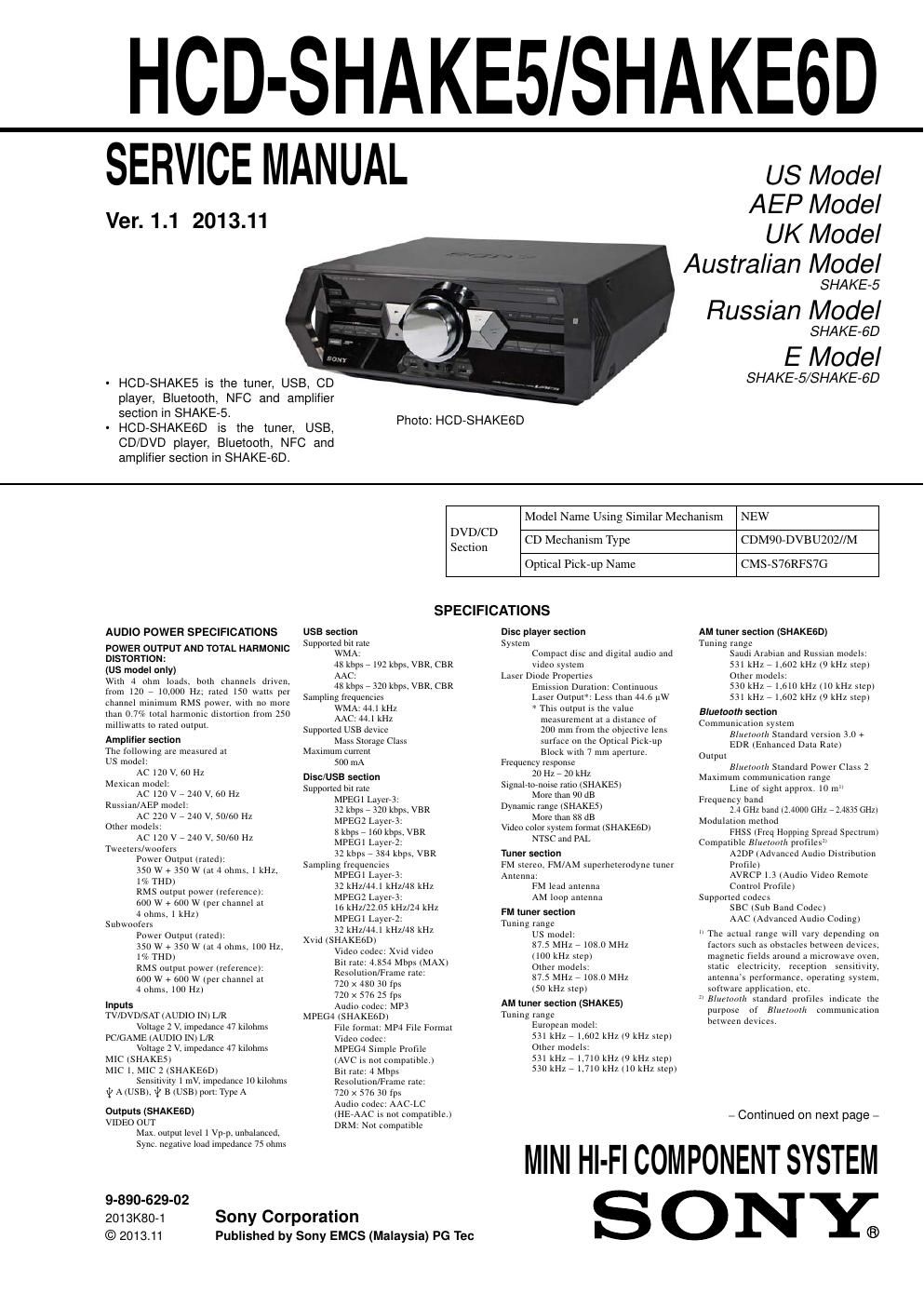

Sony hcd shake5 hcd shake6d ver 1 1 2013 11

Page 2

HCD-SHAKE5/SHAKE6D

License and Trademark Notice
- M IS a trademark ot DVD Formal/Logo LILCIISIng Corpornnon.

- 'DVD+RW" 'DVDVRW","DVD+R"."DVD7R.DVDVIDEO"..\nd
the CD" logos m trademarks,

- MPEG Layer] .mmo coding technology and patents lroerocd from
Frnllllhotcr us and Thomson,

- windows Media Is cuhc n mglslclad lrndcnmk or lrndcmnrk ot
Microsotl Corpornnon In the UIIIICKJ Slams and/or Olhcr counmcx

- Tllls product .5 protected by ccrlmn lnrcllc lal property nghu ot
Microsoll Corpornnon, Use or dlsmbullun 0! null technology numdc
ot llm product .s prohibited wnhonr n llcensc trout Microsoft or nn
nlllllonzcd Microsoft subsldmly.

- WALKMAN nnd WALKMAN logo are registered trademarks or
Sony Corpounon

- Tllls system Incorporates Dolhy Dlglml
~ Manlltaclurcd under license from Dolby Lnlmmmncs Dolby and thc
doublch symbol are trademarks ot Dolby Lnboralor
- Tin; Bluelmtlllw word mark and logos rm: registered trademarks
owned by Elucroorh SIG. Inc. and any use ot such marks by Sony
Corporation a under license. Olltal trademarks and trade llamas are
those at thclr respective omlcrs.

- Tin; N Mark Is n trademark or registered Imdcmnrk ot NFC Forum.
Inc I [lit UIllch] Slnlcs and In orhc OIIIII

- Andmld h n rrudanmrk ot Googlc Inc

- THIS PRODUCT IS LICENSED UNDER THE MPEG4 VISUAL
PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND
NONVCOMMERCIAL USE OF .A CONSUMER FOR

I.) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG4
VISUAL STANDARD ("MPEG4 VIDEO")

AND/OR

IIIIDECODING MPEG4 VIDEO THAT WAS ENCDDED BY
A CONSUMER ENGAGED IN A PERSONAL AND NON.
COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM
A VIDEO PROVIDER LICENSED TO PROVIDE MPEG4
VIDEO.

NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR
ANY OTHER USE ADDITIONAL INFORMATION INCLUDING
THAT RELATING TO PROMOTIONAL. INTERNAL AND
COMMERCIAL USES AND LICENSING MAY BE OBTAINED
FROM MPEG LA. L,L.C,

HTTPz/IWWWMPEGLACOM

All olhcr tradclllarks and rcgmcmd trademarks arc of thIr rcspcouvc
holders. In SHAKEVS mmlunl. '1 and (E llulrks are not spccmcd.
Abbreviation

AUS : Australian model

E2 : 120 V AC area in E model

E4 : African model

E12 : 220 - 240 VAC area in E model

E51 : Chilean and Peruvian models

EA : Saudi Arabia model

MX : Mexican model
MY : Malaysia model
RU : Russian model

SAF : South African model
TH : Thai model

SAFETY CHECK-OUT

After correcting the original service problem, perform the following
safety check before relea. ng the set to the customer:

Check the antenna terminals, metal trim, metallized knobs,
screws, and all other exposed metal parts for AC leakage Check
leakage as described below.

LEAKAGE TEST

The AC leakage from any exposed metal part to earth ground and

from all exposed metal parts to any exposed metal part having a

return to chassis, must not exceed 0.5 mA (500 microamperes).

Leakage current can be measured by any one of three methods.

I. Acommercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers instructions to use these
instruments.

2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.

3. Measuring the Voltage drop across a resistor by means ofa
VOM or battery-operated AC voltmeter. The "limit indication
is 0.75 V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples
of a pa ive VOM that is suitable. Nearly all battery operated
digital multimeters that have a 2V AC range are suitable. (See
Fig. A)

To Exposed Metal
Paris on Set

AC
0. 15 [JF g 1.5 k0 / voltmeter
(0.75 V)

_T_ Earth Ground
Fig. A. Using an AC voltmeter to check AC leakage.

SAFETY-RELATED COMPONENT WARNING!

COMPONENTS IDENTIFIED BY MARKAOR DOTTED LINE
WITH MARKAON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
