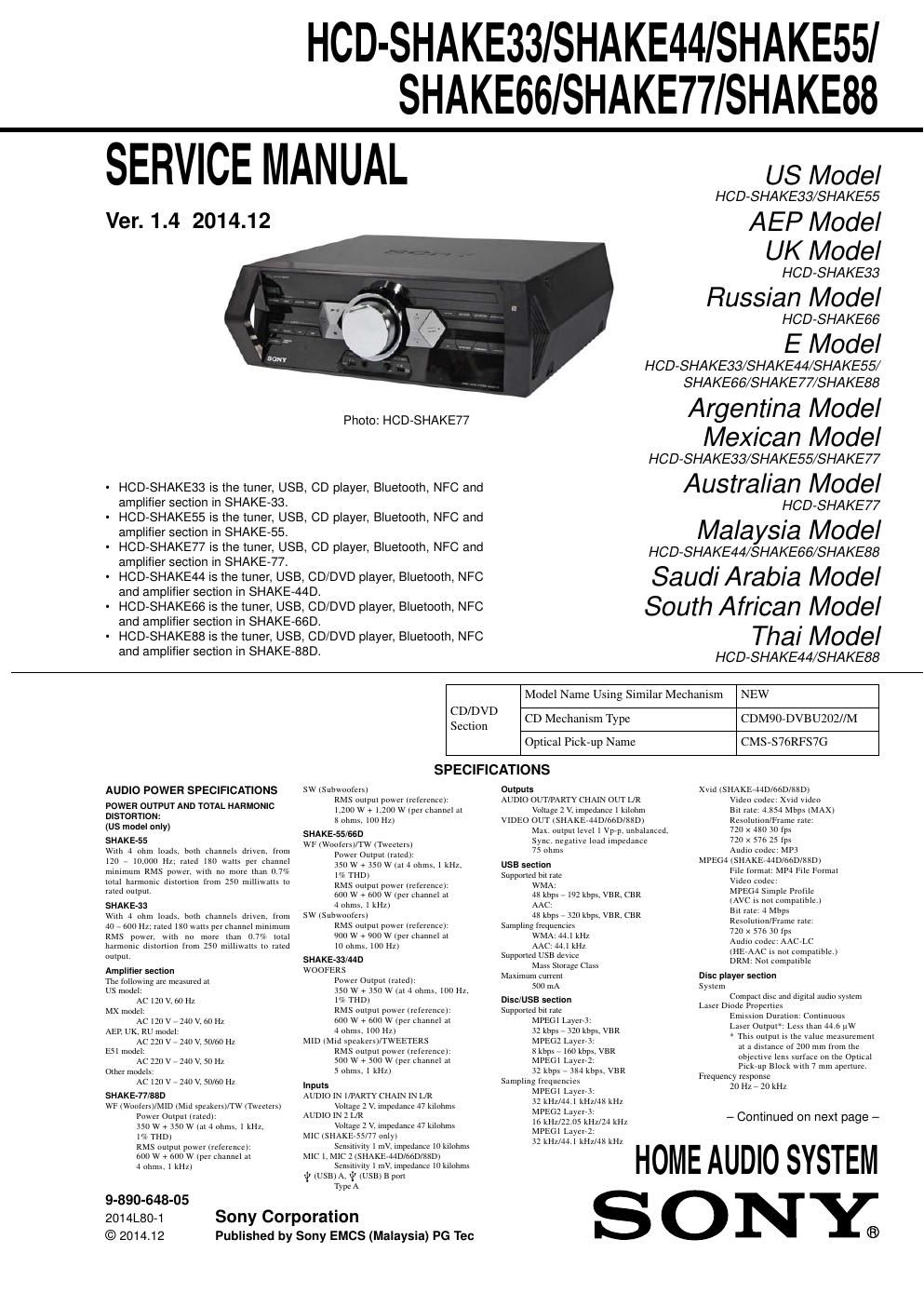

Sony hcd shake33 hcd shake44 hcd shake55 hcd shake66 hcd shake77 hcd shake88 ver1 4

Page 1

HCD-SHAKE33/SHAKE44/SHAKE55/SHAKE66/SHAKE77/SHAKE88 2 SAFETY CHECK-OUT After correcting the original service problem, perform the following safety check before releasing the set to the customer: Check the antenna terminals, metal trim, metallized knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The limit indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) 1.5 kΩ 0.15 μF AC voltmeter (0.75 V) To Exposed Metal Parts on Set Earth Ground Fig. A. Using an AC voltmeter to check AC leakage. SAFETY-RELATED COMPONENT WARNING! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONC- TIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DON- NÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. Signal-to-noise ratio (SHAKE-33/55/77) More than 90 dB Dynamic range (SHAKE-33/55/77) More than 88 dB Video color system format (SHAKE-44D/66D/88D) NTSC and PAL Tuner section FM stereo, FM/AM superheterodyne tuner Antenna: FM lead antenna AM loop antenna FM tuner section Tuning range US model: 87.5 MHz – 108.0 MHz (100 kHz step) Other models: 87.5 MHz – 108.0 MHz (50 kHz step) AM tuner section Tuning range AEP, UK, RU model: 531 kHz – 1,602 kHz (9 kHz step) AUS, E2, E51, US, MX, AR models: 531 kHz – 1,710 kHz (9 kHz step) 530 kHz – 1,710 kHz (10 kHz step) Other models: 531 kHz – 1,602 kHz (9 kHz step) 530 kHz – 1,610 kHz (10 kHz step) Bluetooth section Communication system Bluetooth Standard version 3.1 Output Bluetooth Standard Power Class 2 Maximum communication range Line of sight approx. 10m 1) Frequency band 2.4 GHz band (2.4000 GHz – 2.4835 GHz) Modulation method FHSS (Freq Hopping Spread Spectrum) Compatible Bluetooth profiles 2) A2DP (Advanced Audio Distribution Profile) AVRCP 1.3 (Audio Video Remote Control Profile) SPP (Serial Port Profile) Supported codecs SBC (Sub Band Codec) AAC (Advanced Audio Coding) 1) The actual range will vary depending on factors such as obstacles between devices, magnetic fields around a microwave oven, static electricity, reception sensitivity, antennas performance, operating system, soft- ware application, etc. 2) Bluetooth standard profiles indicate the purpose of Bluetooth communication between devices. General Power requirements US model: AC 120 V, 60 Hz MX model: AC 120 V – 240 V, 60 Hz AEP, UK, RU model: AC 220 V – 240 V, 50/60 Hz E51 model: AC 220 V – 240 V, 50 Hz Other models: AC 120 V – 240 V, 50/60 Hz Power consumption SHAKE-77/88D: 525 W SHAKE-55/66D: 500 W SHAKE-33/44D: 350 W Power consumption (at the Power Saving mode) 0.5 W (When BT STANDBY is set to STANDBY OFF) 4 W (When BT STANDBY is set to STANDBY ON) Dimensions (w/h/d) (excl. speakers) (Approx.) 505 mm × 160 mm × 350 mm (20 in × 6 3⁄8 in × 13 7⁄8 in) Mass (excl. speakers) (Approx.) SHAKE-55/66D/77/88D: 7.6 kg (16 lb 13 oz) SHAKE-33/44D: 7.0 kg (15 lb 7 oz) Supplied accessories Remote control (1) R6 (Size AA) batteries (2) FM lead/AM loop antenna (1) Bottom panel (1) Design and specifications are subject to change without notice. License and Trademark Notice - is a trademark of DVD Format/Logo Licensing Corporation. - DVD+RW, DVD-RW, DVD+R, DVD-R, DVD VIDEO, and the CD logos are trademarks. - MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson. - Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. - This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary. - WALKMAN and WALKMAN logo are registered trademarks of Sony Corporation. - This system incorporates Dolby* Digital. * Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. - The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners. - The N Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries. - Android™ is a trademark of Google Inc. - Google Play™ is a trademark of Google Inc. - iPhone and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. - Made for iPod and Made for iPhone mean that an electronic accessory has been designed to connect speci fi cally to iPod or iPhone, respectively, and has been certi fi ed by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance. - THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON- COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD (MPEG-4 VIDEO) AND/OR (ii) DECODING MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/ OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, L.L.C. HTTP://WWW.MPEGLA.COM - All other trademarks and registered trademarks are of their respective holders. In this manual, ™ and ® marks are not speci fi ed. - Abbreviation AR : Argentina model AUS : Australian model E2 : 120 V AC area in E model E4 : African model E12 : 220-240 V AC area in E model E51 : Chilean and Peruvian models EA : Saudi Arabia model MX : Mexican model MY : Malaysia model RU : Russian model SAF : South African model TH : Thai model Ve r. 1 . 2
