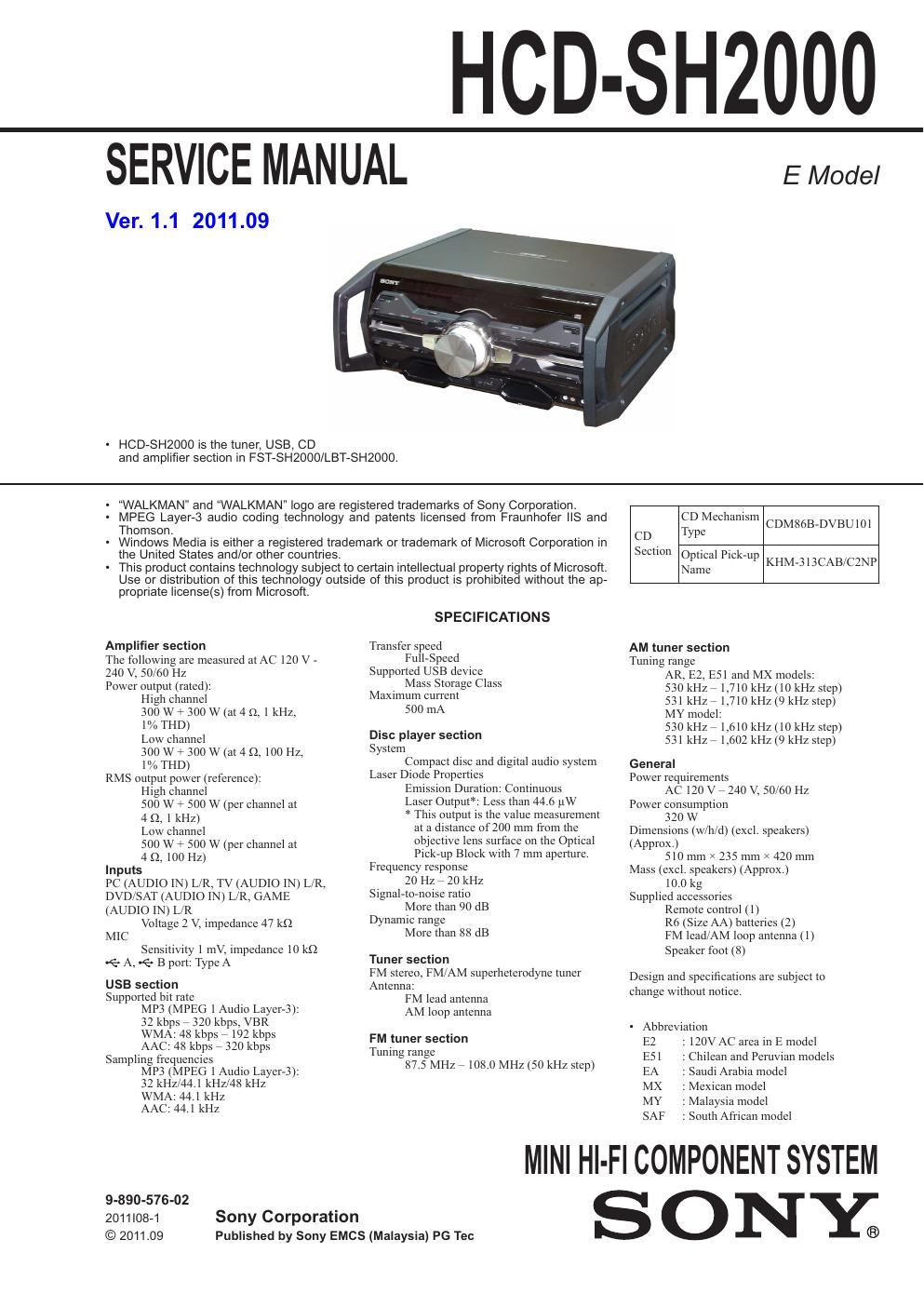

Page 1

HCD-SH2000

SERVICE MANUAL

Ver. 1.1 2011.09

- HCD-SHZOOO is the tuner, USB, CD

and amplifier section in FST-SHZOOO/LBT-SHZOOO.

E Model

- WALKMAN and WALKMAN logo are registered trademarks of Sony Corporation.
' MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and

Thomson.

- Windows Media is either a registered trademark or trademark of Microsoft Corporation in

the United States and/or other countries.

' This product contains technology subject to certain intellectual property rights of Microsoft.
Use or distribution of this technology outside of this product is prohibited without the ap-

propriate license(s) from Microsoft.

Amplifier section
The following are measured at AC 120 V -
240 V, 50/60 Hz
Power output (rated):

High channel

300 W + 300 W (at 4 Q, 1 kHz,

1% THD)

Low channel

300 W + 300 W (at 4 £2,100 Hz,

1% THD)
RMS output power (reference):

High channel

500 W + 500 W (per channel at

4 S2, 1 kHz)

Low channel

500 W + 500 W (per channel at

4 Q, 100 Hz)
Inputs
PC (AUDIO IN) UK, TV (AUDIO IN) UR,
DVD/SAT (AUDIO IN) UR. GAME
(AUDIO IN) UR

Voltage 2 V, impedance 47 k9
MIC

Sensitivity 1 mV, impedance 10 k9
'9 A, '9 B pon: Type A

USB section
Supported bit rate
MP3 (MPEG 1 Audio Layer-3):
32 kbps 7 320 kbps, VBR
WMA: 48 kbps 7 192 kbps
AAC: 48 kbps 7 320 kbps
Sampling frequencies
MP3 (MPEG 1 Audio Layer-3):
32 kHz/44.1 kHfl48 kHz
WMA: 44.1 kHz
AAC: 44.1 kHz

9-890-576-02
2011108-1
© 2011.09

Sony Corporation
Published by Sony EMCS (Malaysia) PG Tec

SPECIFICATIONS

Transfer speed

Full-Speed
Supported USB device

Mass Storage Class
Maximum current

500 mA

Disc player section
System
Compact disc and digital audio system
Laser Diode Properties
Emission Duration: Continuous
Laser Output*: Less than 44.6 uW
* This output is the value measurement
at a distance of 200 mm from the
objective lens surface on the Optical
Pick-up Block with 7 mm aperture.
Frequency response
20 Hz 7 20 kHz
Signal-to-noise ratio
More than 90 dB
Dynamic range
More than 88 dB

Tuner section
FM stereo, FM/AM superheterodyne tuner
Antenna:

FM lead antenna

AM loop antenna

FM tuner section
Tuning range
87.5 MHz 7 108.0 MHz (50 kHz step)

CD Mechanism
CD Type
Section

CDM86B-DVBU101

Optical Pick-up

KHM-313CAB/C2NP
Name

AM tuner section

Tuning range
AR, E2, E51 and MX models:
530 kHz 71,710 kHz (10 kHz step)
531 kHz 71,710 kHz (9 kHz step)
MY model:
530 kHz 71,610 kHz (10 kHz step)
531 kHz 7 1,602 kHz (9 kHz step)

General
Power requirements
AC 120 V 7 240 V, 50/60 Hz
Power consumption
320 W
Dimensions (w/h/d) (excl. speakers)
(Approx)
510 mm X 235 mm X 420 mm
Mass (excl. speakers) (Approx)
10.0 kg
Supplied accessories
Remote control (1)
R6 (Size AA) batteries (2)
FM lead/AM loop antenna (1)
Speaker foot (8)

Design and specifications are subject to
change without notice.

- Abbreviation
E2 : 120V AC area in E model
E51 : Chilean and Peruvian models
EA : Saudi Arabia model
MX : Mexican model
MY : Malaysia model
SAF : South African model

MINI H|-F| COMPONENT SYSTEM

SONY.

Page 2

HCD-SHZOOO

SAFETY CHECK-OUT

After correcting the original service problem, perform the following
safety check before releasing the set to the customer:

Check the antenna terminals, metal trim. metallized knobs)
screws. and all other exposed metal parts for AC leakage. Check
leakage as described below.

LEAKAGE TEST

The AC leakage from any exposed metal part to earth ground and

from all exposed metal parts to any exposed metal part having a

return to chas s, must not exceed 0.5 mA (500 microamperes).

Leakage current can be measured by any one of three methods.

1. A commercial leakage tester. such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers instructions to use these
instruments.

2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for thisjob.

3. Measuring the voltage drop across a resistor by means ofa
VOM or battery-operated AC voltmeter. The limit indication
is 0.75 V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples
ofa passive VOM that is suitable. Nearly all battery operated
digital multimeters that have a 2V AC range are suitable. (See
Fig. A)

To Exposed Metal
Parts on Set
AC
0.15 uF g 1.5 k0 / voltmeter
(0.75 V)

:- Eanh Ground
Fig. A. Using an AC voltmeter to checkAC leakage.

SAFETY-RELATED COMPONENT WARNING!

COMPONENTS IDENTIFIED BY MARKAOR DOTTED LINE
WITH MARKAON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

2
