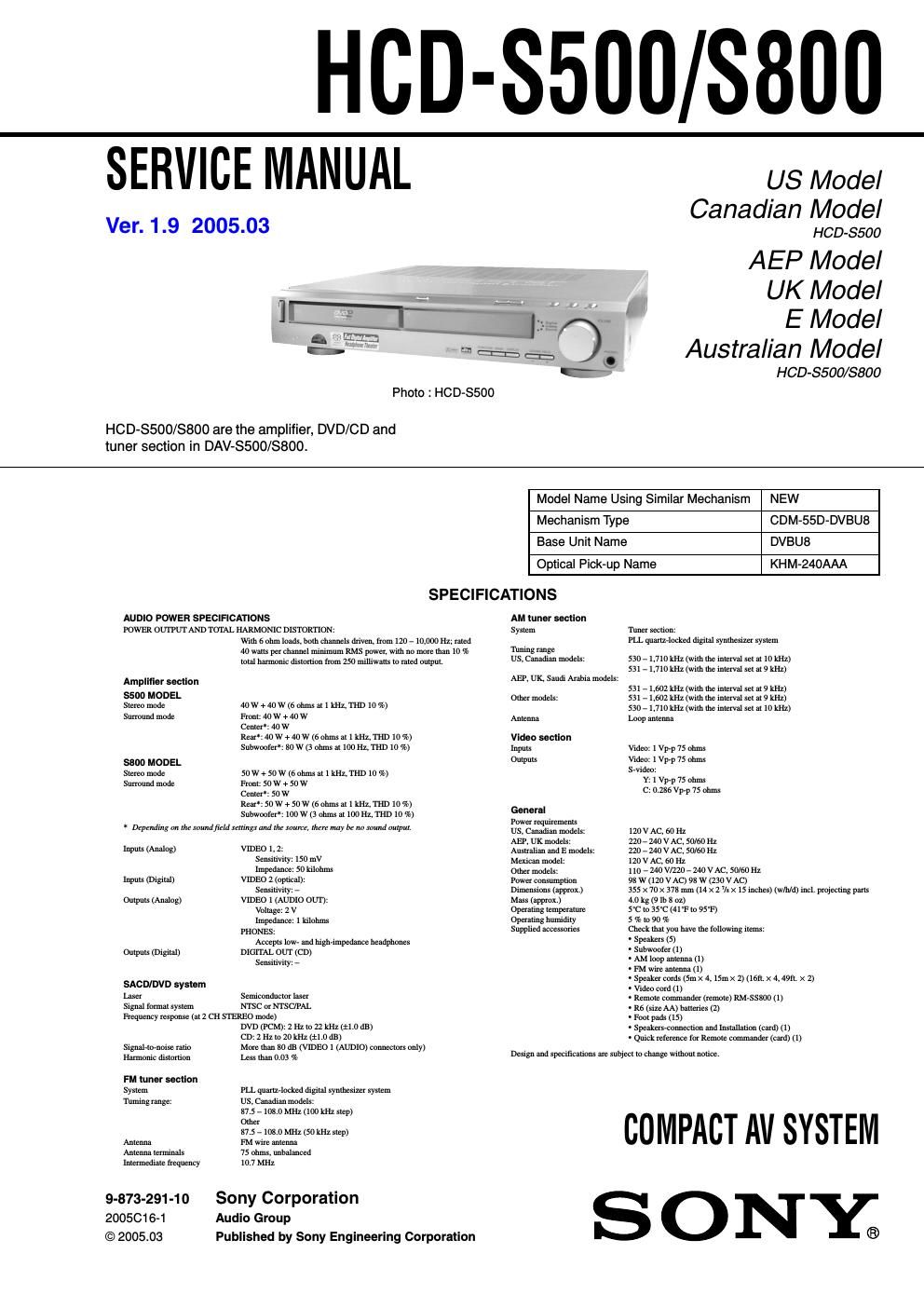

Sony hcd s 500 hcd s 800 ver 1 9
This is the 100 pages manual for sony hcd s 500 hcd s 800 ver 1 9.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony hcd s 500 hcd s 800 ver 1 9 (Ocr-read)
Page 1
2 HCD-S500/S800 SAFETY CHECK-OUT After correcting the original service problem, perform the following safety checks before releasing the set to the customer: Check the antenna terminals, metal trim, metallized knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE The AC leakage from any exposed metal part to earth Ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microampers). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The limit indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) Fig. A. Using an AC voltmeter to check AC leakage. 0.15µFTo Exposed Metal Parts on Set 1.5kΩAC voltmeter (0.75V) Earth Ground CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Notes on chip component replacement -Never reuse a disconnected chip component. -Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing -Keep the temperature of soldering iron around 270˚C during repairing. -Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). -Be careful not to apply force on the conductor when soldering or unsoldering. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. This caution label is located inside the unit. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPÉMENTS PUBLIÉS PAR SONY. NOTE OF REPLACING THE DVD BOARD When replacing the DVD board, since the adjustment value is not set up correctly, Drive Auto Adjustment cant be performed. In this case, initialize Memory in the following procedures. Procedure: 1.Starting test mode. (See page 12) 2.Press the [2] key of the remote commander, and set the DRIVE MANUAL OPERATION. (See page 18) 3.Press the [6] key of the remote commander, and set the 6. Memory Check. (See page 20) 4.Press the [CLEAR] key of the remote commander, and initialize Memory. Ver 1.8
Page 2
3 HCD-S500/S800 TABLE OF CONTENTS 1. SERVICING NOTE ·························································· 5 2. GENERAL ·········································································· 6 3. DISASSEMBLY ································································ 8 4. TEST MODE ···································································· 12 5. ELECTRICAL ADJUSTMENT ·································· 22 6. DIAGRAMS ······································································ 25 6-1. Block Diagrams ··························································· 26 – RF/Servo, Video Section – ······································· 26 – CPU Section – ·························································· 27 – Power Section – ························································ 28 6-2. Printed Wiring Board – RF Section – ························· 29 6-3. Schematic Diagram – RF Section – ··························· 30 6-4. Printed Wiring Board – DVD Section (1/2) – ············ 31 6-5. Printed Wiring Board – DVD Section (2/2) – ············ 32 6-6. Schematic Diagram – DVD (1/8) Section – ··············· 33 6-7. Schematic Diagram – DVD (2/8) Section – ··············· 34 6-8. Schematic Diagram – DVD (3/8) Section – ··············· 35 6-9. Schematic Diagram – DVD (4/8) Section – ··············· 36 6-10. Schematic Diagram – DVD (5/8) Section – ··············· 37 6-11. Schematic Diagram – DVD (6/8) Section – ··············· 38 6-12. Schematic Diagram – DVD (7/8) Section – ··············· 39 6-13. Schematic Diagram – DVD (8/8) Section – ··············· 40 6-14. Printed Wiring Board – AMP Section (1/2) – ············ 41 6-15. Printed Wiring Board – AMP Section (2/2) – ············ 42 6-16. Schematic Diagram – AMP Section (1/2) – ··············· 43 6-17. Schematic Diagram – AMP Section (2/2) – ··············· 44 6-18. Printed Wiring Board – I/O Section – ························ 45 6-19. Schematic Diagram – I/O Section (1/2) – ·················· 46 6-20. Schematic Diagram – I/O Section (2/2) – ·················· 47 6-21. Printed Wiring Board – Panel Section – ····················· 48 6-22. Schematic Diagram – Panel Section – ······················· 49 6-23. Printed Wiring Board – Front Section – ····················· 50 6-24. Schematic Diagram – Front Section – ························ 51 6-25. Printed Wiring Board – Power Section – ···················· 52 6-26. Printed Wiring Board – Power Section – ··················· 53 6-27. Schematic Diagram – Power Section – ······················ 54 6-28. Schematic Diagram – Loading Section – ··················· 55 6-29. Printed Wiring Board – Loading Section – ················ 55 6-30. IC Block Diagrams ······················································ 56 6-31. IC Pin Function Description ········································ 60 7. EXPLODED VIEWS 7-1. Main Section ······························································· 70 7-2. Front Panel Section ····················································· 71 7-3. Chassis Section ···························································· 72 7-4. Mechanism Deck Section (CDM55D-DVBU8)············ 74 8. ELECTRICAL PARTS LIST ······································· 75MODEL IDENTIFICATION - BACK PANEL - Par t No. -Abbreviation E12 : 220-240V AC area in E model E32 : 110-240V AC area in E model Model US, Canadian models AEP, UK models Mexican model E32 model Australian model Malaysia, Singapore models E12 model Taiwan model Argentine model Saudi Arabia model Hong Kong model CIS model PA RTS No. DAV-S500 DAV-S800 4-234-914-0s--------------------- 4-236-491-2s4-234-914-1s 4-234-914-2s4-236-126-6s 4-234-914-3s--------------------- 4-234-914-4s4-237-482-5s 4-234-914-5s--------------------- 4-234-914-6s--------------------- 4-234-914-7s4-237-482-6s 4-234-914-8s--------------------- 4-234-914-9s4-237-482-3s 4-237-482-0s4-237-482-4s 4-237-482-7s4-237-482-2s Ver 1.3 2002.07
