Sony hcd rx 55 service manual
This is the 54 pages manual for sony hcd rx 55 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony hcd rx 55 service manual (Ocr-read)
Page 1

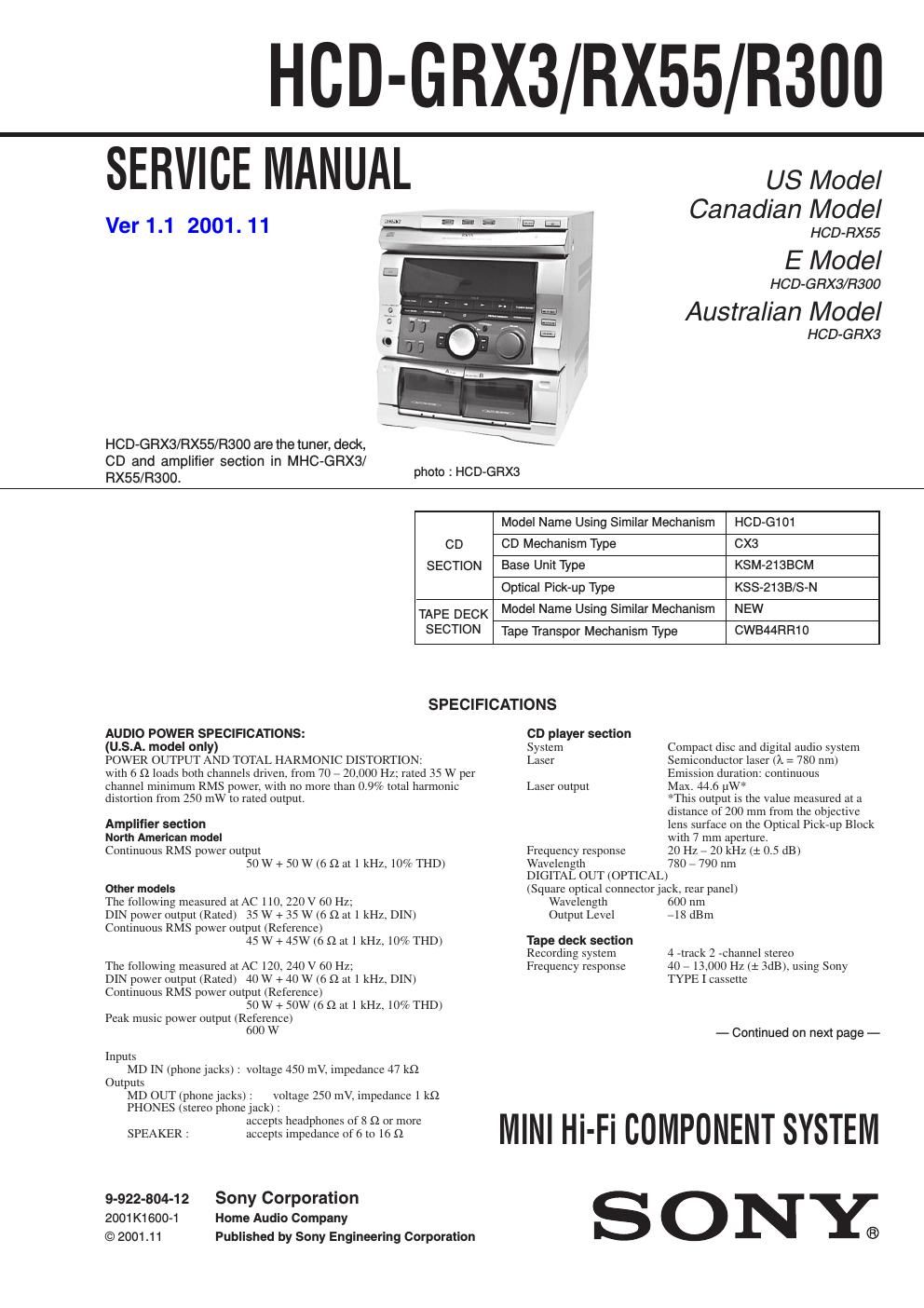

CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Notes on chip component replacement ¥ Never reuse a disconnected chip component. ¥ Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing ¥ Keep the temperature of soldering iron around 270ûC during repairing. ¥ Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). ¥ Be careful not to apply force on the conductor when soldering or unsoldering. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. This caution label is located inside the unit. SERVICING NOTE NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. Antenna terminals 75 W unbalanced Intermediate frequency 10.7MHz AM tuner section Tuning range 531 Ð 1,602 kHz (with AM tuning interval set at 9 kHz) 530 Ð 1,710 kHz (with AM tuning interval set at 10 kHz) Antenna AM loop antenna Antenna terminals External antenna terminal Intermediate frequency 450 kHz General Power requirements North American model:120 V AC, 60 Hz Mexican model: 120 V AC, 50/60 Hz Australian and South African models: 220 Ð 240 V AC, 50/60 Hz Other models: 110 Ð 120 V or 220 Ð 240 V AC, 50/60 Hz (adjustable with voltage selector) Power consumption 100 W Dimensions (w/h/d) incl. projecting parts and controls Approx. 280 ´ 320 ´ 400 mm (11 1/8 ´ 12 5/8 ´ 15 3/4 in) Mass Approx. 9.5 kg (20 lb 15 oz.) Supplied accessories: AM loop antenna (1) Remote (1) RM-SG7 (for HCD-GRX3/RX55) RM-SG7B (for HCD-R300) FM lead antenna (1) Design and specifications are subject to change without notice. ATTENTION AU COMPOSANT AYANT RAPPORT Ë LA SƒCURITƒ! LES COMPOSANTS IDENTIFƒS PAR UNE MARQUE ! SUR LES DIAGRAMMES SCHƒMATIQUES ET LA LISTE DES PIéCES SONT CRITIQUES POUR LA SƒCURITƒ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIéSES SONY DONT LES NUMƒROS SONT DONNƒS DANS CE MANUEL OU DANS LES SUPPƒMENTS PUBLIƒS PAR SONY. Ñ 2 Ñ
Page 2
SAFETY CHECK-OUT After correcting the original service problem, perform the following safety checks before releasing the set to the customer: Check the antenna terminals, metal trim, ÒmetallizedÓ knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE The AC leakage from any exposed metal part to earth Ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microampers). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturersÕ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The ÒlimitÓ indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) To Exposed Metal Parts on Set 0.15 µF 1.5 k ½ AC Voltmeter (0.75 V) Earth Ground Fig. A. Using an AC voltmeter to check AC leakage. TABLE OF CONTENTS 1. GENERAL .......................................................................... 4 2. DISASSEMBLY 2-1. Upper Cover and CD Door ................................................. 5 2-2. Front Panel ......................................................................... 5 2-3. Main Board ......................................................................... 6 2-4. Amp Board ......................................................................... 6 2-5. CD Tray .............................................................................. 7 2-6. CD Decoder Board ............................................................. 7 2-7. Base Unit ............................................................................ 8 2-8. Cassette Door ..................................................................... 8 3. MECHANICAL ADJUSTMENTS ............................... 9 4. ELECTRICAL ADJUSTMENTS ................................. 9 5. DIAGRAMS 5-1. Circuit Boards Location ................................................... 14 5-2. Block Diagrams ¥ Deck Section ................................................................... 15 ¥ CD Section ...................................................................... 17 5-3. IC Block Diagrams ........................................................... 19 5-4. Printed Wiring Board ÑCD Section Ñ ........................... 24 5-5. Schematic Diagram Ñ CD Section Ñ ............................. 29 5-6. Schematic Diagram ÑPanel Section Ñ .......................... 33 5-7. Printed Wiring Board ÑPanel Section Ñ ........................ 37 5-8. Printed Wiring Board Ñ Deck Section Ñ ....................... 42 5-9. Schematic Diagram ÑDeck Section Ñ ........................... 47 5-10. Schematic Diagram ÑMain Section Ñ ........................... 51 5-11. Printed Wiring Board ÑMain Section Ñ ........................ 55 5-12. Printed Wiring Board Ñ Amp Section Ñ ........................ 60 5-13. IC Pin Function ................................................................ 65 6. EXPLODED VIEWS 6-1. Cabinet Section ................................................................. 67 6-2. Front Panel Section .......................................................... 68 6-3. Cassette Mechanism Deck Section ................................... 69 6-4. CD Mechanism Deck Section 1 ....................................... 70 6-5. CD Mechanism Deck Section 2 ....................................... 71 6-6. Base Unit Section (KSM-213BCM) ................................. 72 7. ELECTRICAL PARTS LIST ........................................ 73 Ñ 3 Ñ
