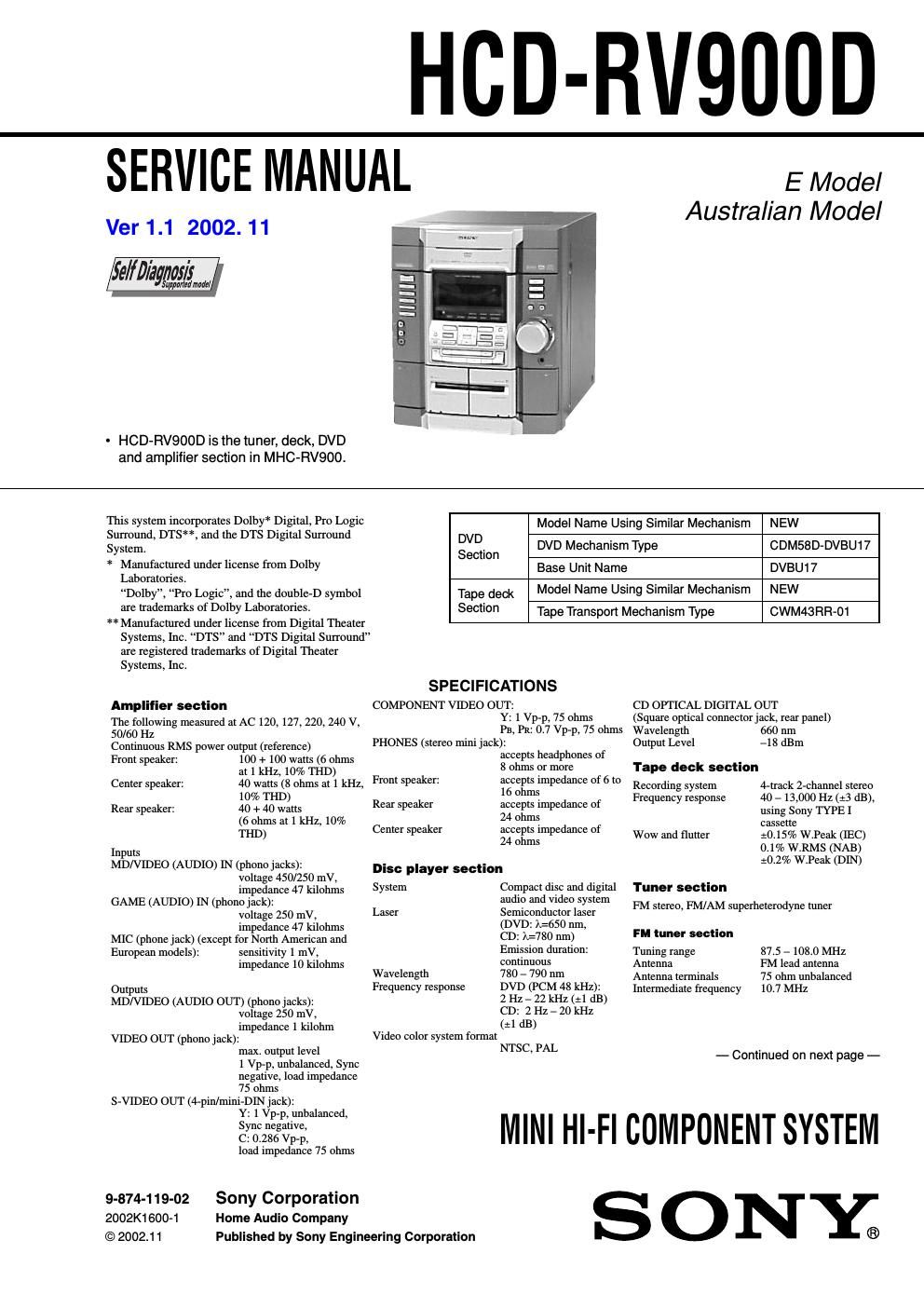

Page 1

HCD-RV900D

SERVICE MANUAL

Ver1.1 2002. 11
le/lD/agwm

- HCD-RVQOOD is the tuner, deck, DVD
and amplifier section in MHC-RVQOO.

-
-
-
-
-
-
_-
n
o
:

E Model
Australian Model

This system incorporates Dolby* Digital, Pro Logic
Surround, DTS**, and the DTS Digital Surround
System.

* Manufactured under license from Dolby
Laboratories.

Dolby", Pro Logic, and the double-D symbol
are trademarks of Dolby Laboratories.

** Manufactured under license from Digital Theater
Systems, Inc. DTS and DTS Digital Surround"
are registered trademarks of Digital Theater
Systems, Inc.

Amplifier section

The following measured at AC 120, 127, 220, 240 V,

50/60 Hz

Continuous RMS power output (reference)

Front speaker: 100 + 100 watts (6 ohms
at 1 kHz, 10% THD)

Center speaker: 40 watts (8 ohms at 1 kHz,
10% THD)

Rear speaker: 40 + 40 watts
(6 ohms at 1 kHz, 10%
THD)

Inputs

MDNIDEO (AUDIO) IN (phono jacks):
voltage 450/250 mV,
impedance 47 kilohms

GAME (AUDIO) IN (phono jack):
Voltage 250 mV,
impedance 47 kilohms
MIC (phone jack) (except for North American and
European models): sensitivity 1 mV.
impedance 10 kilohms

Outputs
MD/VIDEO (AUDIO OUT) (Phone jacks):
Voltage 250 mV,
impedance 1 kilohm
VIDEO OUT (phono jack):
max. output level
I Vp»p, unbalanced, Sync
negative, load impedance
75 ohms
S»VIDEO OUT (4-pin/n1ini»DlN jack):
Y: 1 Vp»p, unbalanced.
Sync negative,
C: 0.286 Vp-p,
load impedance 75 ohms

9-874-119-02 Sony Corporation
2002K1600-1 Home Audio Company
© 2002.11

Published by Sony Engineering Corporation

Model Name Using Similar Mechanism NEW
DVD_ DVD Mechanism Type CDM58D-DVBU17
Section
Base Unit Name DVBU17
Tape deck Model Name Using Similar Mechanism NEW
Section Tape Transport Mechanism Type CWM43FtFt-01
SPECIFICATIONS
COMPONENT VIDEO OUT: CD OPTICAL DIGITAL OUT
Y: I Vp-p, 75 ohms (Square optical connector jack, rear panel)
PB, PR: 0.7 Vp-p, 75 ohms Wavelength 660 nm
PHONES (stereo mini jack): Output Level -18 dBm

accepts headphones of
8 ohms or more

Front speaker: accepts impedance of 6 to
16 ohms

Rear speaker accepts impedance of
24 ohms

Center speaker accepts impedance of
24 ohms

Disc player section

System Compact disc and digital
audio and video system

Laser Semiconductor laser
(DVD: N:650 nm,
Emission duration:
continuous

Wavelength 780 - 790 nm

Frequency response DVD (PCM 48 kHz):

2 Hz-22 kHz (:1 dB)
CD: 2 Hz - 20 kHz
(:1 dB)

Video color system format
NTSC, PAL

Tape deck section

Recording system
Frequency response

4»track 2-channel stereo
40 - 13,000 Hz (:3 dB).
using Sony TYPE I
cassette

20.15% W.Peak (IEC)
0.1% WRMS (NAB)
20.2% W.Peak (DIN)

Wow and flutter

Tuner section
FM stereo, FM/AM superheterodyne tuner

FM tuner section

Tuning range 87.5 - 108.0 MHz

Antenna FM lead antenna
Antenna terminals 75 ohm unbalanced
Intermediate frequency 10.7 MHz

- Continued on next page -

MINI HI-FI COMPONENT SYSTEM

SONY;
