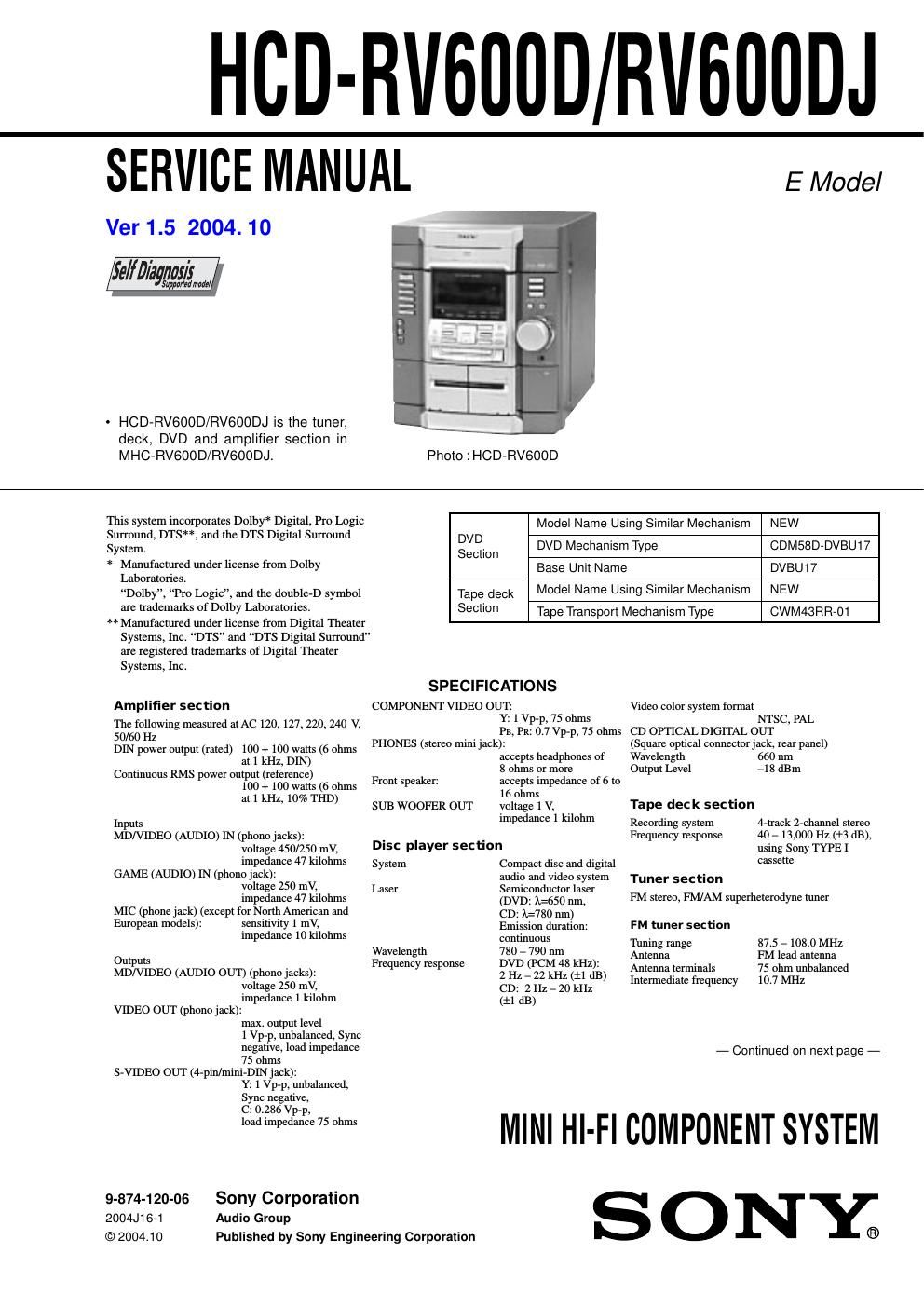

Sony hcd rv 600d service manual
This is the 100 pages manual for sony hcd rv 600d service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony hcd rv 600d service manual (Ocr-read)
Page 1
2 HCD-RV600D/RV600DJ Self-diagnosis function (When letters/numbers appear in thedisplay) When the self-diagnosis function is activated to prevent the system from malfunctioning, a five- character service number (e.g., C 13 00) with a combination of a letter and digits appears on the screen. In this case, check the following table. C:13:00 First three characters of the service number Cause and/or corrective action C 13 The disc is dirty. , Clean the disc with a soft cloth (see page 70). C 31 The disc is not inserted correctly. , Re-insert the disc correctly. To prevent a malfunction, the system has performed the self- diagnosis function. ,Contact your nearest Sony dealer or local authorized Sony service facility and give the 5-character service number. Example: E 61 10 E XX (XX is a number) Philippine models: 531 – 1,602 kHz (with the interval set at 9 kHz) Other models: 531 – 1,602 kHz (with the interval set at 9 kHz) 530 – 1,710 kHz (with the interval set at 10 kHz) Antenna AM loop antenna Antenna terminals External antenna terminal Intermediate frequency 450 kHz General Power requirements Mexican model: 120 V AC, 60 Hz Saudi Arabian model: 120 – 127 V, 220 V or 230 – 240 V AC, 50/60 Hz Adjustable with voltage selector Thai model: 220 V AC, 50/60 Hz Other models: 120 V, 220 V or 230 – 240 V AC, 50/60 Hz Adjustable with voltage selector Power consumption 230 watts 0.4 watts (in Power Saving Mode) Dimensions (w/h/d) Approx. 280 × 325 × 368 mm Mass Approx. 10.6 kg Design and specifications are subject to change without notice. AM tuner section T uning range P an-American models: 530 – 1,710 kHz (with the interval set at 10 kHz) 531 – 1,710 kHz (with the interval set at 9 kHz) MODEL IDENTIFICATION - BACK PANEL - Parts No. PA RTS No. 4-240-159-0 s 4-240-159-1s 4-240-159-2s 4-240-159-4s 4-240-159-5s 4-240-159-6s 4-240-159-7s MODEL 600D : MY, SP model 600D : E3 600D : EA3 600D : TH 600D : E51 600D : MX 600DJ : EA3 -A bbreviation E3 : 240V AC Area in E model E51 : Chilean and Peruvian model EA3 : Saudi Arabia model MX : Mexican model MY : Malaysia model SP : Singapore model TH : Thai model V er 1.5 NOTES ON MB BOARD EXCHANGE If a MB board is exchanged, DRIVE AUTO ADJUSTMENT may be unable to be performed. In this case, initialize a memory in the following procedure. 1. Starting Test Mode (see page 2 (SUPPLEMENT-1)). 2. Press the 2 b utton of remote commander to set the Drive Manual Operation (see page 4 (SUPPLEMENT-1)). 3. Press the 6 b utton of remote commander to set the Memory Check (see page 6 (SUPPLEMENT-1)). 4. Press the [CLEAR] button of remote commander to initialize a memory.
Page 2
3 HCD-RV600D/RV600DJ This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Notes on chip component replacement -Never reuse a disconnected chip component. -Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing -Keep the temperature of soldering iron around 270˚C during repairing. -Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). -Be careful not to apply force on the conductor when soldering or unsoldering. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. TABLE OF CONTENTS 1. GENERAL ·········································································· 4 2. DISASSEMBLY ································································ 6 2-1. Case (Top) ····································································· 7 2-2. Lid (DVD) ····································································· 7 2-3. Front Panel Section ······················································· 8 2-4. DVD Mechanism Deck (CDM58D-DVBU17) ············· 8 2-5. Tape Mechanical Deck (CWM43RR-01) ····················· 9 2-6. PANEL Board, SUB PANEL Board, REMOTE Board ························································· 10 2-7. Cassette Holder ··························································· 11 2-8. SUB TRANSFORMER Board, Back Panel, DC Fan (M961) ······································· 11 2-9. TRANSFORMER Board, MAIN Board ····················· 12 2-10. FRONT AMP Board, SURROUND Board, REG Board ·································································· 12 2-11. VIDEO Board, MB Board ·········································· 13 2-12. RF Board, DRIVER Board ········································· 13 2-13. Optical Pick-up ··························································· 14 2-14. MOTOR Board, DIODE Board, SENSOR Board ······ 14 3. TEST MODE ···································································· 15 4. MECHANICAL ADJUSTMENTS ····························· 18 5. ELECTRICAL ADJUSTMENTS ······························· 19 6. DIAGRAMS ······································································ 21 6-1. Block Diagrams – DVD DSP Section – ···················· 21 – DVD SYS Section – ···················· 22 – Tuner Section – ···························· 23 – Main Section – ····························· 24 6-2. Circuit Boards Location ·············································· 25 6-3. Printed Wiring Board – RF Board – ··························· 26 6-4. Schematic Diagram – RF Board – ······························ 27 6-5. Printed Wiring Board – MB Board (Side A) – ··········· 28 6-6. Printed Wiring Board – MB Board (Side B) – ··········· 29 6-7. Schematic Diagram – MB Board (1/6) – ···················· 30 6-8. Schematic Diagram – MB Board (2/6) – ···················· 31 6-9. Schematic Diagram – MB Board (3/6) – ···················· 32 6-10. Schematic Diagram – MB Board (4/6) – ···················· 33 6-11. Schematic Diagram – MB Board (5/6) – ···················· 34 6-12. Schematic Diagram – MB Board (6/6) – ···················· 35 6-13. Printed Wiring Board – TC Board – ··························· 36 6-14. Schematic Diagram – TC Board – ······························ 37 6-15. Printed Wiring Board – Main Section – ····················· 38 6-16. Schematic Diagram – Main Section (1/3) – ··············· 39 6-17. Schematic Diagram – Main Section (2/3) – ··············· 40 6-18. Schematic Diagram – Main Section (3/3) – ··············· 41 6-19. Printed Wiring Board – VIDEO Board – ···················· 42 6-20. Schematic Diagram – VIDEO Board – ······················· 43 6-21. Printed Wiring Board – FRONT AMP Board – ·········· 44 6-22. Schematic Diagram – FRONT AMP Board – ············ 45 6-23. Printed Wiring Board – Panel Section – ····················· 46 6-24. Schematic Diagram – Panel Section (1/2) – ··············· 47 6-25. Schematic Diagram – Panel Section (2/2) – ··············· 48 6-26. Schematic Diagram – Sensor Section – ······················ 49 6-27. Printed Wiring Board – Sensor Section – ··················· 49 6-28. Printed Wiring Board – TRANSFORMER Board – ··· 50 6-29. Schematic Diagram – TRANSFORMER Board – ····· 51 6-30. Printed Wiring Board – SUB TRANSFORMER Board – ····························· 52 6-31. Schematic Diagram – SUB TRANSFORMER Board – ····························· 53 6-32. IC Pin Function Descriptions ······································ 54 7. EXPLODED VIEWS ······················································ 65 7-1. Main Section ······························································· 65 7-2. Front Panel Section ····················································· 66 7-3. Chassis Section ··························································· 67 7-4. DVD Mechanism Deck Section (CDM58D-DVBU17) ················································· 68 8. ELECTRICAL PARTS LIST ······································· 69
