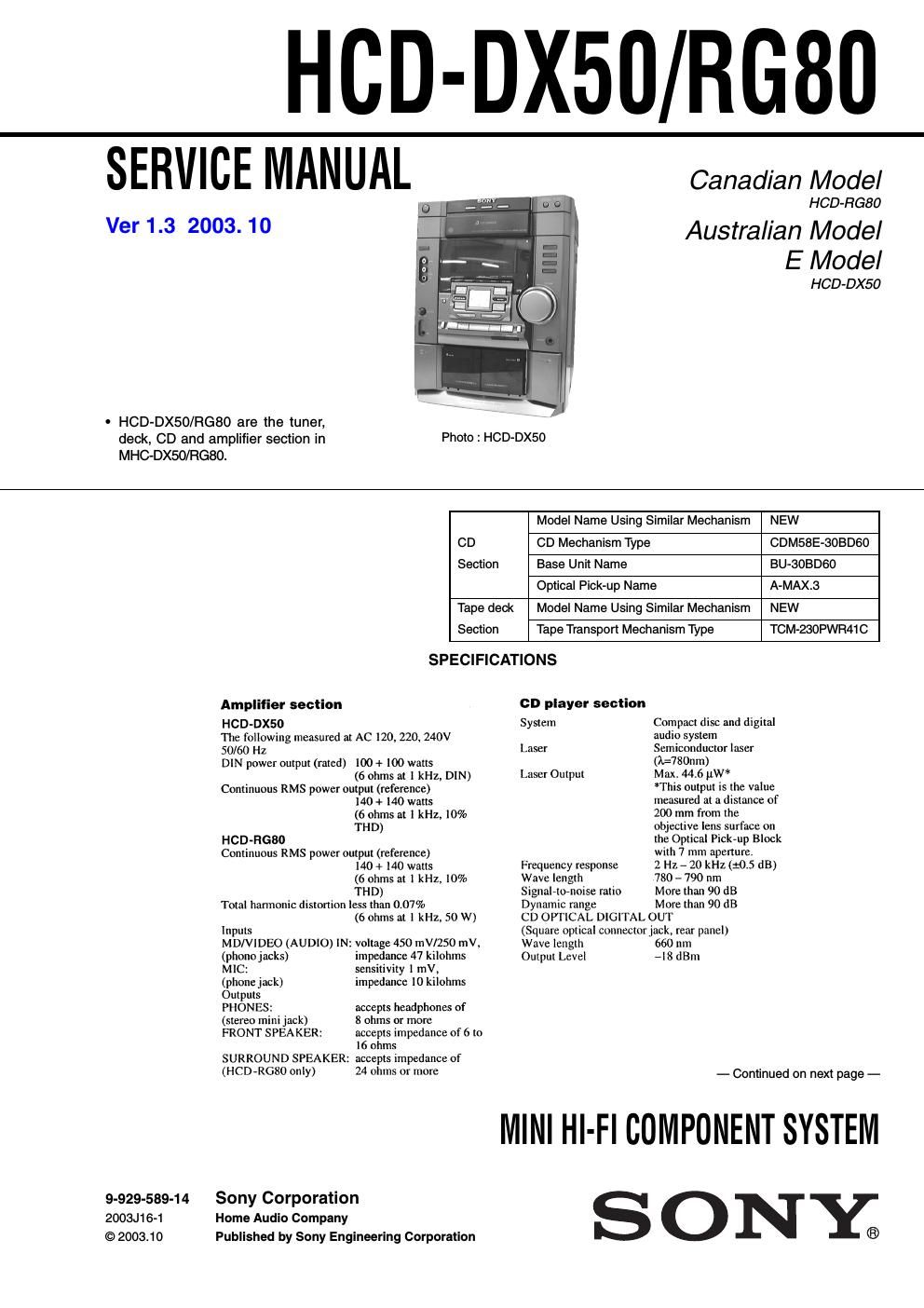

Sony hcd rg 80 service manual

Page 2

3 HCD-DX50/RG80 TABLE OF CONTENTS 1. GENERAL ··················\ ··················\ ··················\ ··················\ ·· 4 2. DISASSEMB LY ··················\ ··················\ ··················\ ········· 7 3. TEST MODE ··················\ ··················\ ··················\ ·············· 12 4. MECHANICAL ADJUSTMENTS ··················\ ···········14 5. ELECTRICAL ADJUSTMENTS ··················\ ············· 14 6. DIAGRAMS 6-1. Circuit Board Location ··················\ ··················\ ············· 20 6-2. Block Diagrams ··················\ ··················\ ··················\ ······ 21 6-3. Schematic Diagram Main Section (1/4) ··················\ ··23 6-4. Schematic Diagram Main Section (2/4) ··················\ ··24 6-5. Schematic Diagram Main Section (3/4) ··················\ ··25 6-6. Schematic Diagram Main Section (4/4) ··················\ ··26 6-7. Printed Wiring Board Main Section ··················\ ········27 6-8. Schematic Diagram BD Section ··················\ ··············28 6-9. Printed Wiring Board BD Section ··················\ ···········29 6-10. Schematic Diagram AMP Section ··················\ ·········30 6-11. Printed Wiring Board AMP Section ··················\ ·······31 6-12. Schematic Diagram Panel Section ··················\ ·········32 6-13. Printed Wiring Board Panel Section ··················\ ······33 6-14. Schematic Diagram Panel SW Section ··················\ ··34 6-15. Printed Wiring Board Panel SW Section ·················35 6-16. Schematic Diagram Leaf SW Section ··················\ ···36 6-17. Printed Wiring Board Leaf SW Section ··················\ ·37 6-18. Schematic Diagram Driver Section ··················\ ·······38 6-19. Printed Wiring Board Driver Section ··················\ ·····39 6-20. Schematic Diagram Trans Section ··················\ ·········40 6-21. Printed Wiring Board Trans Section ··················\ ······41 6-22. Printed Wiring Board Switch Section ··················\ ····42 6-23. IC Pin Function Description ··················\ ··················\ ···42 6-24. IC Block Diagrams ··················\ ··················\ ················· 45 7. EXPLODED VIEWS 7-1. Cabinet Section··················\ ··················\ ··················\ ······· 47 7-2. Front Panel Section ··················\ ··················\ ··················\ · 48 7-3. Main Board Section ··················\ ··················\ ··················\ 49 7-4. Tape Mechanism Section-1 (TCM-230PWR41C) ········50 7-5. Tape Mechanism Section-2 (TCM-230PWR41C) ········51 7-6. CD Mechanism Deck Section (CDM58E-30BD60) ····52 7-7. Base Unit Section (BU-30BD60) ··················\ ···············53 8. ELECTRICAL PARTS LIST ··················\ ··················\ ··· 54 SAFETY CHECK-OUT After correcting the original service problem, perform the following safety checks before releasing the set to the customer: Check the antenna terminals, metal trim, metallized knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microampers). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The limit indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) Earth Ground AC voltmeter (0.75V) 1.5k Ω 0.15 µF Fig. A. Using an AC voltmeter to check AC leakage. To Exposed Metal Parts on Set MODEL IDENTIFICATION- BA CK P ANEL - MODEL DX50 : E, SP, AR models DX50 : KR, MX, AUS/RG80 models PARTS No. 4-231-580-0 s 4-231-580-2s -Abbreviation AUS : Australian model SP : Singapore model KR : Korea model PARTS No. MX : Mexican model AR : Argentina model
