Page 1

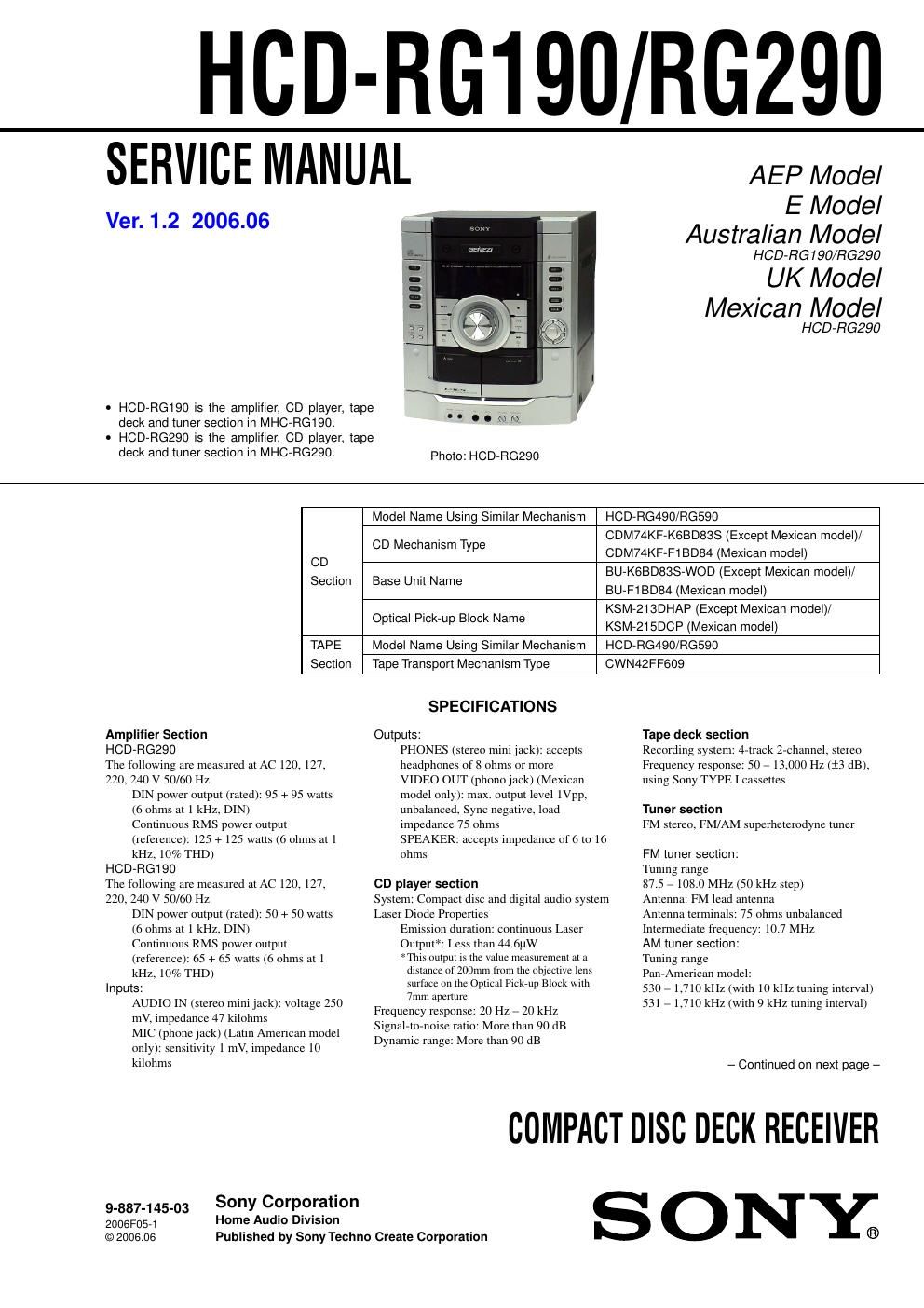

HCD-RG190/R6290

SERVICE MANUAL

Ver. 1.2 2006.06

- HCD-FIG190 is the amplifier, CD player, tape

deck and tuner section in MHC-FIG190.

arr/Ell

" 0.63.51

- HOD-R6290 is the amplifier, CD player, tape

deck and tuner section in MHC-RGZQO.

Photo: HCD-RG290

AEP Model
E Model

Australian Model
HCD-FIG190/RG290

UK Model

Mexican Model
HCD-FIGZQO

CD
Section

Model Name Using Similar Mechanism

HCD-RG490/RG590

CD Mechanism Type

CDM74KF-KSBD83S (Except Mexican model)/
CDM74KF-F1 BD84 (Mexican model)

Base Unit Name

BU-KSBDBBS-WOD (Except Mexican model)l
BU-FtBD84 (Mexican model)

Optical Pick-up Block Name

KSM-213DHAP (Except Mexican model)l
KSM-215DCP (Mexican model)

TAPE
Section

Model Name Using Similar Mechanism

HCD-RG490/RG590

Tape Transport Mechanism Type

CWN42FF609

Amplitier Section

HOD-RG290

The following are measured at AC 120, 127,

220, 240 V 50/60 Hz
DIN power output (rated): 95 + 95 watts
(6 ohms at 1 kHz, DIN)
Continuous RMS power output
(reference): 125 + 125 watts (6 ohms at 1
kHz, 10% THD)

HCD-RG190

The following are measured at AC 120, 127,

220, 240 V 50/60 Hz
DIN power output (rated): 50 + 50 watts
(6 ohms at 1 kHz, DIN)
Continuous RMS power output
(reference): 65 + 65 watts (6 ohms at 1
kHz, 10% THD)

Inputs:
AUDIO IN (stereo mini jack): Voltage 250
mV, impedance 47 kilohms
MIC (phone jack) (Latin American model
only): sensitivity 1 mV, impedance 10

kilohms
9.887445% Sony Corporation
2006F0571 Home Audio Division
© 2006.06

SPECIFICATIONS

Outputs:
PHONES (stereo minijack): accepts
headphones of 8 ohms or more
VIDEO OUT (phonojack) (Mexican
model only): max. output level 1Vpp,
unbalanced, Sync negative. load
impedance 75 ohms
SPEAKER: accepts impedance of 6 to 16
ohms

CD player section
System: Compact disc and digital audio system
Laser Diode Properties
Emission duration: continuous Laser
Outpur": Less than 44.6uW
+Thts output is the value measurement at a
distance of 200mm from the objective lens
surface on the Optical Pickrup Block with
7mm aperture.
Frequency response: 20 Hz - 20 kHz
Signal-to-noise ratio: More than 90 dB
Dynamic range: More than 90 dB

Tape deck section

Recording system: 4-track 2-channel, stereo
Frequency respons 50 - 13.000 Hz (i? dB).
using Sony TYPE I c ., tes

Tuner section
FM stereo, FMIAM superheterodyne tuner

FM tuner section:

Tuning range

87.5 - 108.0 MHz (50 kHz step)

Antenna: FM lead antenna

Antenna terminals: 75 ohms unbalanced
Intermediate frequency: 10.7 MHz

AM tuner section:

Tuning range

Pan-American model:

530 - 1,710 kHz (with 10 kHz tuning interval)
531 - 1,710 kHz (with 9 kHz tuning interval)

- Continued on next page -

COMPACT DISC DECK RECEIVER

Published by Sony Techno Create Corporation
