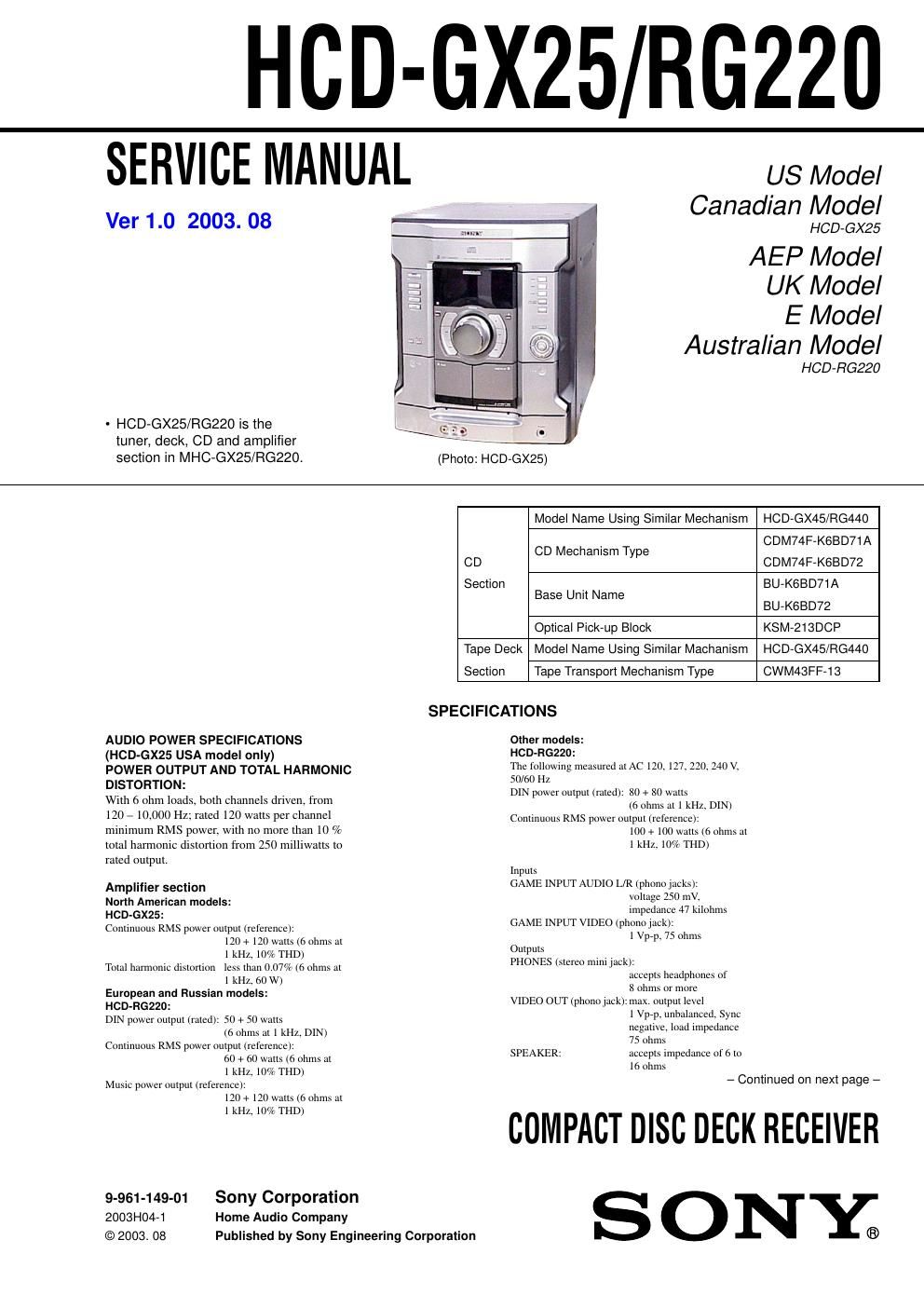

Sony hcd rg 220 service manual

Page 2

HCD-GtX25/R6220

CD player section
Syslem

Laser

Frequency response
Wavelength
Slgllalriosllolse ratio
Dynamic range

Tape deck section

Recording system
Frequency response

Tuner section

Compact disc and digital
audio system
Semiconductor laser
(7:780 nm)

Emission dllmllon:
continuotts

2 Hz , 20 kHz (:05 dB)
780 , 790 am

More than 90 dB

More than 90 dB

4rtl'ack Zechannel. stereo
50 , 11000 Hz (:3 (B),
using Sony TYPE I
cassettes

FM stereo, FM/AM sttperheterodyne tuner

FM tuner section
Tuning range
Russian models

Other models
Antenna

Antenna tertninals
Intermediate frequency

65:0 , 74.0 MHz
(There is no stereo effect)
875 71022.0an

87.5 7108.0 MHZ

FM lead antenna

75 ohms unbalanced

107 MHZ

Power consumption

USA model:
l-lCDerzs: 120 watts
European and Russian models:
HCDVRG220: 80 watts

035 watts (at the Power
Saving Mode)
Other models:

HCDVRGZZO: l 10 watts
Dimensions (vv/h/d) Approx. 230 x 325 x 407 mm
Mass

North American models:

l-lCDerzs: Approx. 85 kg

European and Russian models:

HCDVRG220: Approx. 8,3 kg

Other models:

HCDVRGZZO: Approx. 85 kg

Design and specific-01mm on» rub/ml m Lllllnge wit/mm
notice.

MODEL IDENTIFICATION

- BACK PANEL -

PARTS No.

AM tuner section
Tuning range
Palermerican models: 530 , 1710 kHz (with the Inning
interval set at 10 kHz)
531 , 1710 kHz (with the tuning
interval set at 9 kHz)
European, Russian. Middle Eastern and Philippine models:
531 , 1.502 kl-lz (with the tuning
interval set at 9 kHz)
530 , 1710 kHz (with the tuning
interval set at 10 kHz)
531 , 1.502 kHz (with the tuning
interval set at 9 kHz)
Antenna AM loop antenna
Antenna tertninals External antenna terminal
intermediate frequency 450 kHz

Olher models:

General

Power requirements

North American models: 120 v AC, 60 1-12
European and Russian models:

230 v AC, 50/60 Hz
230 , 240 V AC, 50/60 Hz
Argentine model: 220 v AC, 50/60 Hz
Mexican model: 127 v AC, 60 Hz

Saudi Arabian model: 120 , 127 V/220 v or
230 , 240 v Ac.

50/60 Hz

Adjustable with voltage
selector

220 v AC, 60 Hz

120 v, 220 V or 230 ,
240 v AC, 50/60 Hz
Adjustable Wilh Voltage
selector

Australian model:

Korean model:
Olher models:

SAFETY-RELATED COMPONENT WARNING !!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.

2

llllllllllllllllllllllllllllllllll DO
llllllllllllllllllllllllllllllllll : a

lllllllllll 5

MODEL PARTS No.
GX25: US, CND 4-244-697-01
RG220: EXCEPT EA 4-244-697-21
RGZZO: EA 4-244-697-51

' Abbreviation
CND : Canadian model
EA : Saudi Arabia model

ATTENTION AU COMPOSANT AYANT RAPPORT
A LA sécuanEl!

LES COMPOSANTS IDENTIFIES PAR UNE MAROUE A SUR LES
DIAGRAMMES SCHEMATIOUES ET LA LISTE DES PIECES
SONT CRITIQUES POUR LA SECURITE DE FONCTIONNEMENT.
NE REMPLACER CES COMPOSANTS QUE PAR DES PIECES
SONY DONT LES NUMEROS SONT DONNES DANS CE MANUEL
OU DANS LES SUPPLEMENTS PUBLIES PAR SONY.
