This is the 66 pages manual for sony hcd rg 121 sony audio.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony hcd rg 121 sony audio (Ocr-read)

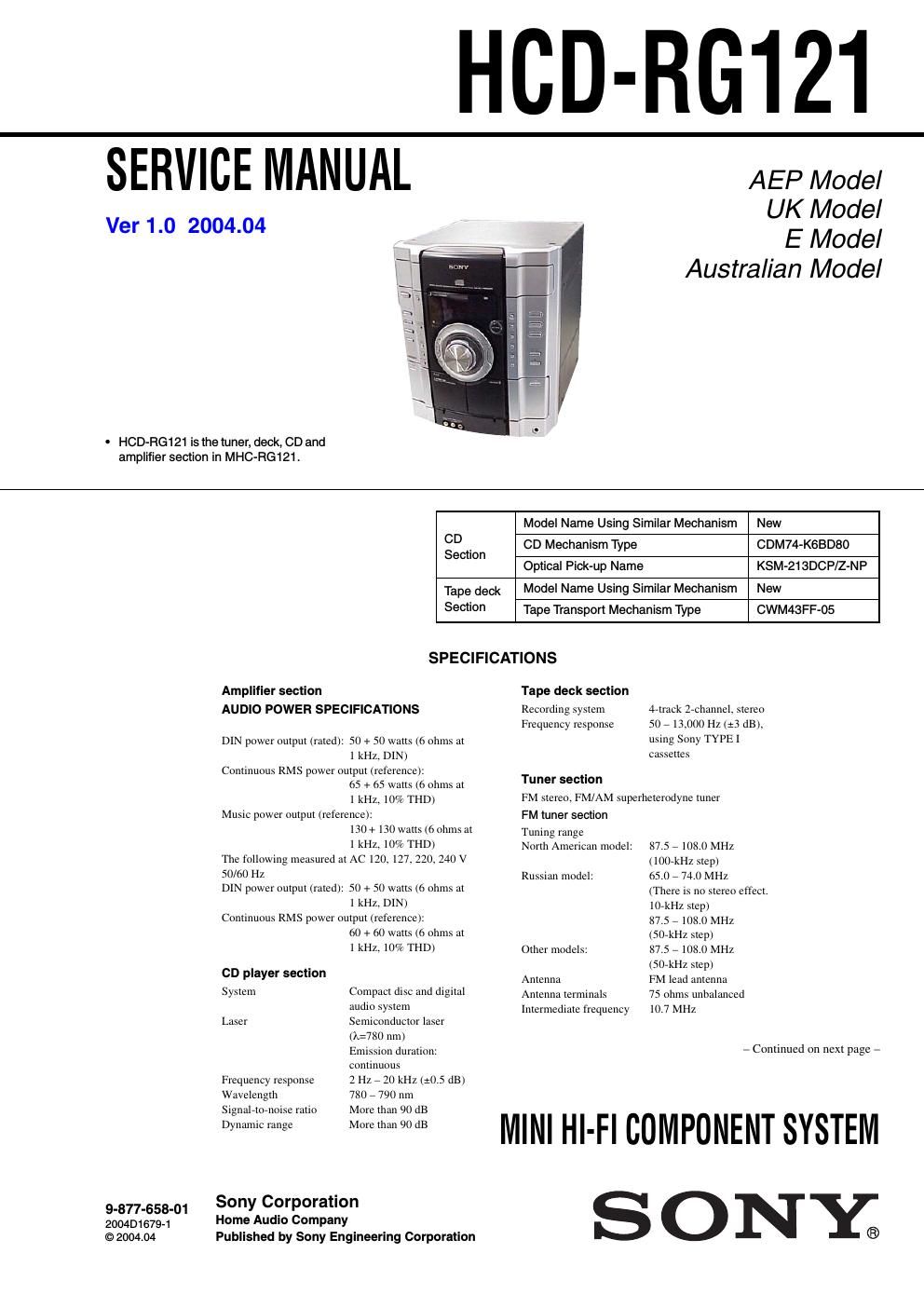

Page 1
2 HCD-RG121 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. General Power requirementsEuropean and Russian models: 110 watts 0.25 watts (at the Power Saving Mode) Other models: 110 watts Dimensions (w/h/d) incl. projecting parts and contro ls A mplifier/Tuner/Tape/CD section: Approx. 280 × 327 × 425 mm Mass European and Russian models: Approx. 8.5 kg Other models: Design and specifications are subject to change without notice.Approx. 8.5 kg AM tuner section Tuning rangePan-American models: 530 – 1,710 kHz (with the tuning interval set at 10 kHz) 531 – 1,710 kHz (with the tuning interval set at 9 kHz) European, Russian and Saudi Arabian models: 531 – 1,602 kHz (with th e tuning interval set at 9kHz) Other models: 530 – 1,710 kHz (with the tuning interval set at 10 kHz) 531 – 1,602 kHz (with the tuning interval set at 9 kHz) Antenna AM loop antennaAntenna terminals External antenna termina l I ntermediate frequency 450 kHz The release method of a CD disc tray LOCK function There is a disc lock function for the disc theft prevention for a demonstration at a shop front in this machine. Procedue: 1. Press the ?/1 button to turn the set on. 2. Press two buttons of x and Z (EJECT) simultaneously for five seconds. 3. The message LOCKED is displayed and the tray is locked. (Even if exiting from this mode, the tray is still locked.) 4. Press two buttons of x and Z (EJECT) simultaneously for five seconds again. 5.The message UNLOCKED is displayed and the tray is unlocked. 6. To exit from this mode, press the ?/1 button to turn the set off. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. Notes on chip component replacement -Never reuse a disconnected chip component. -Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing -Keep the temperature of soldering iron around 270˚C during repairing. -Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). -Be careful not to apply force on the conductor when soldering or unsoldering. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1.
Page 2
