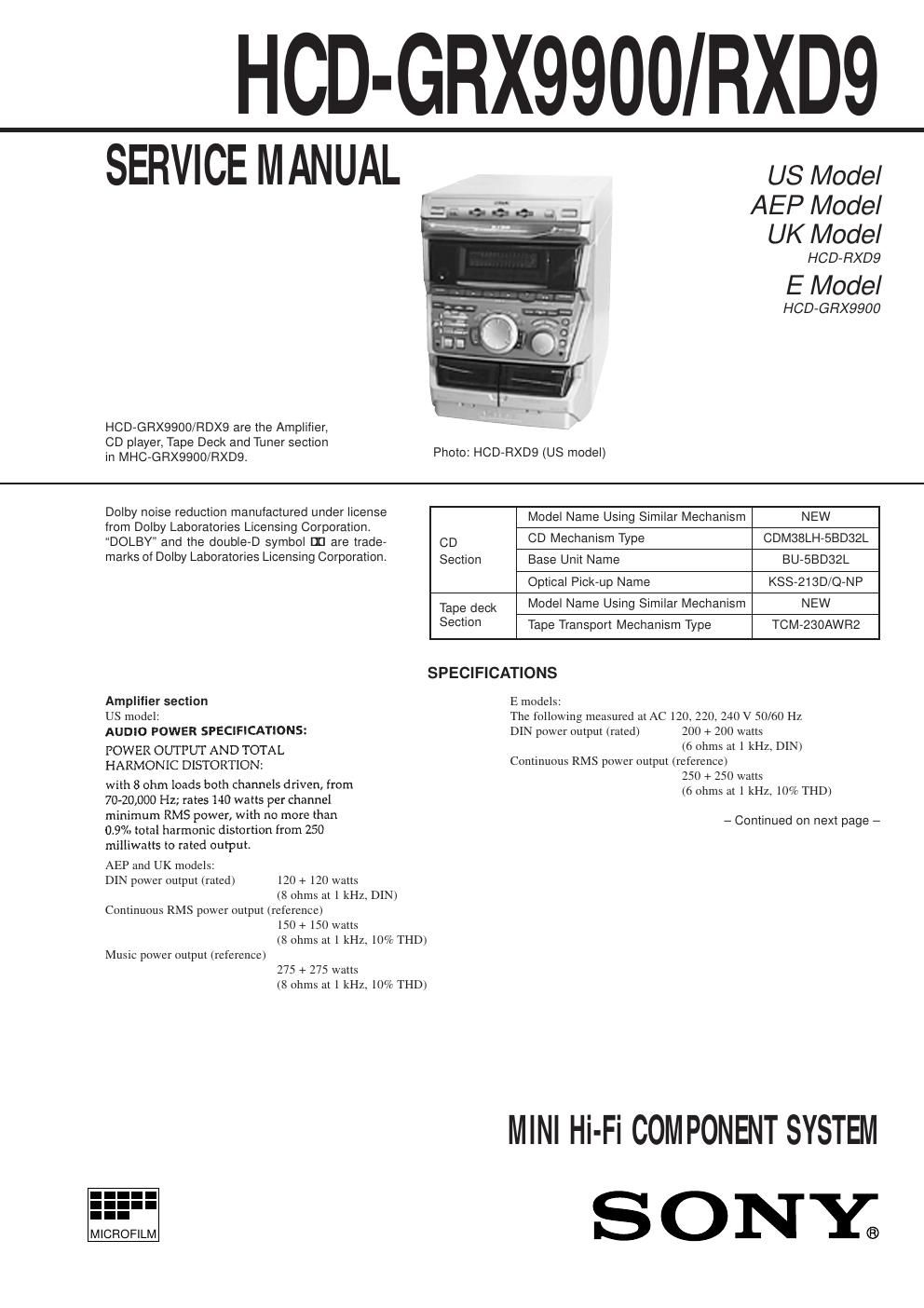

Sony hcd rdx 9 service manual
This is the 74 pages manual for sony hcd rdx 9 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony hcd rdx 9 service manual (Ocr-read)
Page 1
Ð 2 Ð Specifications (continued) Inputs MD/VIDEO (AUDIO) IN: voltage 450 mV/250mV, (phono jacks) impedance 47 kilohms MIX MIC: (phone jack) sensitivity 1 mV, impedance 10 kilohms Outputs MD OUT: voltage 250 mV, (phono jacks) impedance 1 kilohms PHONES: accepts headphones of 8 ohms (stereo phone jack) or more SPEAKER: E models: accepts impedance of 6 to 16 ohms Other models: accepts impedance of 8 to 16 ohms SUPER WOOFER (GRX9900/RXD9: US models): Voltage 1 V, impedance 1 kilohm CD player section System Compact disc and digital audio system Laser Semiconductor laser (l=780nm) Emission duration: continuous Laser output Max. 44.6 mW* *This output is the value measured at distance of 200 mm from the objective lens surface on the Optical Pick-up Block with 7 mm aperture. Frequency response 2 Hz - 20 kHz (±0.5 dB) Wavelength 780 -790 nm Signal-to-noise ratio More than 90 dB Dynamic range More than 90 dB CD OPTICAL DIGITAL OUT (Square optical connector jack, rear panel) Wavelength 600 nm Output Level -18 dBm Tape player section Recording system 4-track 2-channel stereo Frequency response 40 - 13,000 Hz (±3 dB), (DOLBY NR OFF) using Sony TYPE I cassette 40 - 14,000 Hz (±3 dB), using Sony TYPE II cassette Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner sectionTuning range 87.5 - 108.0 MHz Antenna FM lead antenna Antenna terminals 75 ohm unbalanced Intermediate frequency 10.7 MHz UKV tuner section (3 band (FM-AM-UKV) models only)Tuning range 65.0 - 74.0 MHz Stereo Plus AM tuner sectionTuning range 2 Band type: US model: 530 - 1,710 kHz (with the interval set at 10 kHz) 531 - 1,710 kHz (with the interval set at 9 kHz) AEP and UK models: 531 - 1,602 kHz (with the interval set at 9 kHz) Other models: 531 - 1,602 kHz (with the interval set at 9 kHz) 530 - 1,710 kHz (with the interval set at 10 kHz)3 Band type: Saudi Arabia model: MW: 531 - 1,602 kHz (with the interval set at 9 kHz) SW: 5.95 - 17.90 MHz (with the interval set at 5 kHz) Other models: MW: 531 - 1,602 kHz (with the interval set at 9 kHz) 530 - 1,710 kHz (with the interval set at 10 kHz) SW: 5.95 - 17.90 MHz (with the interval set at 5 kHz) Antenna AM loop antenna Antenna terminals External antenna terminal Intermediate frequency 450 kHz General Power requirements US model: 120 V AC, 60 Hz AEP and UK models: 230 V AC, 50/60 Hz Mexican model: 120 V AC, 50/60 Hz Other models: 120 V, 220 V, or 230 - 240 V AC, 50/60 Hz Adjustable with voltage selector Power consumption US model: 170 watts AEP and UK models: 180 watts Other models: 240 watts Dimensions (w/h/d) Approx. 280 ´ 360 ´ 395 mm (13 1/8 ´ 14 1/4 ´ 15 5/8 in.) Mass US model: Approx. 10.6 kg (23 lb 6 oz.) AEP and UK models: Approx. 10.8 kg Other models: Approx. 12.2 kg Supplied accessories: AM loop antenna (1) Remote Commander (1) Batteries (2) FM lead antenna (1) Speaker cords (2) Front speaker pads (8) Design and specifications are subject to change without notice. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY.
Page 2
