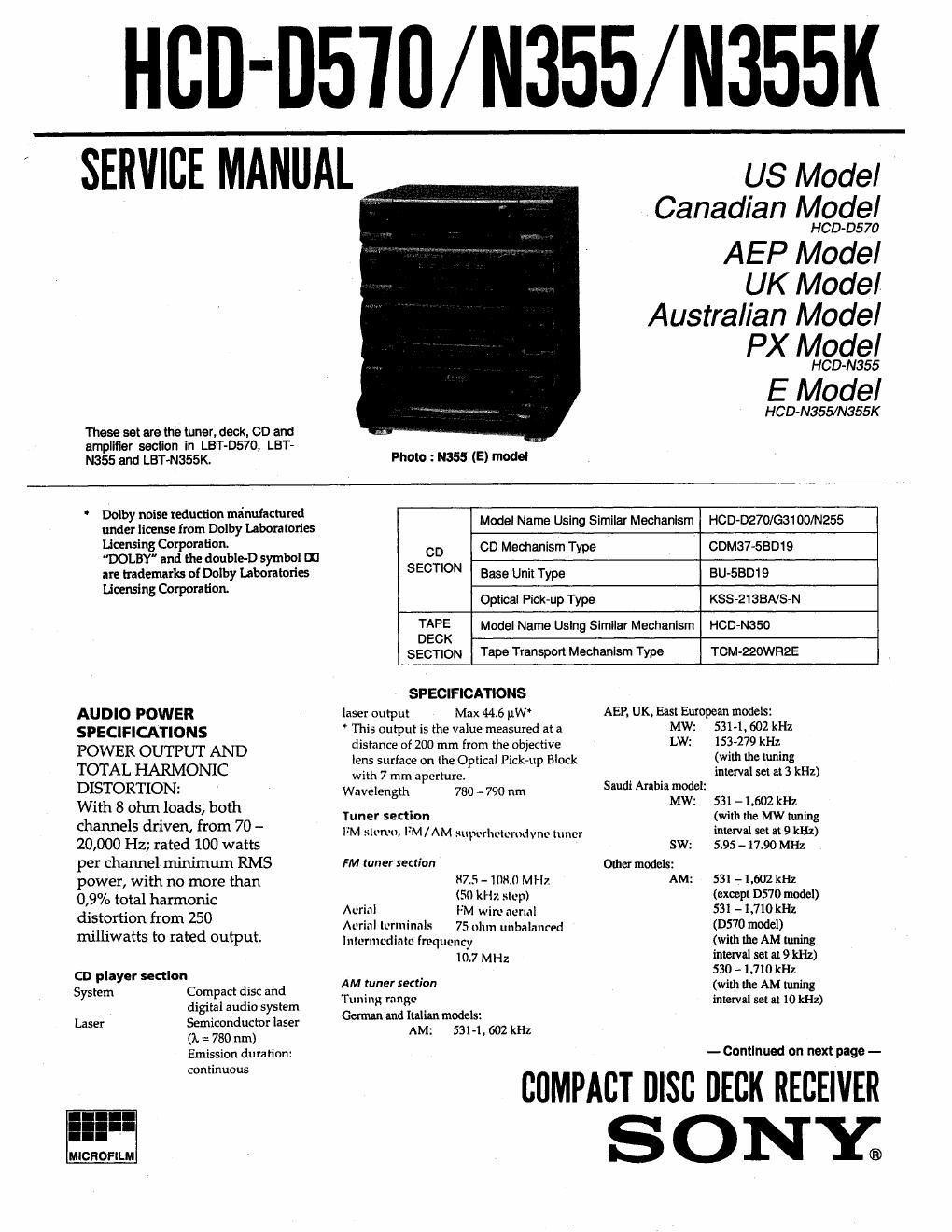

Page 1

HCD-D570/N355/N355K

SERVICE MANUAL

These set are the tuner, deck. CD and
amplifier section in LBT-D570, LBT-
N355 and LBT

Photo : N355 (E) model

US Model
Canadian Model

HOD-D5 70

AEP Model

UK Model
Australian Model
PX Model

HOD-N355

E Model

HOD-N355/N355K

Dolby noise reduction minufactured
under license from Dolby Laboratories
Licensing Corporation.

"DOLBY" and the double-D symbol i1]
are trademark of Dolby laboratories
Licensing Corporation.

AUDIO POWER
SPECIFICATIONS

POWER OUTPUT AND
TOTAL HARMONIC
DISTORITON:

With 8 ohm loads, both
channels driven, from 70 -
20,000 Hz; rated 100 watts
per channel minimum RMS
power, with no more than

0,9% total harmonic

distortion from 250

milliwatts to rated output.

CD player section

System Compact disc and

V digital audio system

Laser Semiconductor laser
(7» = 780 nm)
Emission duration:
continuous

ll!"
MICROFILM

Model Name Using Similar Mechanism HCD-DZ70/GS100/N255

CD CD Mechanism Type

CDM37-SBD19

SECTION Base Unit Type

BU-SBD19

Optical Pickup Type

KSS~2138NS-N

TAPE Model Name Using Similar Mechanism HCD-NaSO

DECK
SECTION Tape Transport Mechanism Type TOM-220WR2E
SPECIFICATIONS
laser Output Max 446 pW AEP, UK, East European models:

" This output is the value measured at a
distance of 200 mm from the objective
lens surface on the Optical Pickup Block
with 7 mm aperture.

Wavelength 780 - 790 nm

Tuner section
lvM store". IM/ AM superhutorwivno tuner

FM tuner section

87.5 - 108.0 MHZ

(50 kHz step)
Aerial FM wire aerial
Aerial terminals 75 ohm unbalanced
In termcdinto frequency

107 MHz

AM tuner section
Tuning range
German and italian models:
AM: 531-1. 602 kHz

MW: 531-1. 602 kHz

LW: 153-279 kHz
(with the tuning
interval set at 3 kHz)

Saudi Arabia model:

MW: 531 - 1,602 kHz
(with the MW tuning
interval set at 9 kHz)

SW: 5.95 - 17.90 MHZ

Other models:

AM: 531 - 1,602 kHz
(except D570 model)
531 - 1.710 kHz
(D570 model)
(with the AM tuning
interval set at 9 kHz)
530 - 1,710 kHz
(with the AM tuning
interval set at 10 kHz)

- Continued on next page -

COMPACT DISC DECK RECEIVER

SONY;
