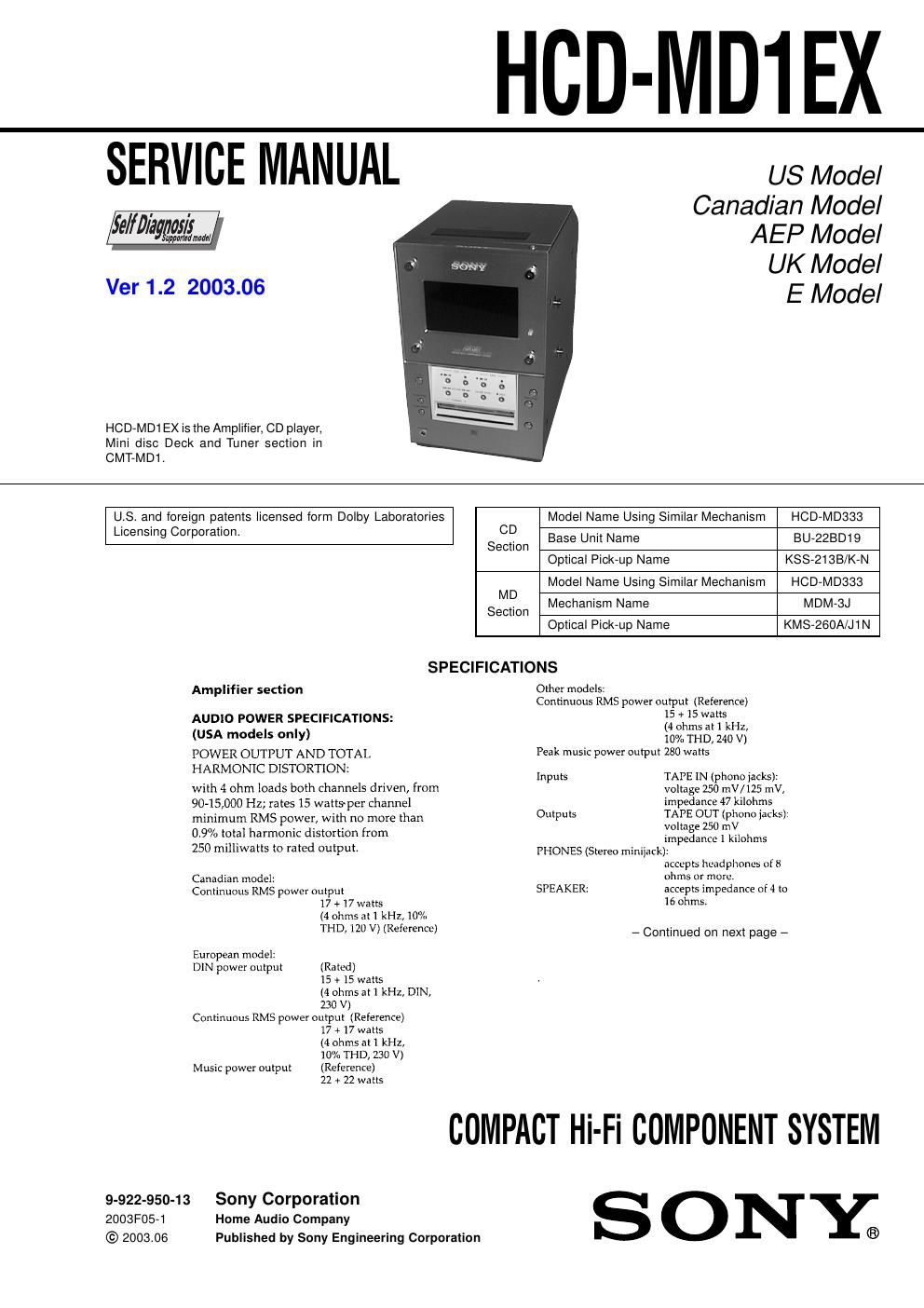

Page 1
Ð 2 Ð
Page 2
Ð 3 Ð SELF-DIAGNOSIS FUNCTION The self-diagnosis function consists of error codes for users which are displayed automatically when errors occur, and error codes which show the error history in the test mode during servicing. For details on how to view error codes for users, refer to the following box in the instruction manual. For details on how to perform checks during servicing, refer to the following ÒProcedure for Using the Self-Diagnosis Function (Error History Display Mode)Ó. Procedure for Using the Self-Diagnosis Function (Error History Display Mode) Note:Perform the self-diagnosis function in the Òerror history display modeÓ in the test mode. The following describes the least required steps. Be careful not to enter other modes by mistake. If other modes are set accidentally, press the ^ (CD) button to exit that mode. 1. With the power off, press the =0 button while pressing the [VOLUMEÐ] button. 2. Press the [VOLUME+/Ð] button to display ÒERR DP MODEÓ. 3. Pressing the p (CD) button sets the error history mode and displays Òtotal recÓ. 4. Select the contents to be displayed or executed with pressing the [VOLUME+/Ð] button. 5. Pressing the 6 (CD) button displays or executes the contents selected. 6. Pressing the 6 (CD) button another time returns to step 4. 7. Pressing the ^ (CD) button displays ÒERR DP MODEÓ and exits the error history mode. 8. To exit the test mode, press the p (MD) button while pressing the [FUNCTION] button. The unit sets into the STANDBY state, and the test mode ends.
