Extracted text from sony hcd mc 3 av service manual (Ocr-read)

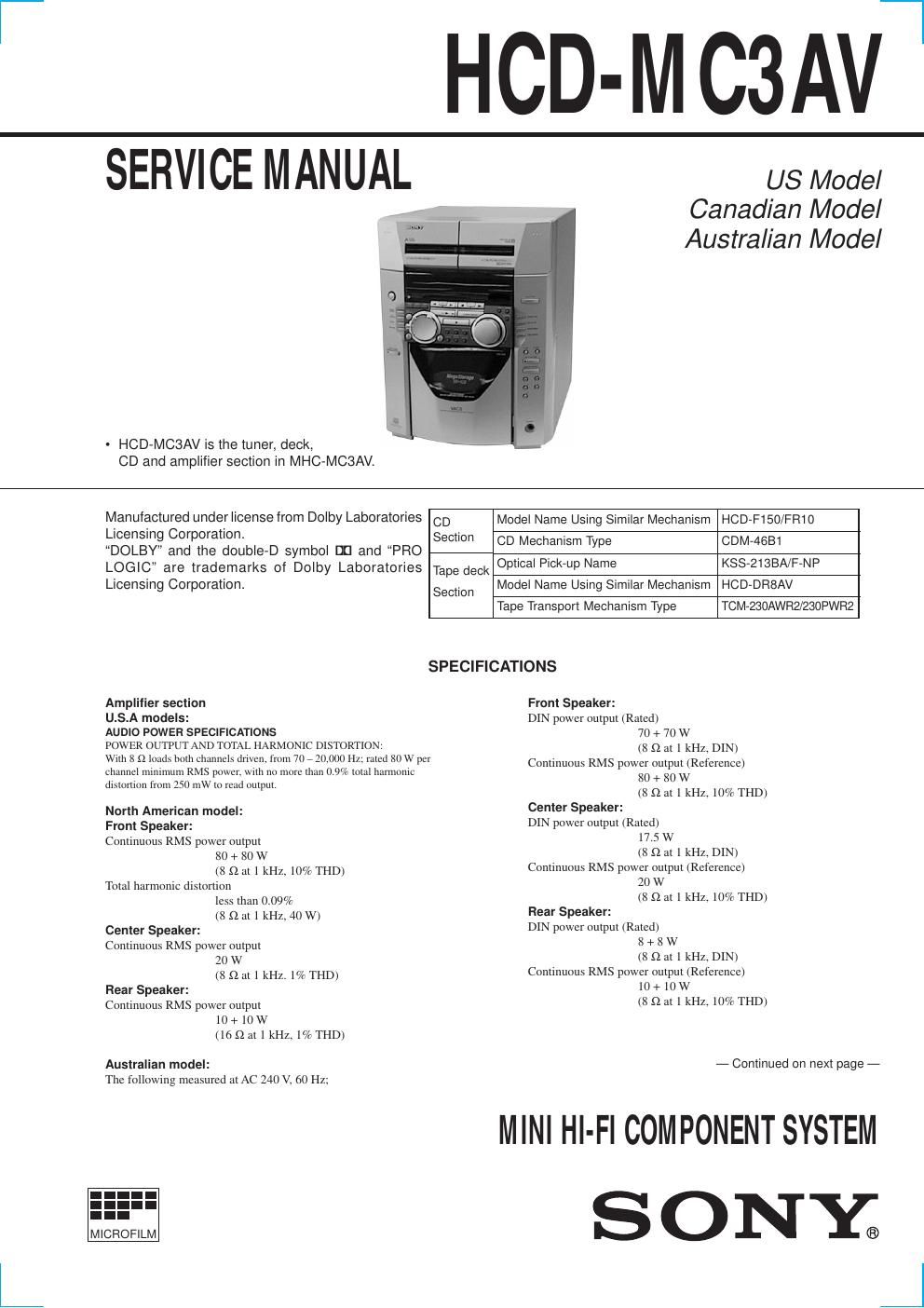

Page 1
Ñ 2 Ñ The following measured at AC 220 V, 60 Hz; Front Speaker: DIN power output (Rated) 60 + 60 W (8 W at 1 kHz, DIN) Continuous RMS power output (Reference) 70 + 70 W (8 W at 1 kHz, 10% THD) Center Speaker: DIN power output (Rated) 15 W (8 W at 1 kHz, DIN) Continuous RMS power output (Reference) 17.5 watts (8 W at 1 kHz, 10% THD) Rear Speaker: DIN power output (Rated) 7 + 7 W (8 W at 1 kHz, DIN) Continuous RMS power output (Reference) 8.5 + 8.5 W (8 W at 1 kHz, 10% THD) Inputs VIDEO/MD IN (phono jack): voltage 250 mV/450 mV, impedance 47 kW Outputs VIDEO/MD OUT (phono jack): voltage 250 mV, impedance 1 kW PHONES (stereo phone jacks): accepts headphones of 8 W or more SPEAKER: accepts impedance of 8 to 16 W REAR SPEAKER: accepts impedance of 16 W CENTER SPEAKER: accepts impedance of 8 W SUPER WOOFER: voltage 1 V, impedance 1 kW CD player section System Compact disc and digital audio system Laser Semiconductor laser (l =780 mm) Emission duration: continuous Laser output Max. 44.6 µW* * This output is the value measured at a distance of 200 mm from the objective lens surface on the Optical Pick-up Block with 7 mm aperture. Frequency response 2 Hz Ð 20 kHz (± 0.5 dB) Wavelength 780 Ð 790 nm Signal-to-noise ratio More than 90 dB Dynamic range More than 90 dB CD OPTICAL DIGITAL OUT (Square optical connector jack, rear panel) Wave length 600 nm Output level Ð18 dBmTape player section Recording system 4-track 2-channel stereo Frequency response (DOLBY NR OFF) 40 Ð 13,000 Hz (± 3 dB), using Sony TYPE I cassette 40 Ð 14,000 Hz (± 3 dB), using Sony TYPE II cassette Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner section Tuning range 87.5 Ð 108.0 MHz Antenna FM lead antenna Antenna terminals 75 W unbalanced Intermediate frequency 10.7 MHz AM tuner section Tuning range 530 Ð 1,710 kHz (with the interval set at 10 kHz) 531 Ð 1,710 kHz (with the interval set at 9 kHz) Antenna AM loop antenna Antenna terminals External antenna terminal Intermediate frequency 450 kHz General Power requirements North American model: 120 V AC, 60 Hz Australian model: 220 - 240 V AC, 50/60 Hz Power consumption U.S.A models: 250 W Canadian models: 250 VA Australian models: 250 W Dimensions (w/h/d) Approx. 280 ´ 373 ´ 437 mm (11 1/8 ´ 14 3/4 ´ 17 1/4 in) Mass Approx. 12 kg (26 lbs. 7 oz) Supplied accessories: AM loop antenna (1) Remote RM-SF250AV (1) Batteries (2) FM lead antenna (1) Speaker cords (5) Front speaker pads (8) Center speaker pads (4) Design and specifications are subject to change without notice. For customers in Canada(For MHC-MC3AV) Use only the supplied SS-SR50 rear surround speaker for connection to the REAR SPEAKER connector, the supplied SS-CN50 center surround speaker for connection to the CENTER SPEAKER connector on the MHC-MC3AV.
Page 2
SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. ATTENTION AU COMPOSANT AYANT RAPPORT Ë LA SƒCURITƒ! LES COMPOSANTS IDENTIFƒS PAR UNE MARQUE ! SUR LES DIAGRAMMES SCHƒMATIQUES ET LA LISTE DES PIéCES SONT CRITIQUES POUR LA SƒCURITƒ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIéSES SONY DONT LES NUMƒROS SONT DONNƒS DANS CE MANUEL OU DANS LES SUPPƒMENTS PUBLIƒS PAR SONY. SAFETY CHECK-OUT (US model only) After correcting the original service problem, perform the following safety checks before releasing the set to the customer: Check the antenna terminals, metal trim, ÒmetallizedÓ knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microampers). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturersÕ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The ÒlimitÓ indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) Earth GroundAC voltmeter (0.75V) 1.5k ½ 0.15 µF Fig. A. Using an AC voltmeter to check AC leakage. To Exposed Metal Parts on Set Ñ 3 Ñ
