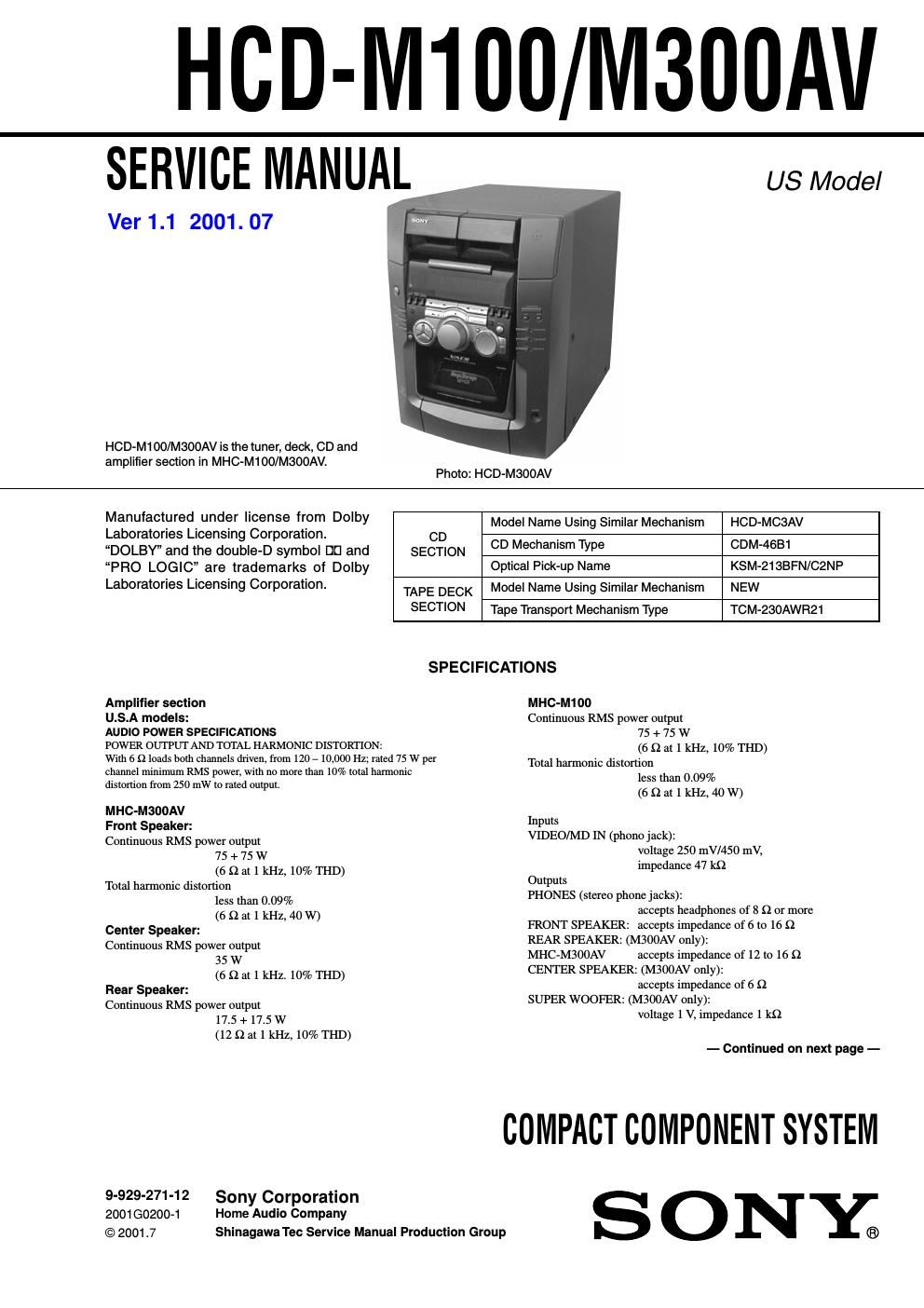

Sony hcd m 100 m300av

Page 1

2 CD player section System Compact disc and digital audio system Laser Semiconductor laser (λ =780 mm) Emission duration: continuous Laser output Max. 44.6 µW* * This output is the value measured at a distance of 200 mm from the objective lens surface on the Optical Pick-up Block with 7 mm aperture. Frequency response 2 Hz – 20 kHz (± 0.5 dB) Wavelength 780 – 790 nm Signal-to-noise ratio More than 90 dB Dynamic range More than 90 dB CD OPTICAL DIGITAL OUT (Square optical connector jack, rear panel) Wave length 600 nm Output level–18 dBm Tape player section Recording system 4-track 2-channel stereo Frequency response 40 – 13,000 Hz (± 3 dB), using Sony TYPE I cassette Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner section Tuning range 87.5 – 108.0 MHz Antenna FM lead antenna Antenna terminals 75 Ω unbalanced Intermediate frequency 10.7 MHzAM tuner section Tuning range 530 – 1,710 kHz (with the interval set at 10 kHz) 531 – 1,710 kHz (with the interval set at 9 kHz) Antenna AM loop antenna Antenna terminals External antenna terminal Intermediate frequency 450 kHz General Power requirements 120 V AC, 60 Hz Power consumption MHC-M300AV: 190 W MHC-M100: 150 W Dimensions (w/h/d) Approx. 280 × 373 × 468 mm Mass MHC-M300AV: Approx. 10.9 kg MHC-M100: Approx. 10.5 kg Supplied accessories: AM loop antenna (1) Remote commander (1) Batteries (2) FM lead antenna (1) Speaker cords (for MHC-M300AV only) (2) Center speaker pads (for MHC-M300AV only) (4) Design and specifications are subject to change without notice.
