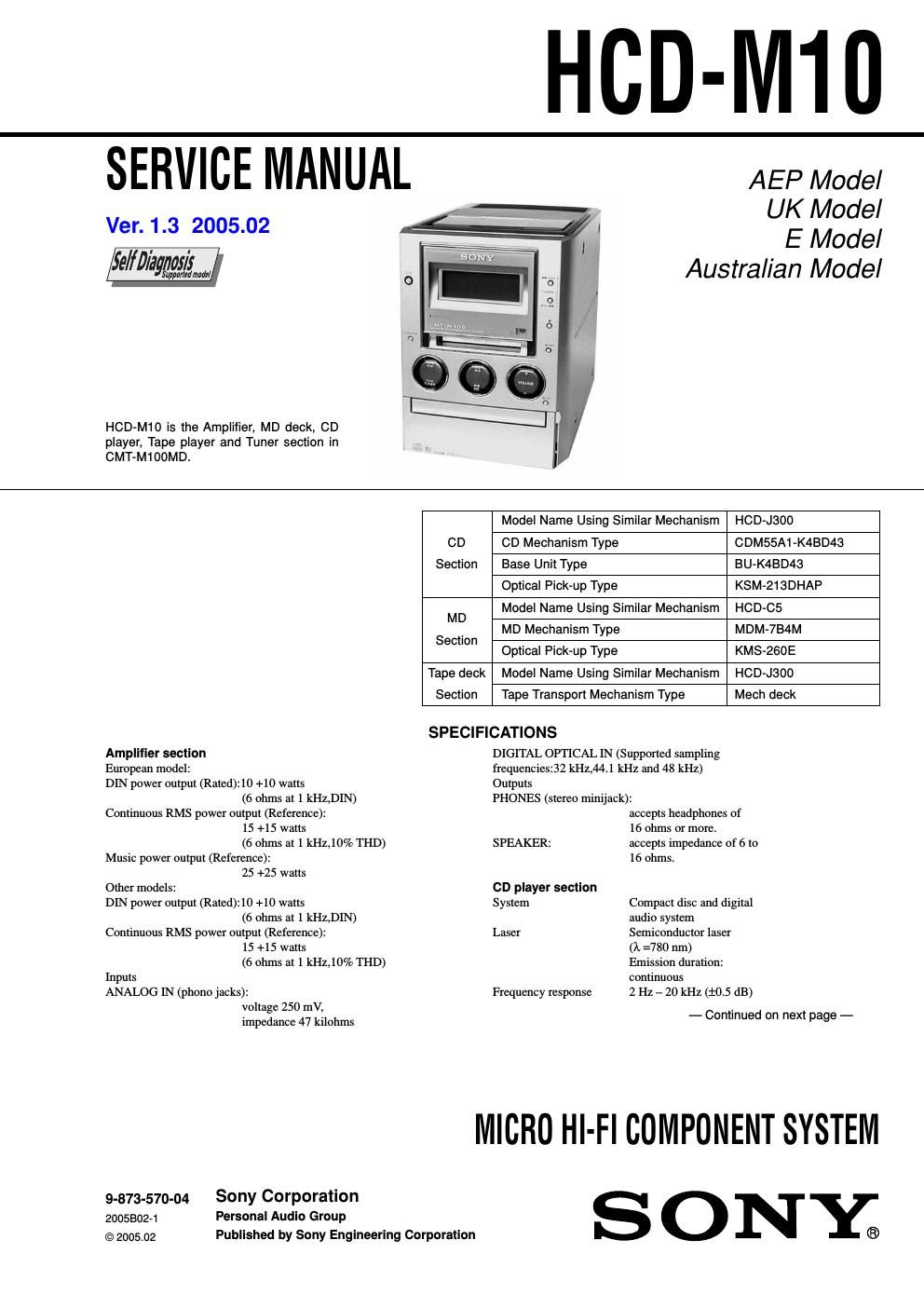

Sony hcd m 10 service manual

Page 1

2 HCD-M10 MD deck section System MiniDisc digital audio system Laser Semiconductor laser (λ =780 nm) Emission duration: continuous Sampling frequency 44.1 kHz Frequency response 5 Hz – 20 kHz (±0.5 dB) Tape deck section Recording system 4-track 2-channel stereo Frequency response 50 – 13,000 Hz (±3 dB), using Sony TYPE I cassettes Tuner section FM stereo,FM/AM superheterodyne tuner FM tuner section Tuning range 87.5 – 108.0 MHz (50 kHz step) Aerial FM lead aerial Aerial terminals 75 ohms unbalanced Intermediate frequency 10.7 MHz AM tuner section Tuning range European model: 531 – 1,602 kHz (with the interval set at 9 kHz) Other models: 531 – 1,602 kHz (with the interval set at 9 kHz) 530 – 1,710 kHz (with the interval set at 10 kHz) Aerial AM loop aerial External aerial terminals Intermediate frequency 450 kHz General Power requirements European model: 230 V AC,50/60 Hz Other models: 220 – 240 V AC,, 50/60 Hz Power consumption European model: 55 watts 0.5 watts (at the Power Saving mode) Other models: 55 watts Dimensions (w/h/d)incl.projecting parts and controls Approx.159 x 216.5 x 330 mm Mass Approx.4.9 kg Design and specifications are subject to change without notice.
