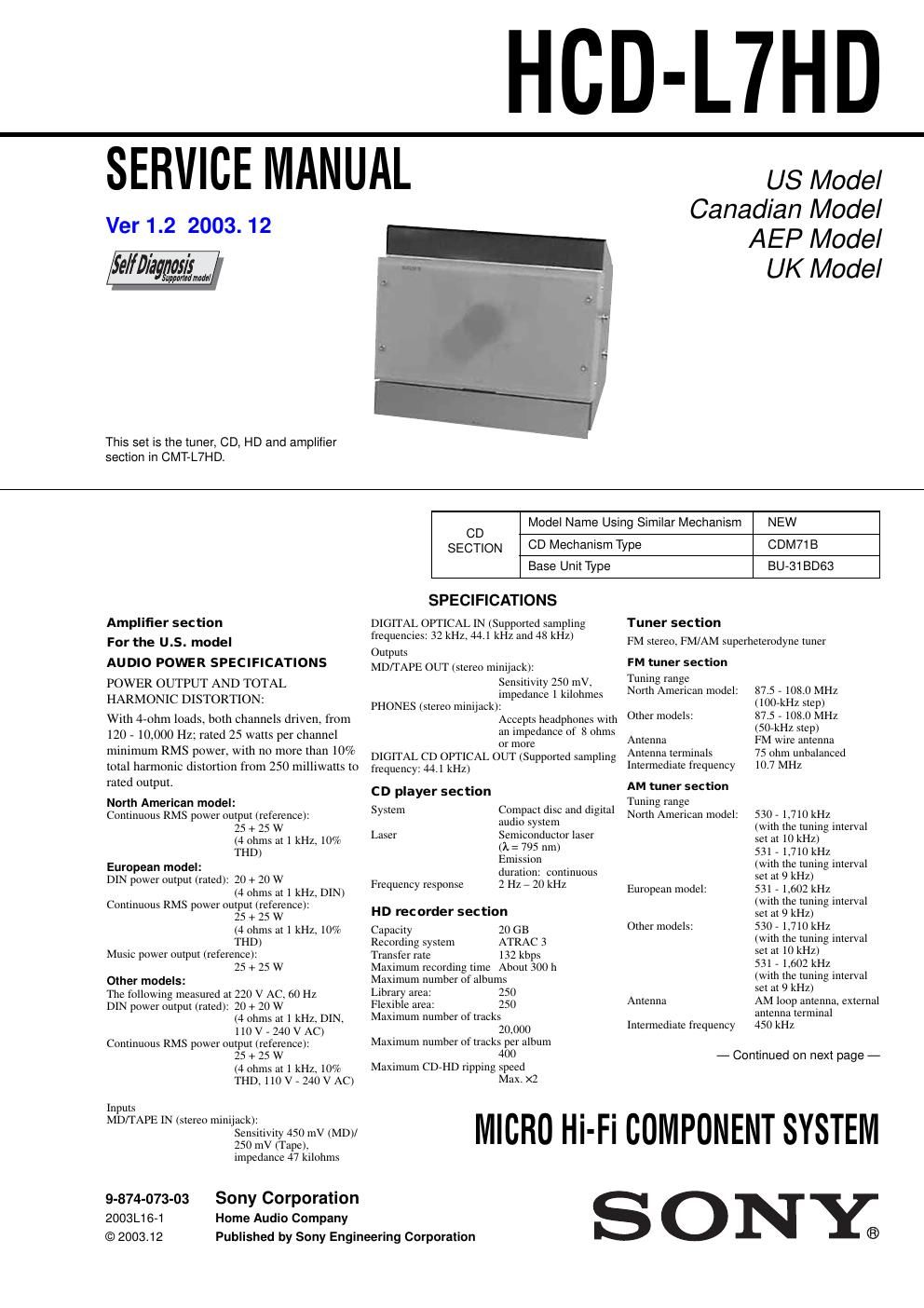

Page 1
2 HCD-L7HD General Power requirements North American model: 120 V AC, 60 Hz European model: 230 V AC, 50/60 Hz Other models: 110 - 240 V AC , 50/60 Hz Power consumption European model: See the nameplate 0.2 W (at the Power Saving Mode) Other models: See the nameplate Dimensions (w/h/d) Approx. 293 × 246 × 131 mm incl. projecting parts and controls Mass Approx. 4.3 kg Design and specifications are subject to change without notice. Self-diagnosis display Messages One of the following messages may appear or flash in the display during operations. CD Complete! CD editing (Disc Memo) finished normally. File Full There are already 100 disc titles stored in the system. Initialize The system is being initialized. You cannot load a CD during this time. Wait until Initialize disappears from the display. No Disc There is no disc in the CD player. -OVER- You have reached the end of the CD while pressing and holding down M during playing pause. Push STOP! You pressed PLAY MODE on the remote during playback. You pressed STORAGE MODE during playback. You pressed STORAGE MODE during manual recording of a CD. Step Full! You tried to program 26 tracks (steps) or more. HD Already Done You tried to perform High-Speed Synchro Storage for a CD that has already been completely recorded. Auto Cut The system is pausing the recording because silence continued for 30 seconds or more during digital recording. Blank Disc There is no track on the HD.
Page 2
3 HCD-L7HD Drive Error Consult your Sony dealer or local authorized Sony service facility. Drive Full! Recording tracks is not possible because there is not enough recordable space on the HD or the maximum number of recordable tracks has been reached. Erasing The system is erasing data from the HD. Do not disconnect the power cord. Format Error Consult your Sony dealer or local authorized Sony service facility. Impossible You tried to make an impossible editing or recording operation. Library Making The system is recording data to the HD. Name Full! The naming capacity of the HD has reached its limit (about 127 characters). No Name The album or track has not been labelled. No Signal The system has detected a silent portion during recording. Not Found No matches were found for Keyword Search. Please Wait You tried to perform High-Speed Synchro Storage while the system was collating data between the CD and the HD. You tried to perform High-Speed Synchro Storage while the system was preparing for Auto Storage and High-Speed Synchro Storage. Push STOP! You pressed PLAY MODE on the remote during playback. You pressed SEARCH on the remote during playback. Rec Error Proper recording is not possible. – Rehearsal – The HD is playing the specified dividing point for confirmation during the Divide function. The HD is playing the specified Highlight position for confirmation during the Highlight Play function. REMOTE The system is being connected to your computer.* Retry The system is retrying reading data from the CD during High-Speed Synchro Storage. Smart Space The signal was input again after silence continued for 3 or more but less than 30 seconds during digital recording. STORAGE NOW You tried to turn off the system while the system was storing data to the HD. TOC Reading The system is reading data from the HD. Track End You have reached the end of the track while adjusting the dividing point during the Divide function. Track Full! Recording tracks is not possible because there are 400 tracks in the album. Select another album for recording. Timer OFF TIME NG! The stopping time is the same as the starting time in the Daily Timer operation. OVERLAP! The Daily Timer or timer-recording setting that you attempted to make partially or wholly coincides with another setting. *If REMOTE appears under other circumstances, turn off the system, then turn on it again. Cannot Copy You tried to play a CD with a format that the system does not support, such as a CD-ROM. The sound source is a copy of commercially available music software. Cannot Edit You tried to edit in Shuffle Play, or you tried to register a track to a playlist that already contains 400 tracks. Cannot Play The system cannot play the track because of damage to the audio data. Cannot Rec You tried to record to the HD with HD selected as the sound source. You tried to perform manual recording from the CD with AUTO selected as the storage mode. You pressed REC with AUTO selected as the storage mode. You tried to record a CD to the HD without loading the CD. Cannot STORAGE You tried to record to the HD with less than 131 recordable tracks remaining on the HD. You tried to record to the HD with less than 240 minutes of recordable time remaining on the HD. You tried to perform High-Speed Synchro Storage with no blank album in the Library area. Check OPT-IN A moments lighting is due to the signals of the digital program being recorded. This does not affect the recorded material. While recording from a digital component connected through the DIGITAL OPTICAL IN jack, the digital connecting cable was unplugged or the digital component turned off. Complete! The editing operation of the HD is completed. The system is copying a title or artist name. Copying The system is copying the text data.
